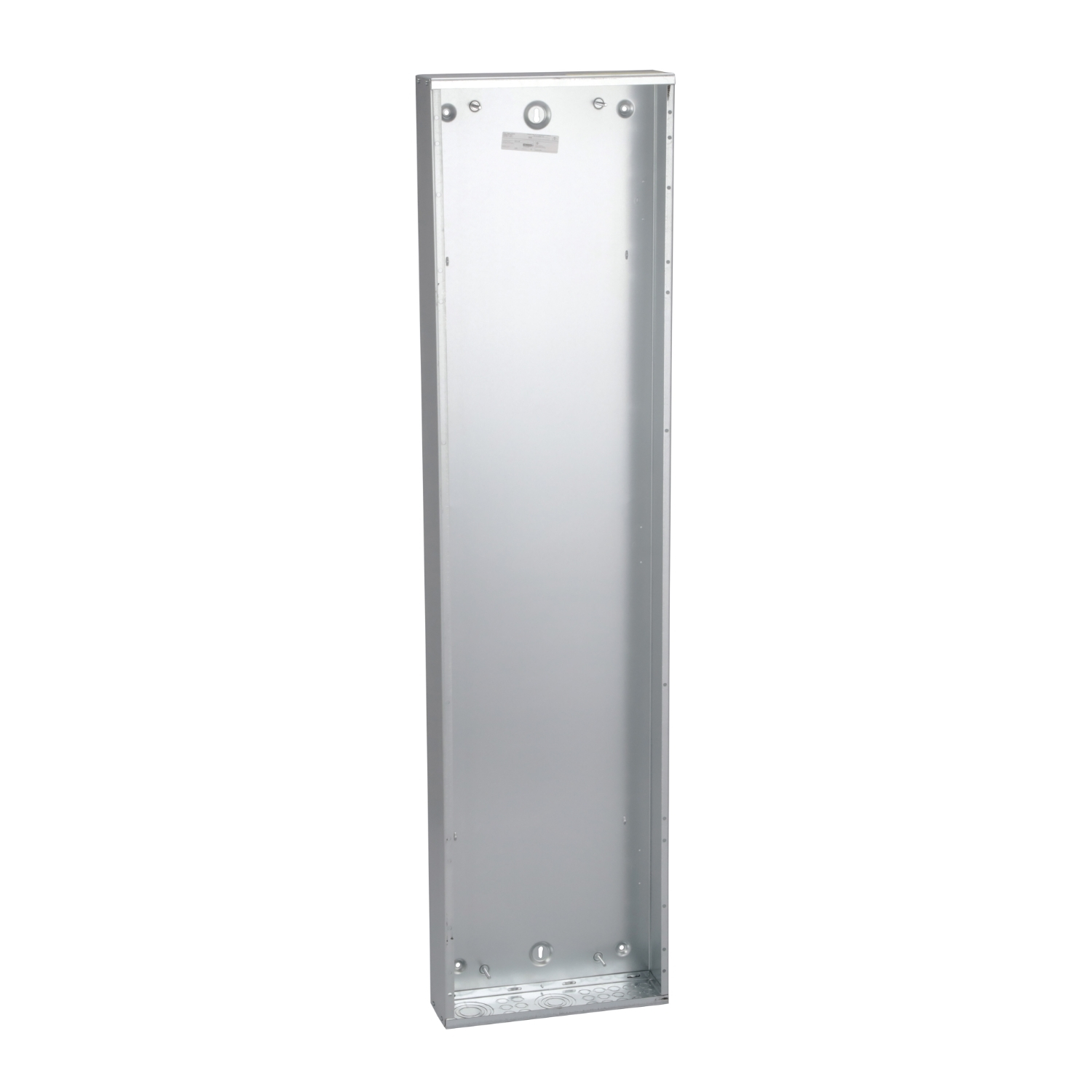

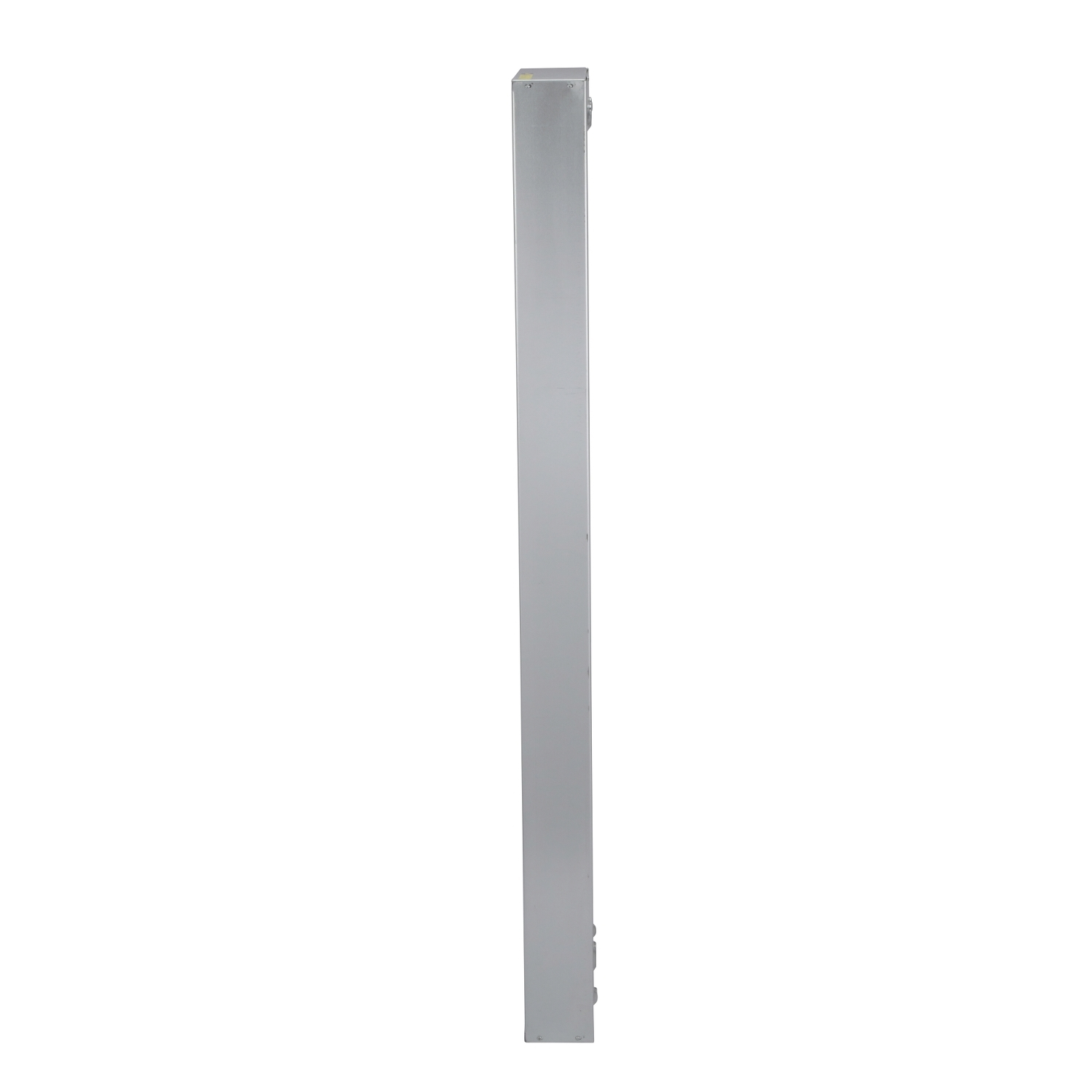

Square D MH80 20 x 5.75 x 80 Inch NEMA 1 Panelboard Enclosure

Product Description

The Square D MH80 panelboard enclosure is a versatile solution compatible with NQ and NF Panelboards. It features a wide selection of circuit breakers, accessories, and ready to install kits. The enclosure box is rated as a type 1 with dimensions of 20 x 80 x 5.75 inches. Suitable for use as service equipment and is UL listed and CSA certified by UL.

• Versatile panelboards
• Wide selection of circuit breakers, accessories, and ready to install kits
• 200% rated neutrals for nonlinear loads

Product Highlights

The Square D MH80 panelboard enclosure is ideal for various electrical installations, ensuring safety and reliability with its robust design and UL/CSA certifications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MH80
• Country of Origin: United States

Technical Specifications

• Catalog Number: MH80
• Type: Enclosure
• Brand: Square D
• Depth: 5.75 Inch
• Width: 20 in
• Height: 80 Inch
• Voltage: 240 Volt
• Material: Steel
• Enclosure: 1
• NEMA Size: 1
• Sub Brand: NQ / NF
• Applications: PANELBOARD ENCLOSURE
• Certifications: CULus
• CA Prop65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Country of Origin: USA
• Enclosure Material: Steel
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Panelboard Type: Panelboard Box
• UPC: 785901083337
• GTIN: 00785901083337
• Item Type: Enclosure
• Enclosure Type: Type 1
• Suitable for: Use as service equipment
• Interior Type: 72 Circuit 400 Ampere NQ Series Main Lug Interior, 84 Circuit 400 Ampere NQ Series Main Circuit Breaker Interior
• Nema Degree Of Protection: NEMA 1
• Product Or Component Type: enclosure
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: No
• Environmental Disclosure: ENVPEP1404010EN
• Packaging Without Single Use Plastic: No
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: N/A
• Take-Back: No
• Eu Rohs Directive: Compliant with Exemptions
• Product Certifications: cULus
• Features: Mercury Free
• Standards: cULus
