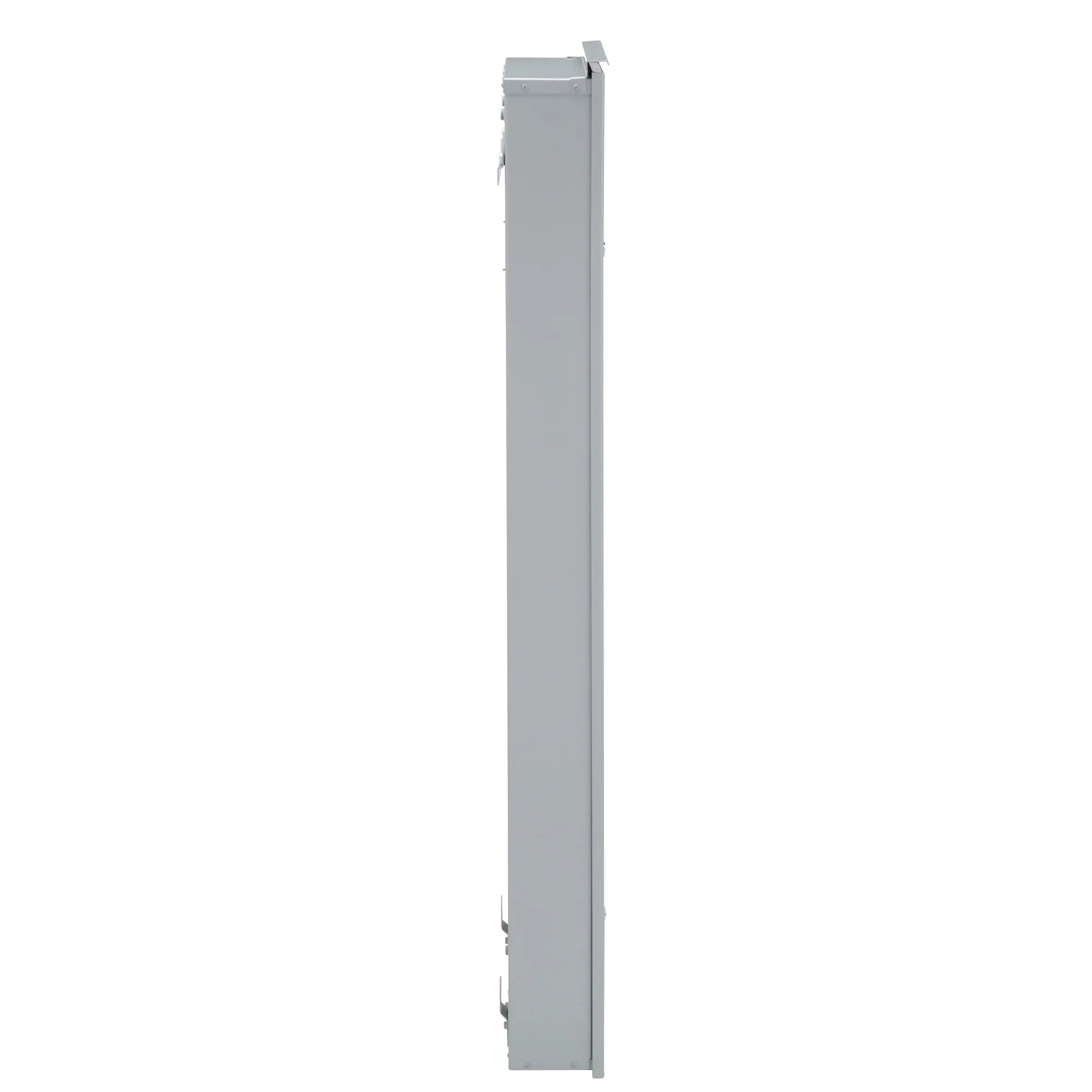

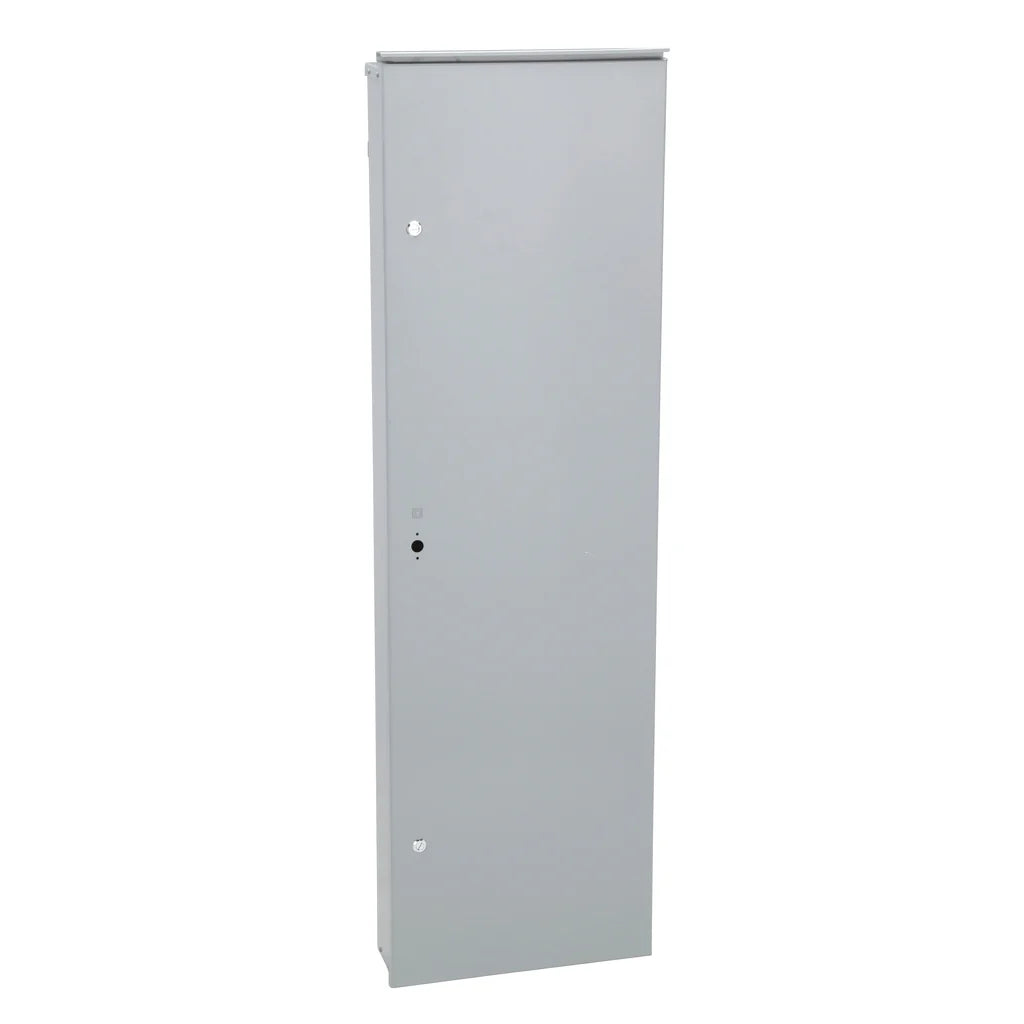

Square D MH68WP Square D MH68WP 20 x 6.5 x 68 Inch NEMA 3R/12 Panelboard Enclosure

Product Description

The Square D MH68WP is a NEMA rated panelboard enclosure with dimensions of twenty inches in width, six point five inches in depth, and sixty-eight inches in height. This enclosure is ideal for use with NQ and NF panelboards and is designed to meet the demands of various applications in power distribution setups. The box supports both surface mounting options and convertible feeding from the top or bottom, making it highly versatile for installation.

• UL listed and CSA certified for safety and compliance.
• Suitable for service equipment applications with a robust construction.
• Provides a 200% rated neutral for nonlinear loads.

Product Highlights

This enclosure box is made with high-quality steel and is rated as NEMA 3R/5/12, suitable for both indoor and outdoor environments. Its construction allows for efficient heat dissipation and durability under operational stresses.

Product Information

Standard Information

• Catalog Number: MH68WP
• Manufacturer: Schneider Electric

Technical Specifications

• Dimensions: 20 inches W x 68 inches H x 6.5 inches D
• Material: Steel
• Voltage Rating: 240 Volt
• Mounting Type: Surface
• Enclosure Type: NEMA 3R/5/12
• Weight: 110 pounds
• Warranty: 18 months
• Country of Origin: USA
