Square D MH62BE 20 x 5.75 x 62 Inch NEMA 1 Panelboard Enclosure

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: MH62BE
Availability: Out Of Stock
$46.77
$46.77
LTL Delivery

This product weighs 60 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

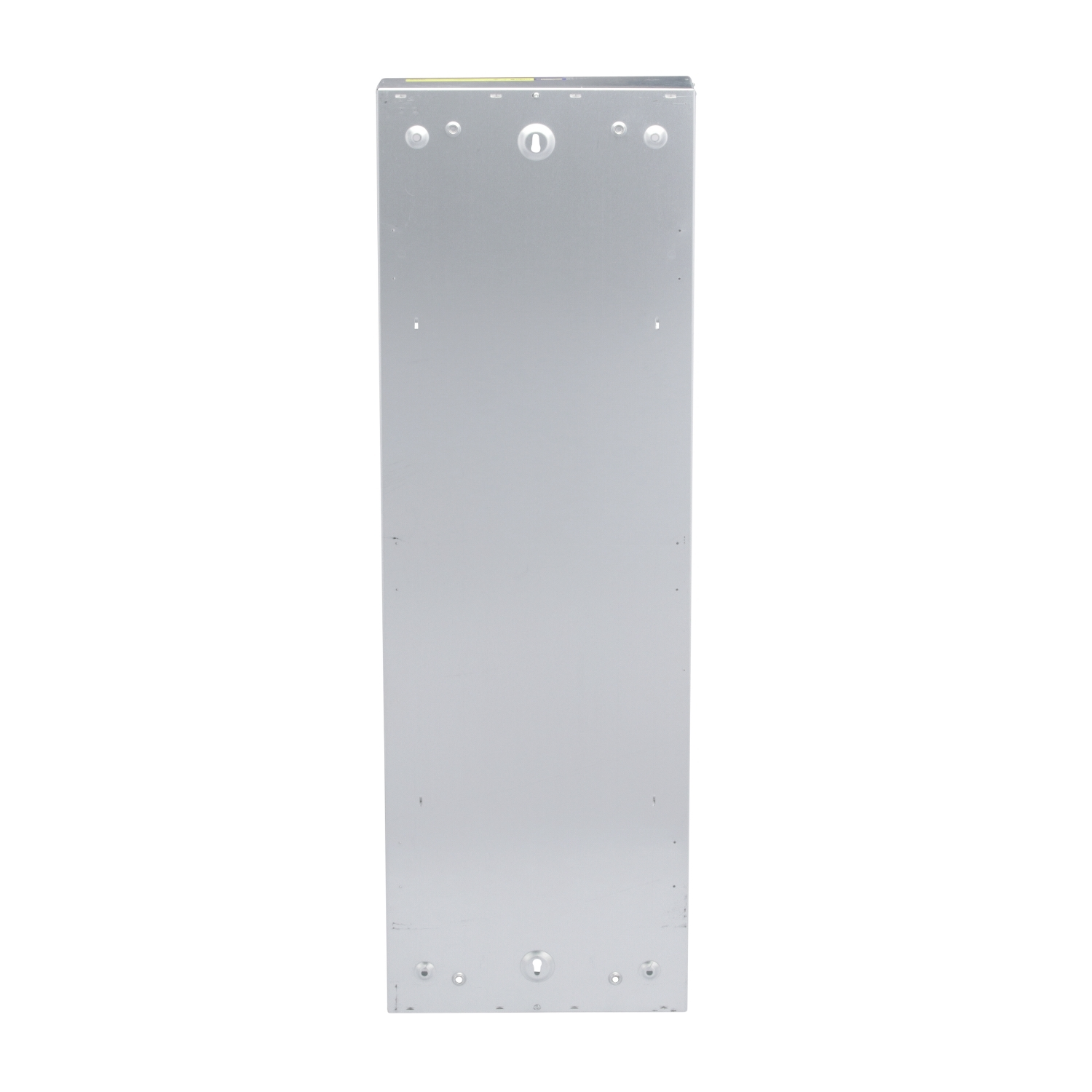

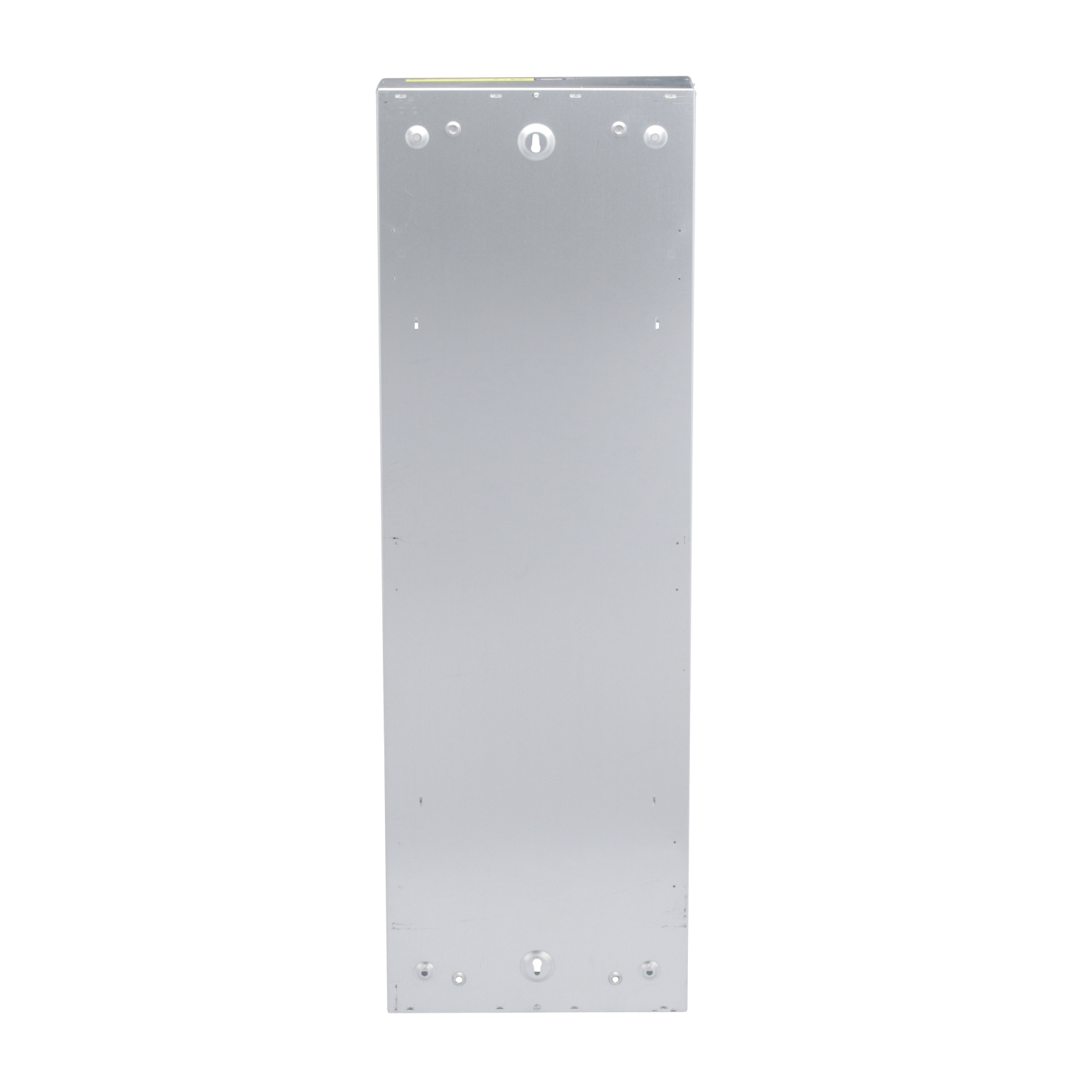

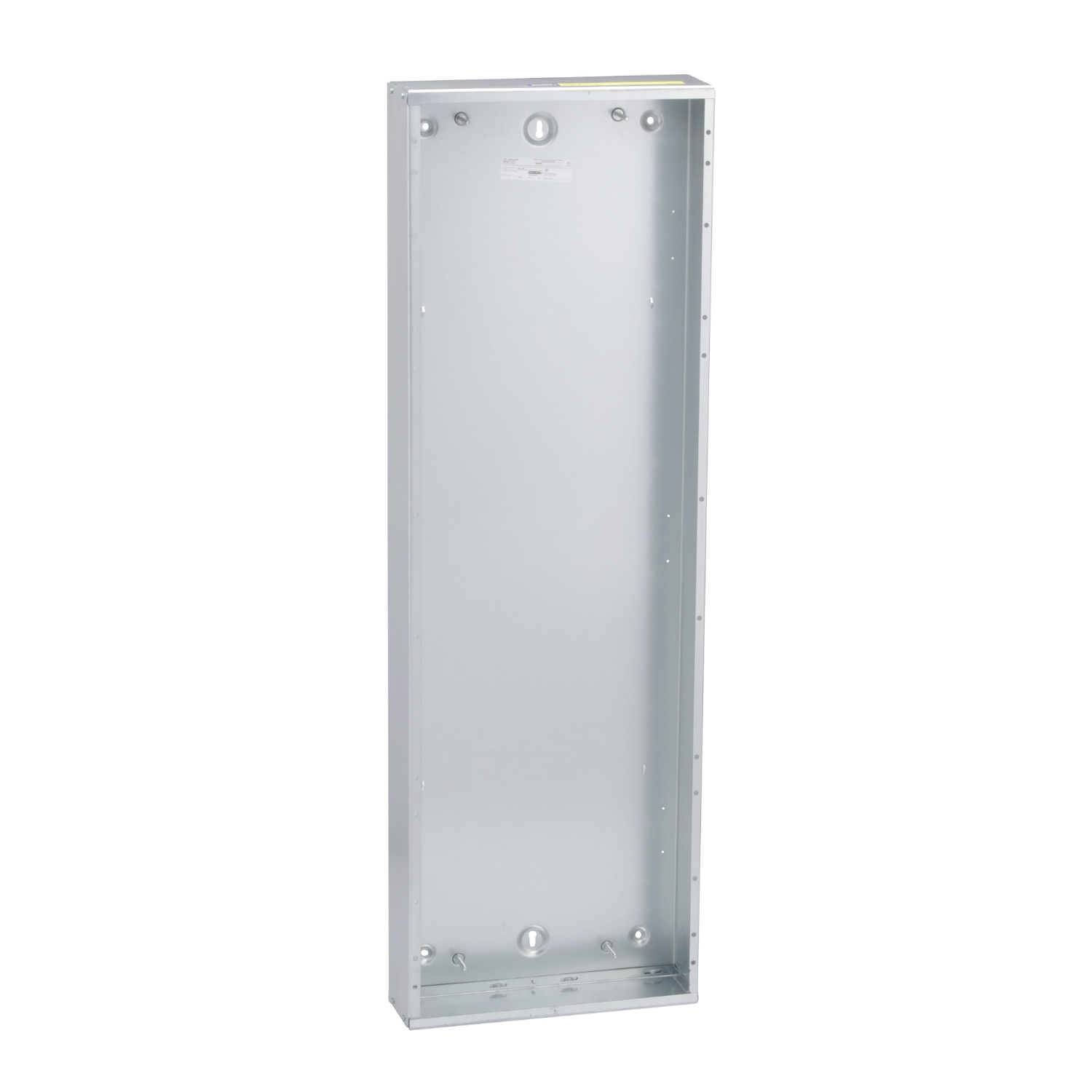

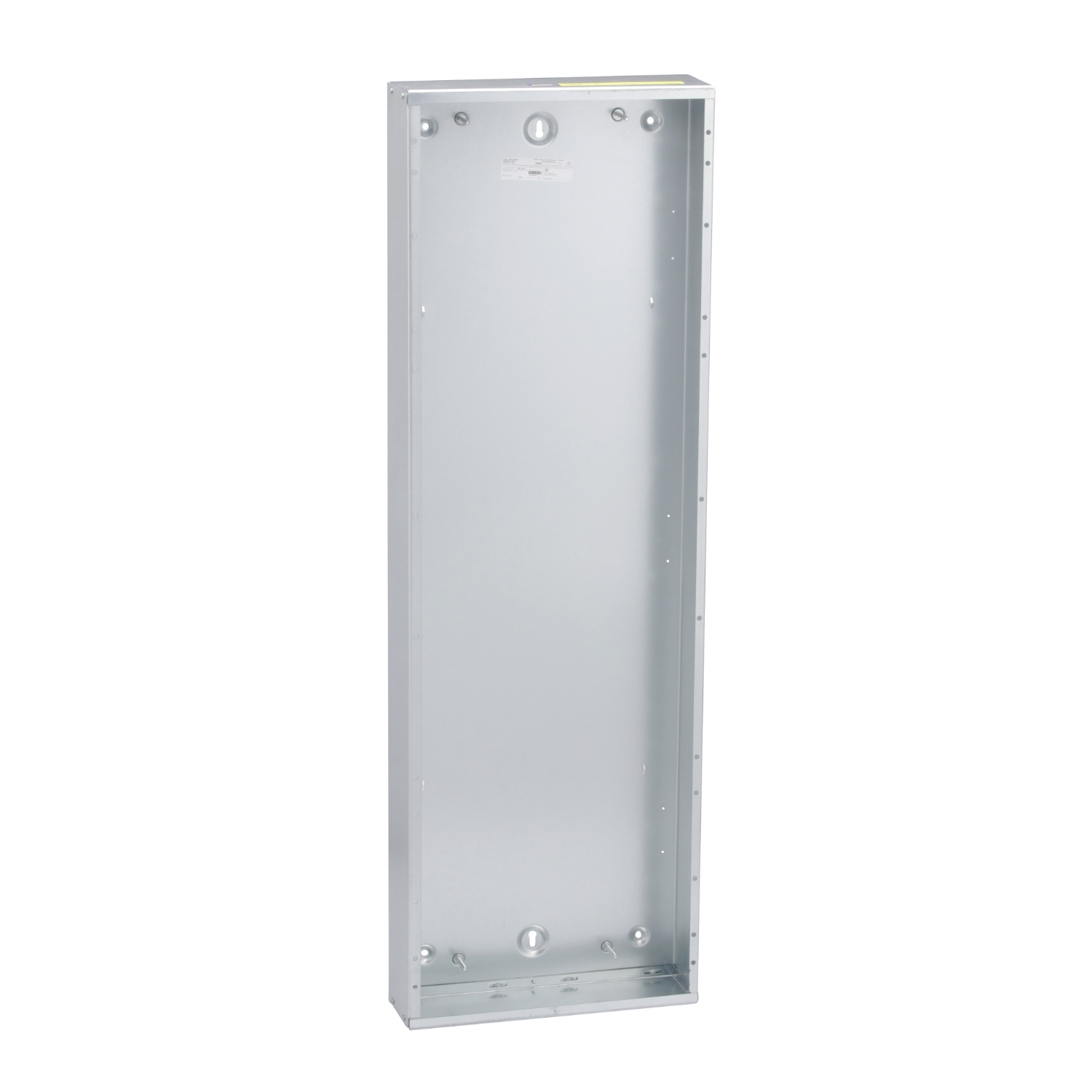

The Square D MH62BE panelboard enclosure is a versatile solution compatible with NQ and NF Panelboards, accommodating a wide selection of circuit breakers and accessories. This type 1 enclosure features blank end walls and measures 20 x 5.75 x 62 inches. It supports 200% rated neutrals for nonlinear loads and is field convertible to top or bottom feed. Suitable for use as service equipment.

  • Versatile panelboards
  • Wide selection of circuit breakers, accessories, and ready to install kits
  • Provide 200% rated neutrals for nonlinear loads

Product Highlights

The Square D MH62BE is a type 1 panelboard enclosure with blank end walls, designed for NQ and NF Panelboards. It measures 20 x 5.75 x 62 inches.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: MH62BE
  • Country of Origin: United States
Technical Specifications
Type
Enclosure
Brand
Square D
Width
20 in
Height
62 Inch
Voltage
600 VAC
Material
Steel
Enclosure
1
NEMA Size
1
Sub Brand
NQ / NF
Applications
PANELBOARD ENCLOSURE
Certifications
CULus
Enclosure Type
Blank end wall
Number of Phases
1,3 Phase
Country of Origin
USA
Enclosure Material
Steel
Catalog Number
MH62BE
Manufacturer
Schneider Electric
Made in USA
Yes
Panelboard Type
Panelboard Box
UPC
785901082767
GTIN
00785901082767
Item Type
Enclosure
Interior Type
66 Circuit 250 Ampere NF Series Main Lug Interior, 72 Circuit 400 Ampere NQ Series Main Lug Interior, 30 Circuit 400 Ampere NF Series Main Circuit Breaker Interior, 42 Circuit 400 Ampere NQ Series Main Circuit Breaker Interior
Series
MH Series
Mounting
Flush Mounting
Finish
Galvanized
NEMA Rating
NEMA 1
Line Current Rating
600 a
Product Or Component Type
enclosure
