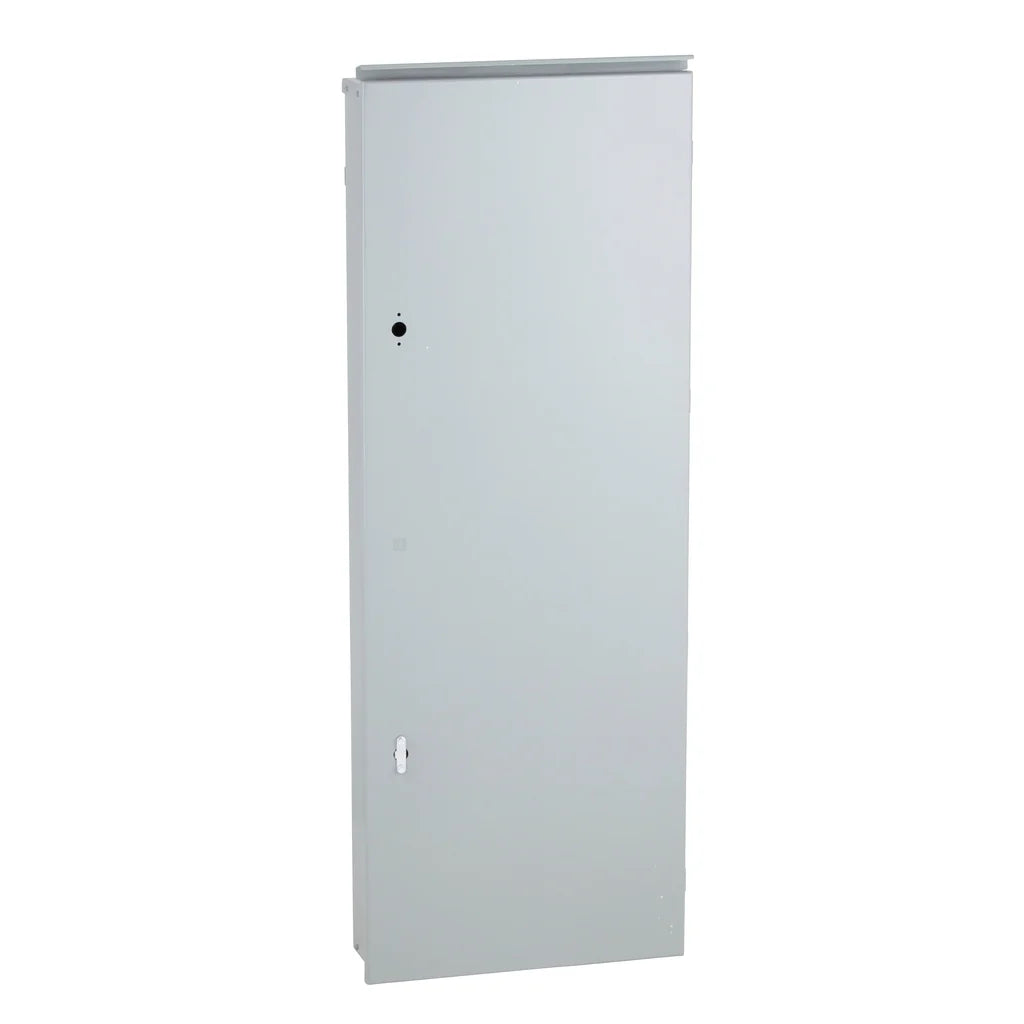

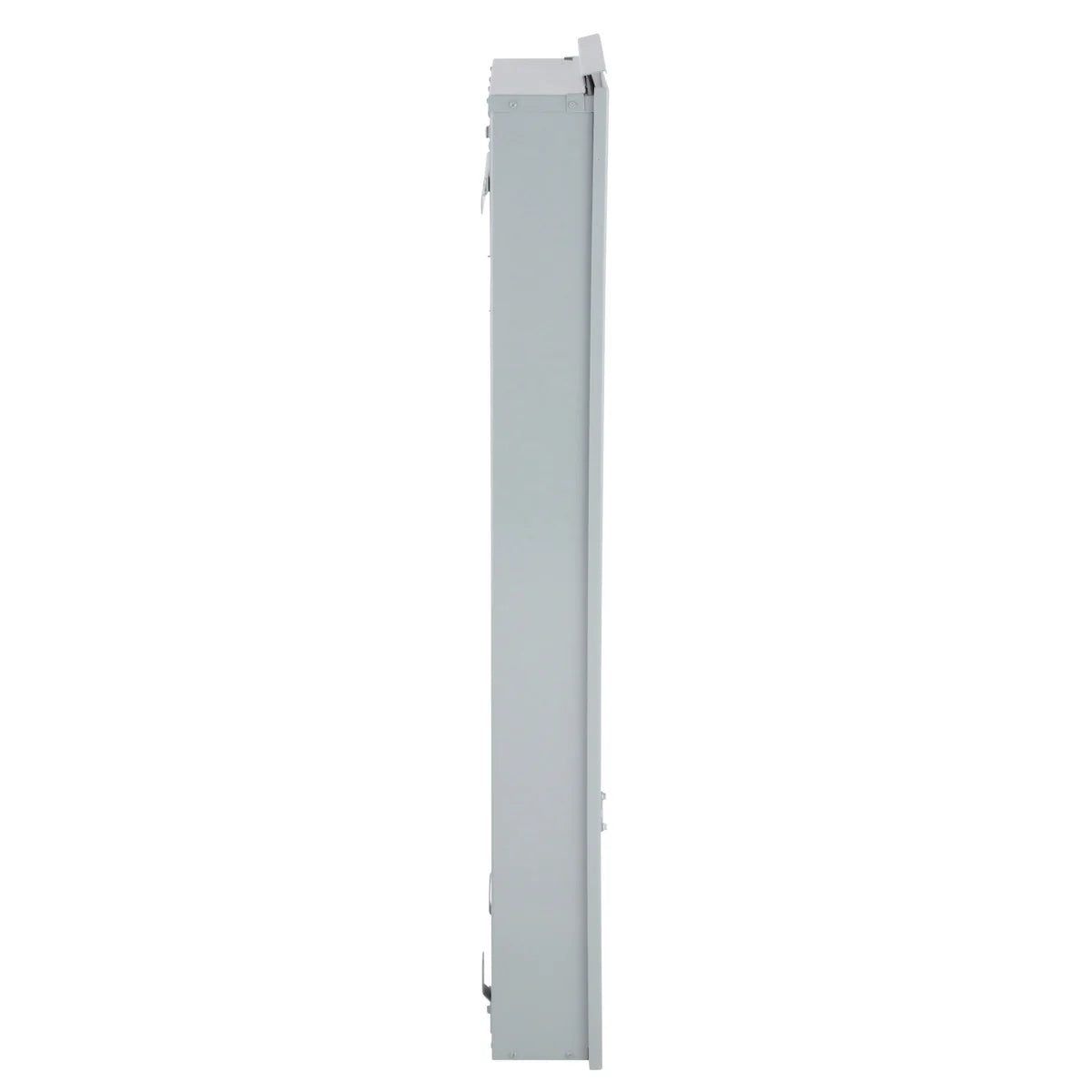

Square D MH56WP NEMA 3R/5/12 Panelboard Enclosure 20in W x 56in H x 6.5in D

Product Description

The Square D MH56WP is a NEMA 3R/5/12 panelboard enclosure with dimensions of twenty inches wide, fifty-six inches high, and six and a half inches deep. This enclosure is ideal for housing various circuit breakers and accessories securely and efficiently. The NQ and NF panelboards are compatible with this enclosure, making it versatile for different applications.

• Rated for indoor and outdoor applications.
• Provides 200% rated neutrals for nonlinear loads.
• UL listed and CSA certified for safety.

Product Highlights

This enclosure can convert from main lug to main breaker and is suitable for use as service equipment. The box is made from steel and features a surface mounting type. Its field-convertible interior can be modified for top or bottom feed.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: MH56WP
• Type: Enclosure
• Voltage: 600 Volt AC - 48 Volt DC
• Material: Steel
• Enclosure Rating: 3R, 5, 12
• Mounting Type: Surface
• Country of Origin: Mexico
• Warranty Length: 18 months
