Square D MH44WP 20 x 6.5 x 44 Inch NEMA 3R/12 Panelboard Enclosure

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: MH44WP
Availability: Out Of Stock
$1,518.52
$1,518.52
LTL Delivery

This product weighs 77 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

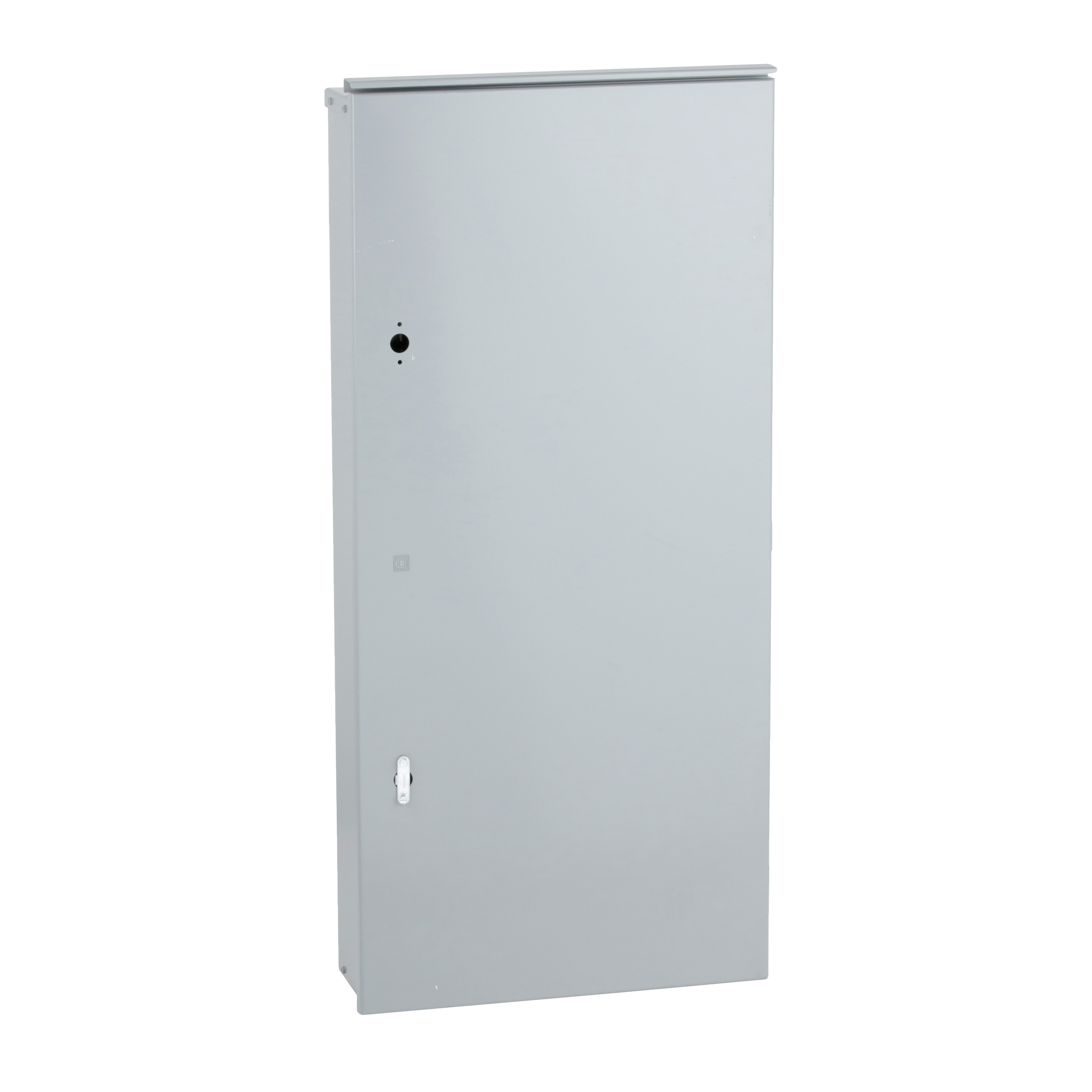

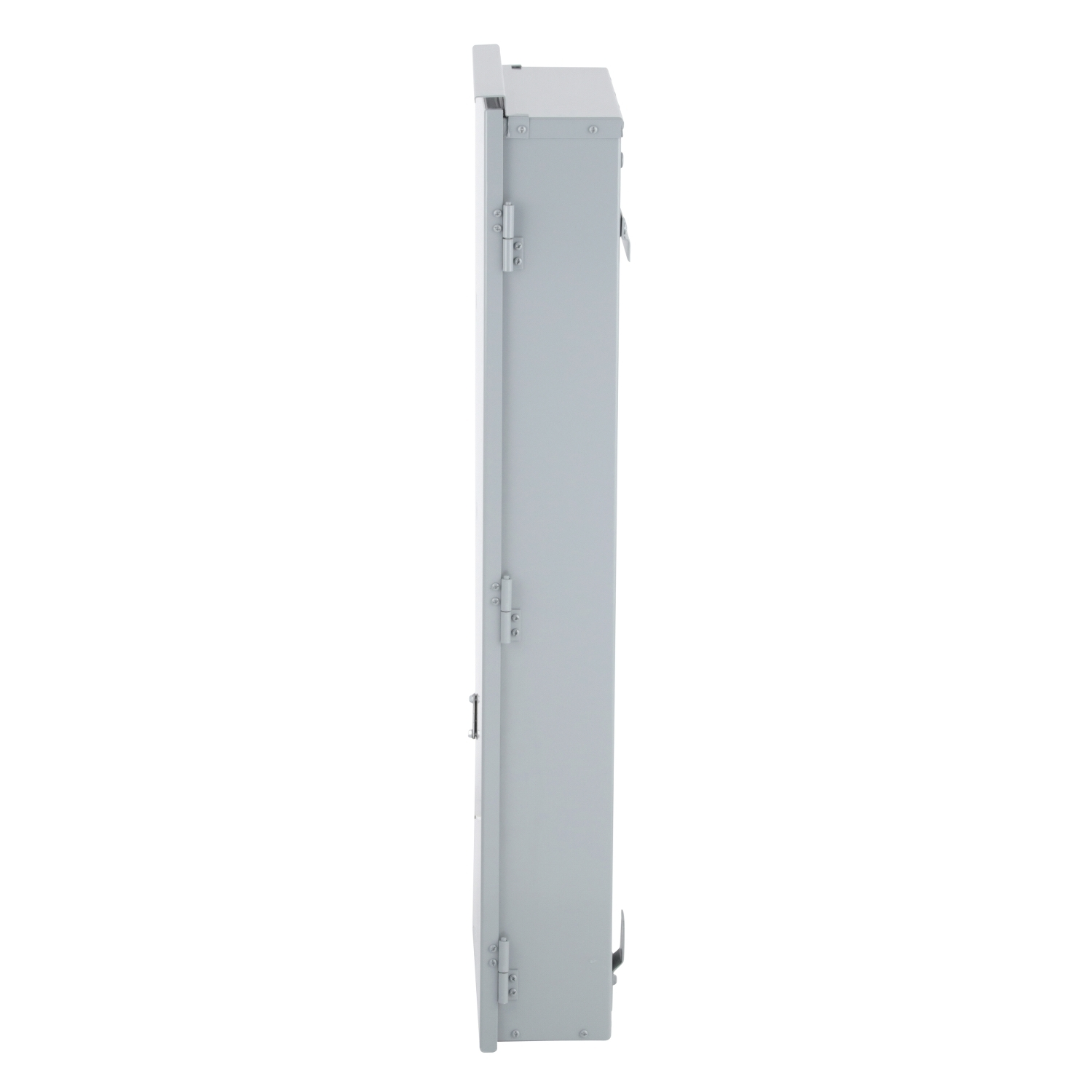

The Square D MH44WP panelboard enclosure is designed for NQ and NF panelboards. This enclosure features a wide selection of circuit breakers, accessories, and ready to install kits. Rated as NEMA type 3R/5/12, it provides 200% rated neutrals for nonlinear loads and is convertible from main lug to main breaker. Dimensions are 20 x 44 x 6.50 inches.

  • Suitable for use as service equipment
  • Field convertible to top or bottom feed
  • UL listed and CSA certified by UL

Product Highlights

The MH44WP enclosure is ideal for various applications, offering a durable and versatile solution for panelboard installations.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: MH44WP
  • Country of Origin: United States
Technical Specifications
Type
1-Phase 3-Wire NQ+NF, NQ+NF
Brand
Square D
Depth
6-1/2 in
Width
20 in
Height
44 Inch
Voltage
600 Volt AC-48 Volt DC
Material
Steel
Enclosure
12,3R,5
NEMA Size
12,3R,5
Sub Brand
NQ / NF
Applications
PANELBOARD ENCLOSURE
Mounting Type
Surface
Certifications
CULus
Enclosure Material
Steel
Catalog Number
MH44WP
Manufacturer
Schneider Electric
Country of Origin
United States
Made in USA
Yes
Panelboard Type
Panelboard Box
UPC
785901798088
GTIN
00785901798088
Item Type
Enclosure
Enclosure Type
NEMA 3R/12
Dimensions
20 x 44 x 6.50 in
Interior Type
42 Circuit 250 Ampere Main Lug Interior, 30 Circuit 100/225 Ampere/42 Circuit 125 Ampere Main Breaker Interior
IGCC
4370
Weight
77
Family group
DISTRIBUTION EQUIPMENT
WES Product code
2610222507
Part Number #
MH44WP
SKU #
2126326
NEMA Rating
NEMA 3R/5/12
Series
MH Series
Length
44 in
ECCN
EAR99
Suitable for
NQ and NF panelboards
Device Mounting
surface
Eu Rohs Directive
Compliant with Exemptions
Reach Free Of Svhc
Yes
Circularity Profile
N/A
China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure
ENVPEP1404010EN
California Proposition 65
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information
Yes
Packaging Without Single Use Plastic
No
Packaging Made With Recycled Cardboard
No
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)
316.653224424
UNSPSC
39121112
