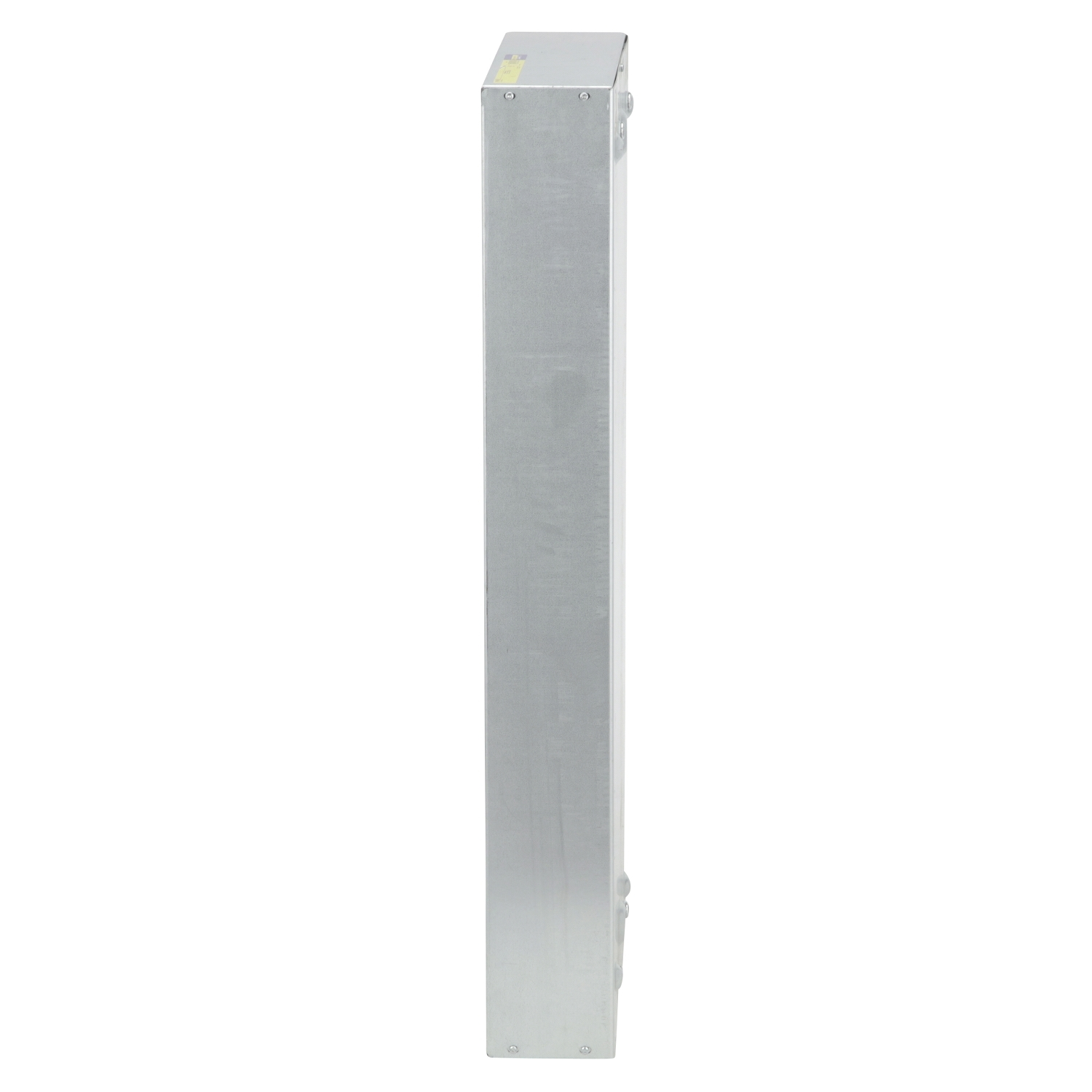

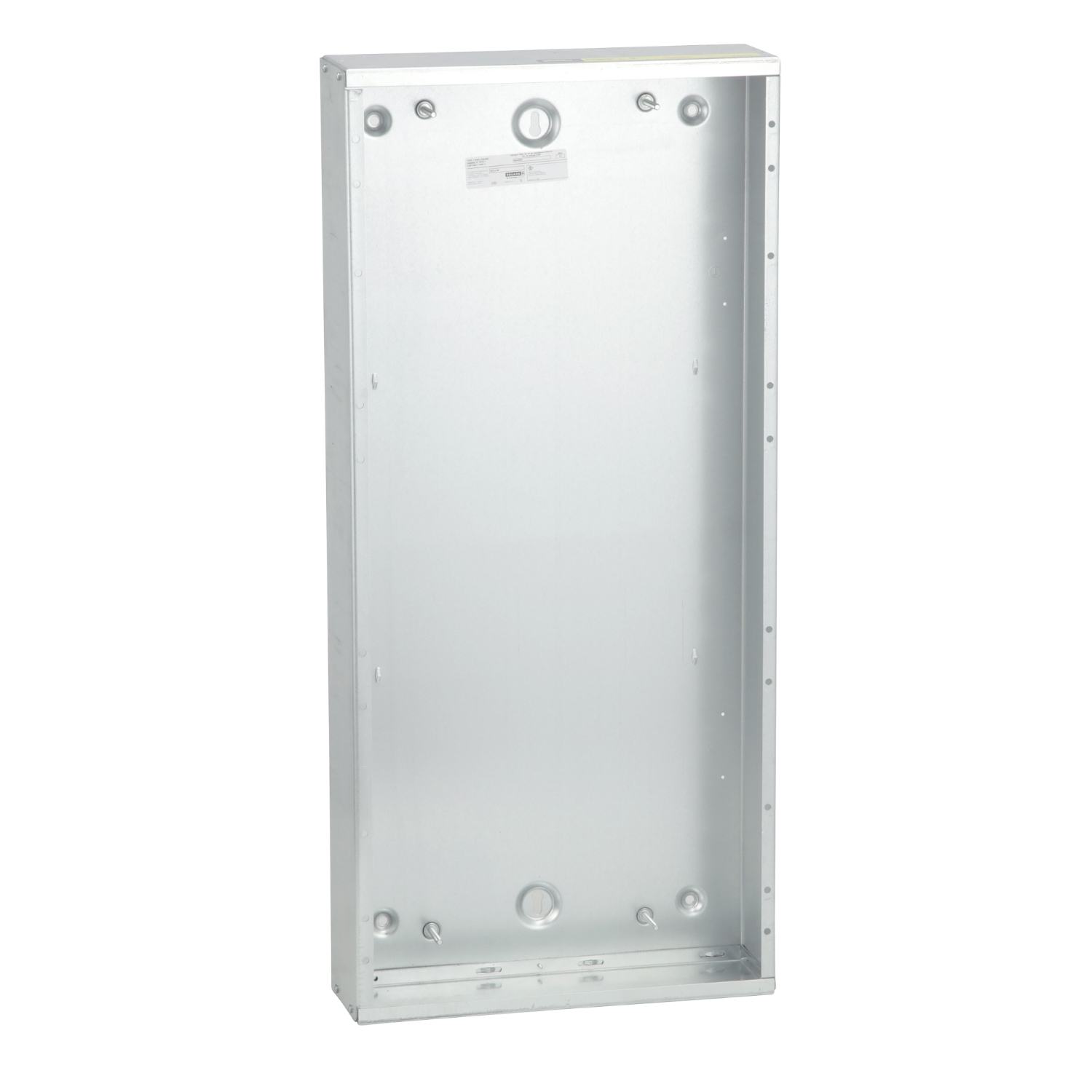

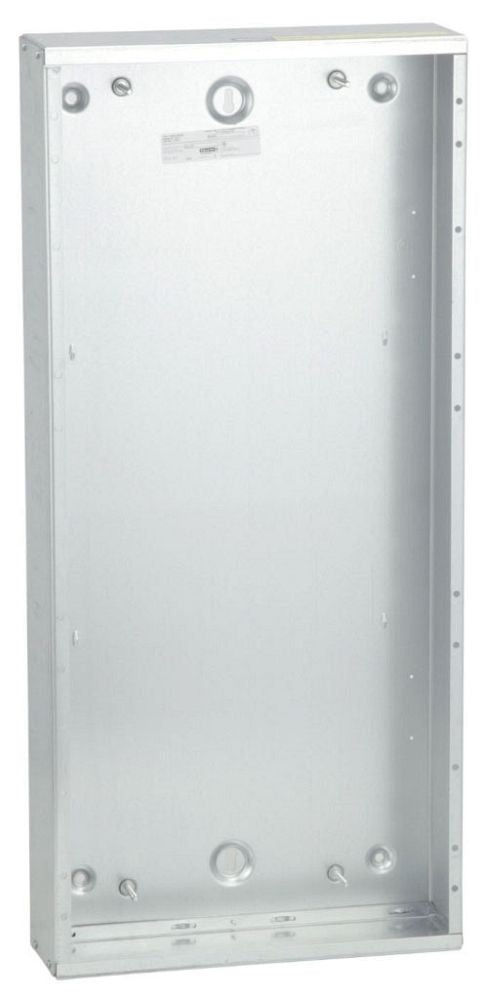

Square D MH44BE Panelboard Enclosure 20 x 5.75 x 44 Inch

Product Description

The Square D MH44BE is a steel panelboard enclosure with black end walls, designed for NQ and NF panelboard applications. This NEMA 1 enclosure measures 20 inches in width, 5.75 inches in depth, and 44 inches in height. It is cULus certified.

• NEMA 1 degree of protection
• cULus certified

Product Highlights

Steel panelboard enclosure with NEMA 1 protection, cULus certified.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MH44BE
• Country of Origin: United States

Technical Specifications

• Type: Enclosure
• Brand: Square D
• Depth: 5.75 Inch
• Width: 20 in
• Height: 44 Inch
• Voltage: 600 Volt AC-48 Volt DC
• Material: Steel
• NEMA Size: 1
• Sub Brand: NQ / NF
• Applications: PANELBOARD ENCLOSURE
• Certifications: CULus
• Enclosure Type: Blank end wall
• Number of Phases: 1,3 Phase
• Country of Origin: USA
• Enclosure Material: Steel
• Catalog Number: MH44BE
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Panelboard Type: Panelboard Box
• UPC: 785901082699
• GTIN: 00785901082699
• Item Type: Enclosure
• NEMA Rating: NEMA 1
• Features: Mercury Free
• Standards: cULus
• Product Type: Panelboard Enclosure/Box Type 1 44H 20W
• Accessory Type: Panelboard Enclosure/Box Type 1 44H 20W
• Recommended Enclosure: blank end wall
• ECCN: EAR99
• Length: 44 in
• UNSPSC: 39121112
• Nema Degree Of Protection: NEMA 1
• Product Or Component Type: enclosure
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: No
• Environmental Disclosure: ENVPEP1404010EN
• Packaging Without Single Use Plastic: No
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: N/A
• Take-Back: No
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle): 132.5717776447
