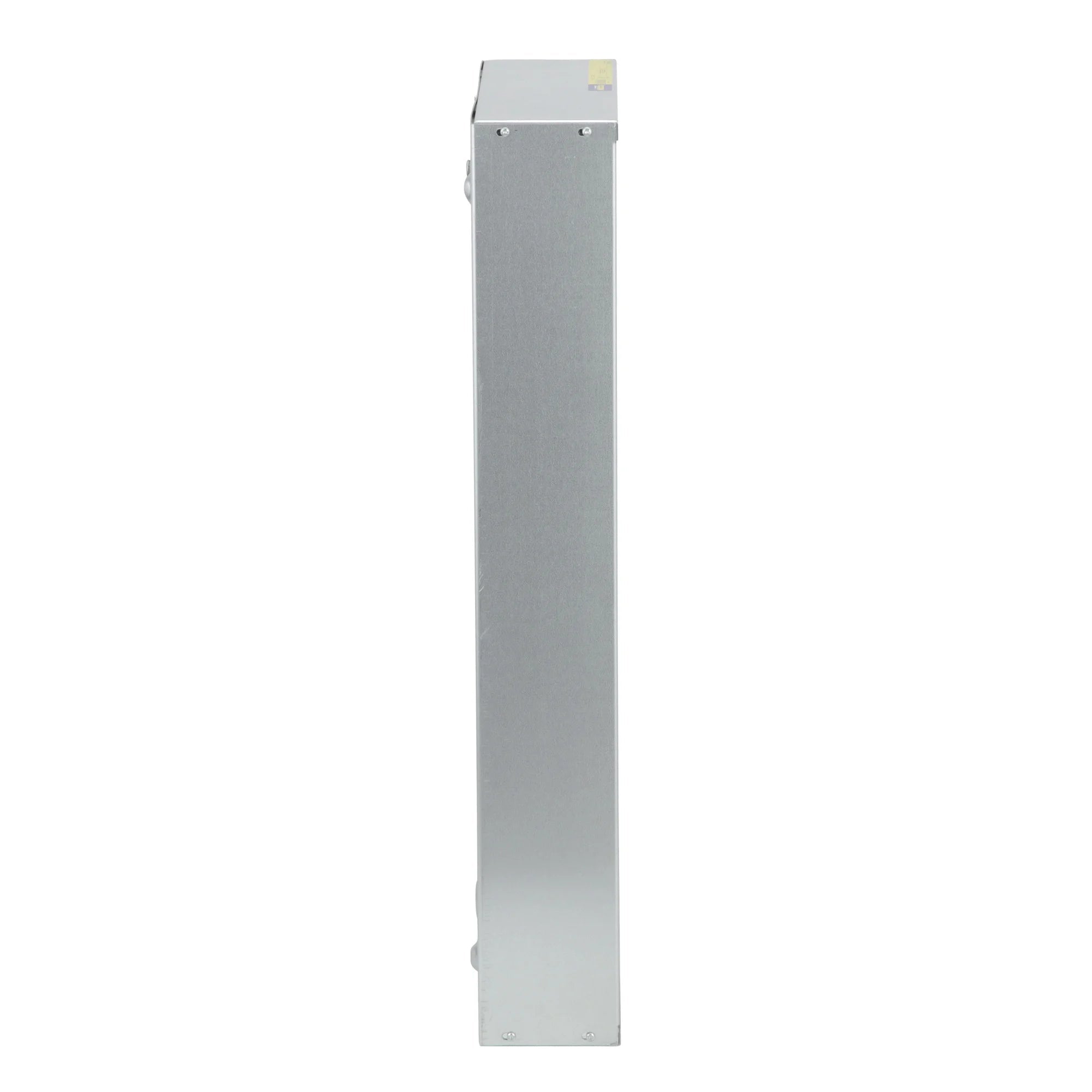

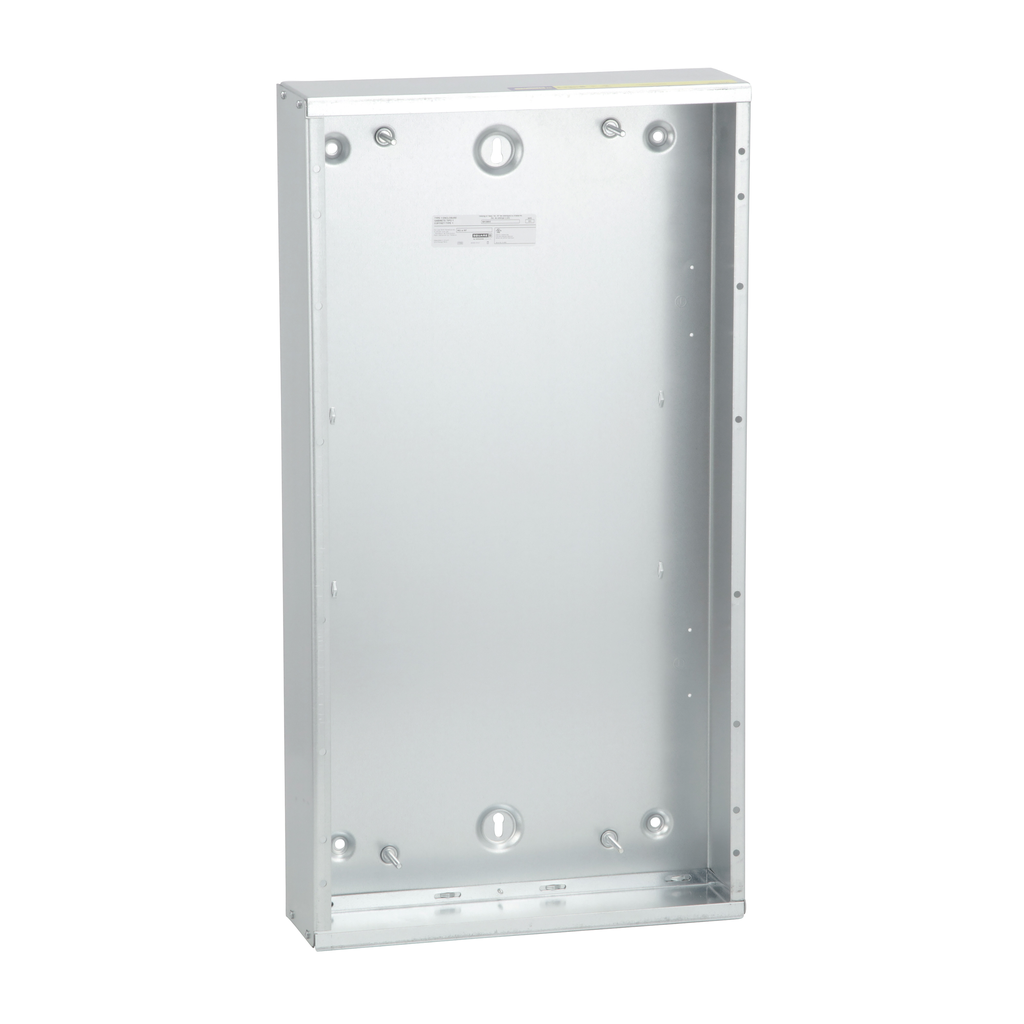

Square D MH38BE Square D 20 x 5.75 x 38 Inch NEMA 1 Panelboard Enclosure

Product Description

This Square D MH38BE is a panelboard enclosure designed for various applications. It measures twenty inches wide, thirty-eight inches high, and five and three-quarters inches deep. The enclosure type is rated NEMA 1 and features blank end walls, making it suitable for use in dry locations.

• UL listed and CSA certified
• Convertible from main lug to main breaker
• Field convertible for top or bottom feed

Product Highlights

This enclosure offers durability with a steel construction, providing a reliable option for your electrical needs. It supports multiple circuit breakers and accessories, ensuring versatility in your setups.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: MH38BE
• Enclosure Material: Steel
• Enclosure Type: Blank end wall
• Width: 20 inches
• Height: 38 inches
• Depth: 5.75 inches
• Voltage Rating: 600 VAC
• Number of Phases: 3 Phase
• Warranty Length: 18 months
• Country of Origin: USA
