Square D MH38 Panelboard Encloser

Product Description

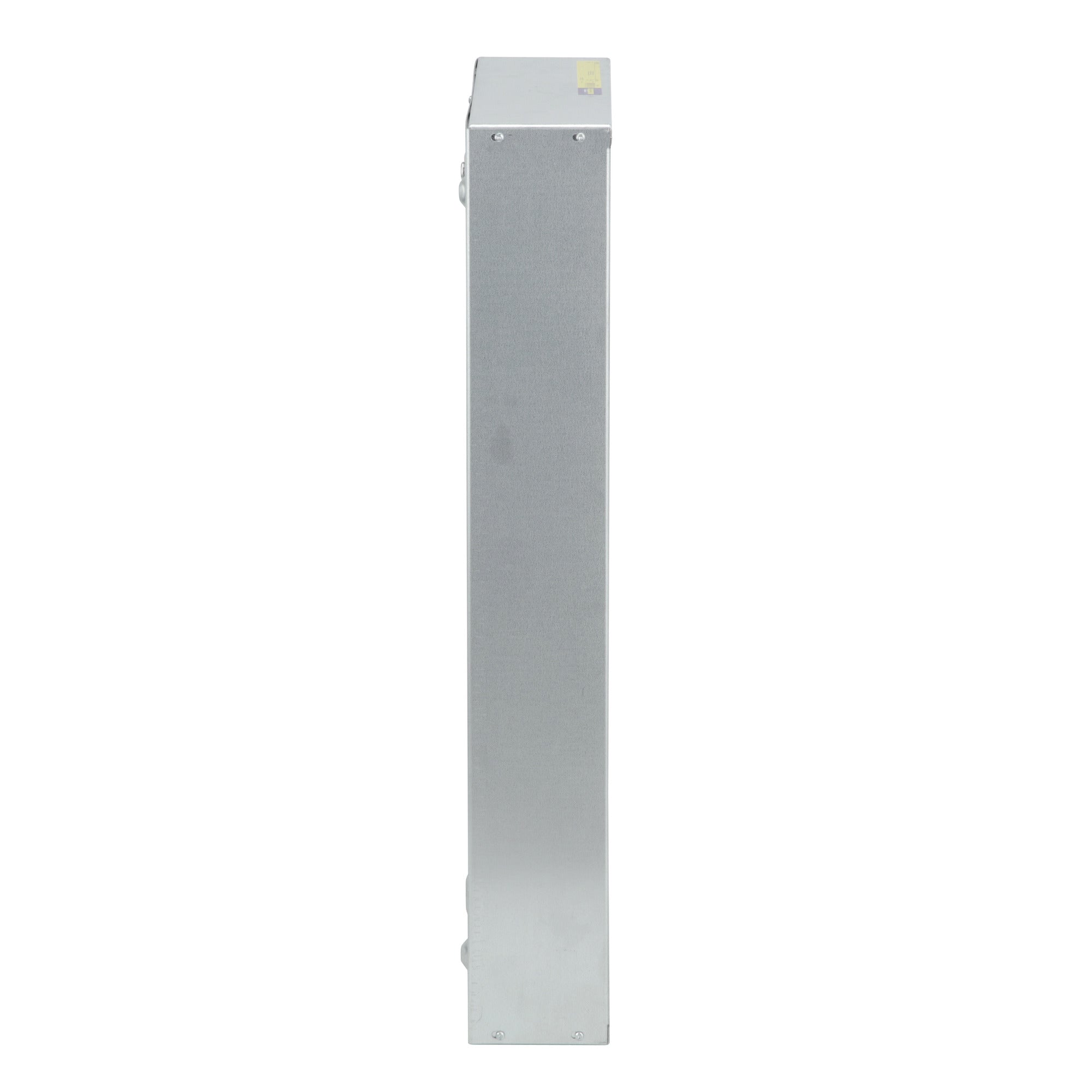

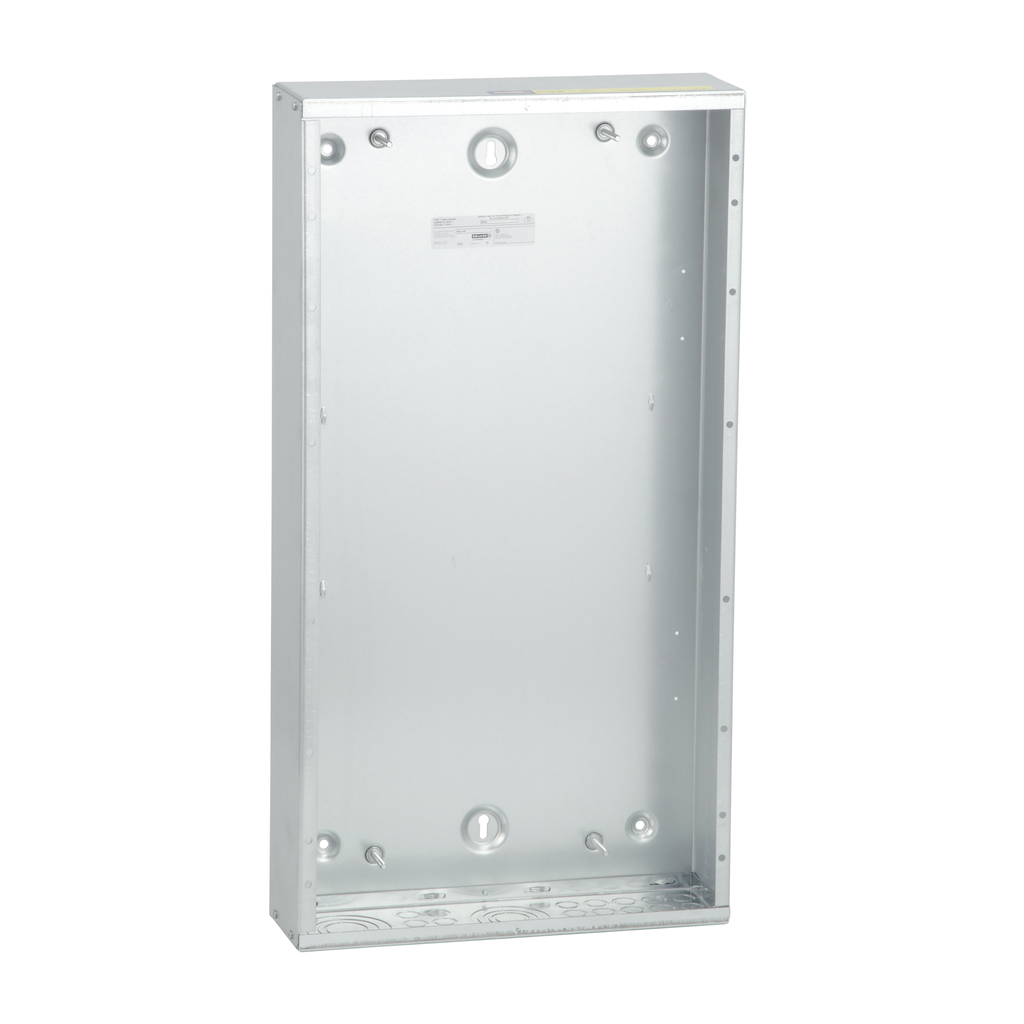

The Square D MH38 is a steel panelboard enclosure designed for use with NQ and NF panelboards. It has a NEMA 1 rating for protection from dust and accidental contact. This model is cULus certified, ensuring high standards of safety and quality. It measures twenty inches in width, thirty-eight inches in height, and five and three-quarter inches in depth, suitable for various installation environments.

• Steel construction for durability
• NEMA 1 rated for indoor installations
• Certified by cULus for safety compliance

Product Highlights

This enclosure is intended for use in environments where basic protection is needed. Its robust design supports operational reliability in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: MH38
• Enclosure Material: Steel
• Voltage Rating: 600V AC - 48V DC
• Dimensions: 20 inches (W) x 38 inches (H) x 5.75 inches (D)
• Weight: 27.8 lbs
• Country of Origin: USA
• Warranty Length: 18 months
