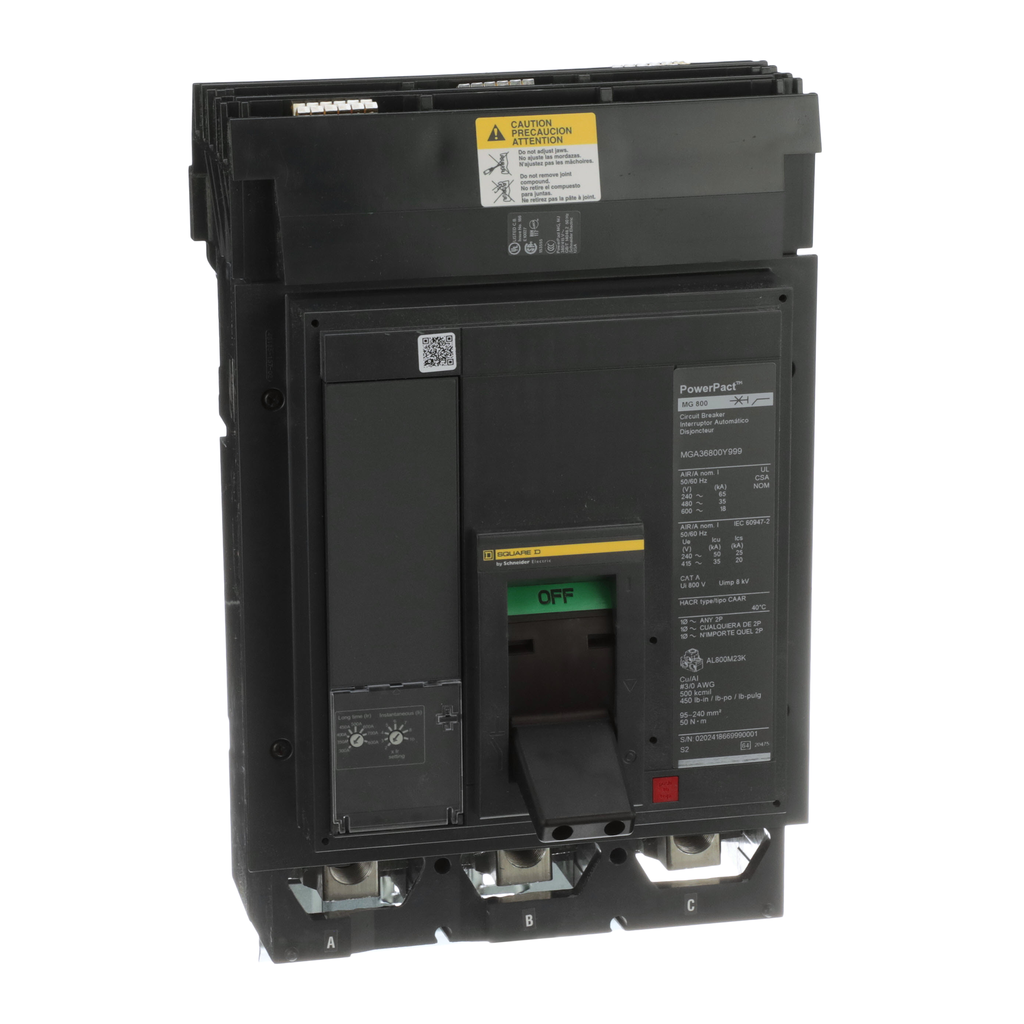

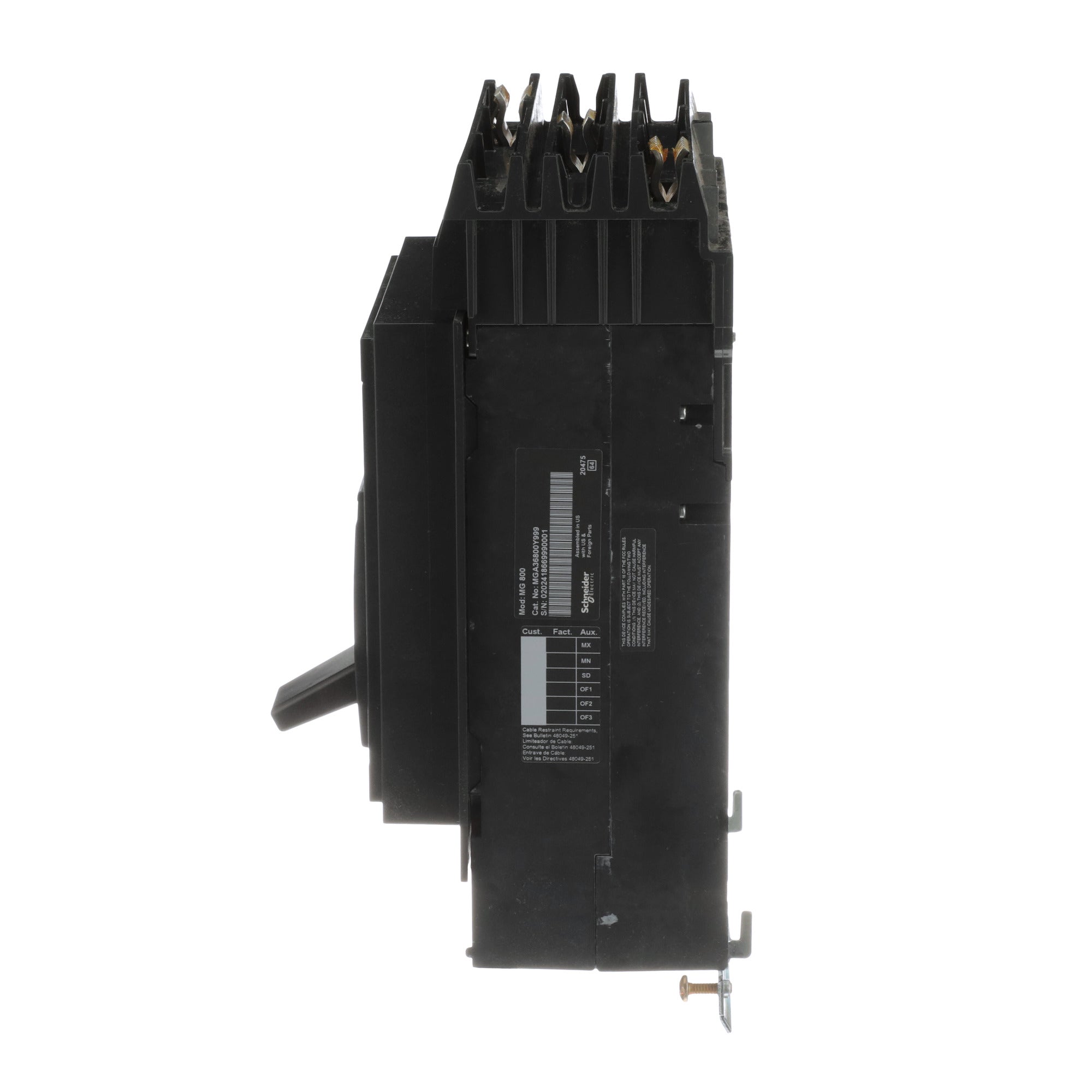

Square D MGA36800E10 Circuit Breaker PowerPacT M 300A to 800A 3 Pole 600VAC 18kA

Product Description

The Square D MGA36800E10 Circuit Breaker is designed to protect electrical systems against overloads and short circuits. This PowerPacT M-Frame circuit breaker allows for adjustable trip settings from three hundred to eight hundred amperes using a selector switch. It features a push-to-trip button for manual circuit interruption and has I-Line terminations on the line side along with mechanical lugs on the load side.

• Adjustable amperage setting from 300A to 800A.
• Three-pole design with a continuous current rating of eighty percent.
• Interrupting rating of eighteen kA at six hundred VAC.

Product Highlights

This product meets UL, CSA, NOM, and IEC standards and has CE markings. It is designed for unit mount or I-Line construction, suitable for various applications in power distribution.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: MGA36800E10
• Trip Type: Electronic, basic, ET 1.0
• Connection: I-Line connection, line lugs
• Number of Poles: 3
• Depth: 8.05 inches
• Width: 8.27 inches
• Height: 12.86 inches
• Weight: 29 lbs
