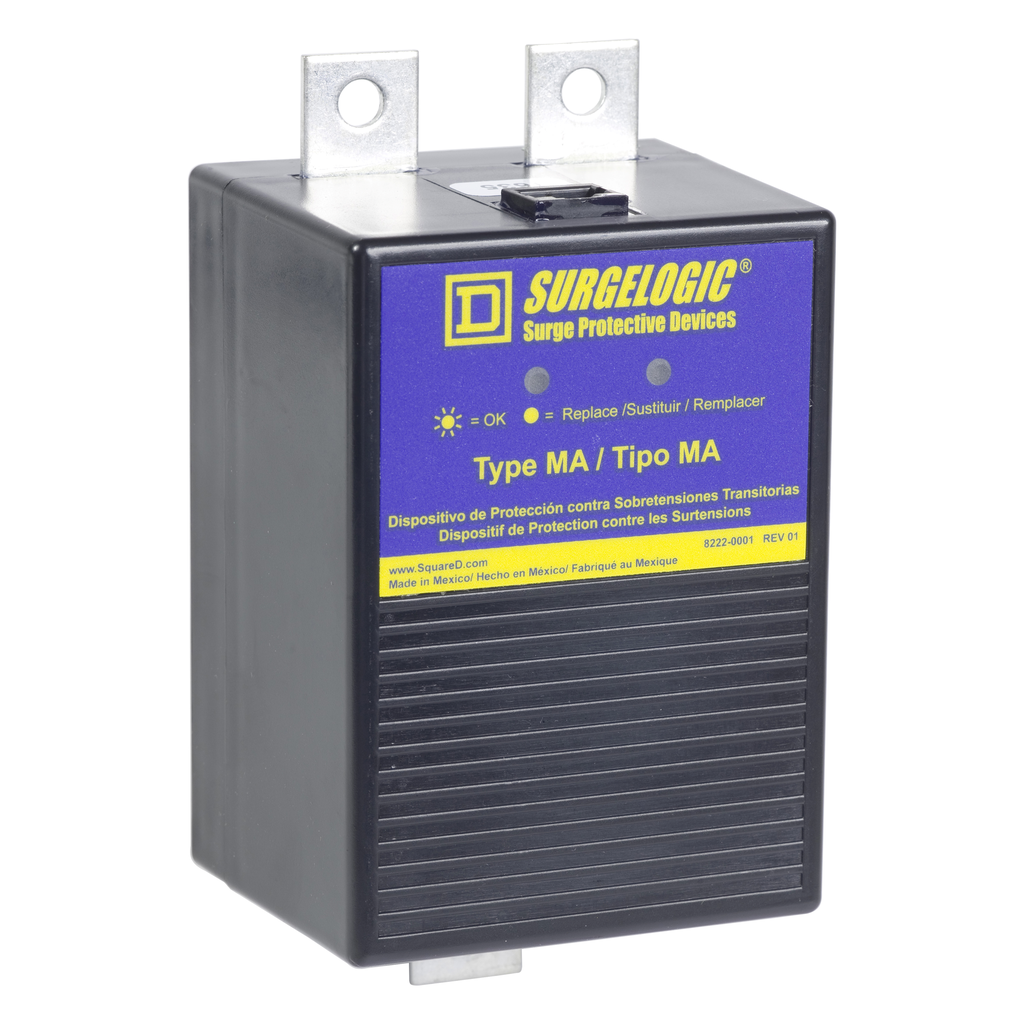

Square D MA1IMA121 Surge Protection Module 120kA 120/240 VAC 1 Phase

Product Description

The Square D MA1IMA121 Surge Protection Module is designed for line side installation in electrical service entrances and serves as a replacement for Type EBA surge protective devices. This modular unit provides a surge current rating of one hundred twenty thousand Amps, ensuring protection in severe electrical conditions through quick responses from its advanced diagnostic system.

• Surge current rating of 120,000 Amps
• Complies with UL and CSA certification
• Optional features including remote monitoring and EMI/RFI filtering

Product Highlights

Ideal for commercial and industrial applications, this Surge Protection Device (SPD) utilizes the WYE system for enhanced versatility in electrical setups.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: MA1IMA121
• Voltage Rating: 120/240 VAC
• Phases: 1 Phase
• Nominal Discharge Current: 20 kA
• Height: 158.8 mm
• Width: 82.8 mm
• Depth: 68.3 mm
• UPC: 785901816607
