SQUARE D LRD365 Overload Relay 48-65A

Product Description

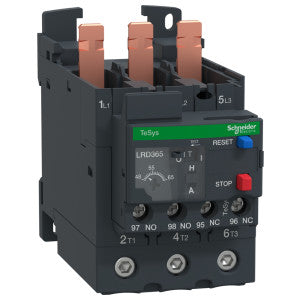

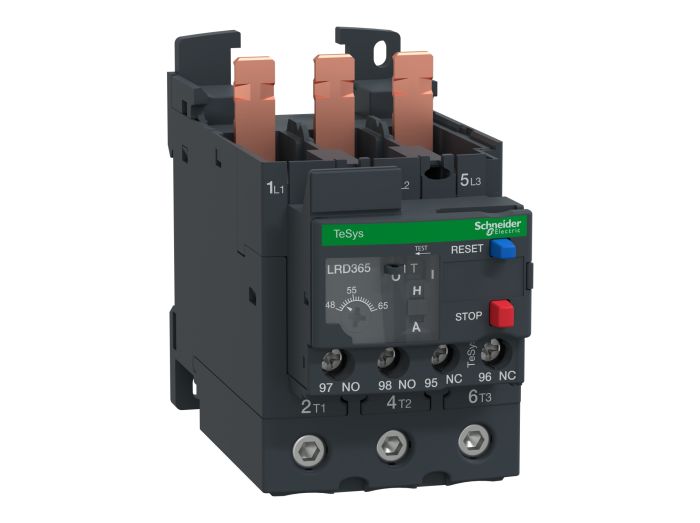

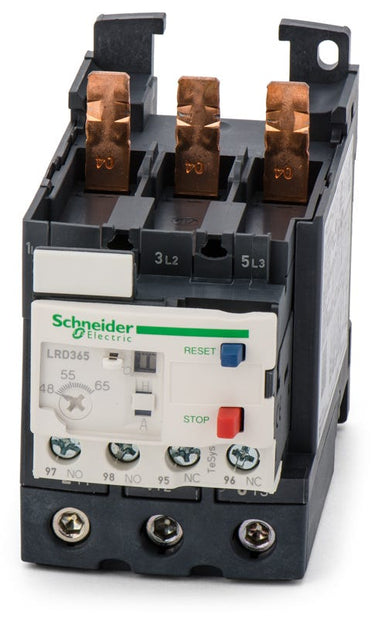

The SQUARE D LRD365 overload relay is a thermal, bimetallic relay designed for use with TeSys D contactors to form a motor starter. It has an adjustable trip current rating ranging from forty-eight to sixty-five amperes, suitable for Class 10A applications. This unit allows for both automatic and manual reset options, and it compensates for changes in ambient temperature to ensure reliable operation.

• Thermal, bimetallic relay design
• Adjustable trip current rating of 48 to 65 amperes
• Compatible with automatic and manual reset settings

Product Highlights

The SQUARE D LRD365 is built to manage overload protection in various motor control applications.

Product Information

Standard Information

• Part Number: LRD365
• Brand: SQUARE D

Technical Specifications

• Connection Type: Screw Terminals
• Current Rating: 48-65 A
• Poles: 3
• Trip Class: Class 10A
• Reset Type: Automatic, Manual
• Ambient Temperature Range: -4 to 140 °F
• Rated Voltage: 690V AC
• Dimensions: Height 70 mm, Depth 123 mm, Width 55 mm
