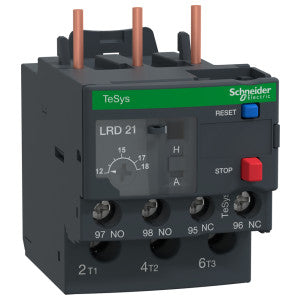

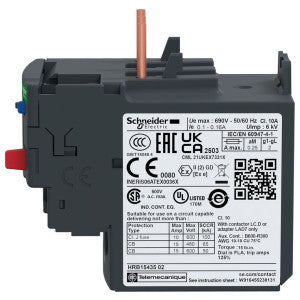

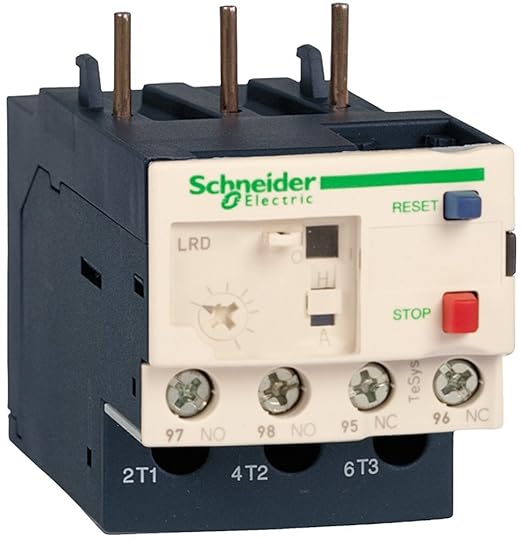

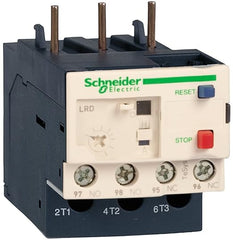

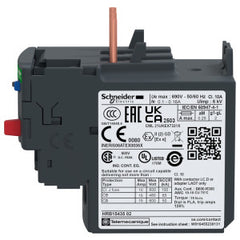

SQUARE D LRD21 Overload Relay 12A to 18A
Availability:
In Stock
Ships same day if ordered by 12 pm
- $151.84
- $151.84
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe SQUARE D LRD21 is an overload relay designed for use with TeSys D contactors. It operates within a trip range of twelve amperes to eighteen amperes and is part of the Class 10 category with single-phase sensitivity. This unit effectively detects overcurrents and automatically disconnects power to the motor, ensuring protection against winding damage.
- Class 10 overload relay with single-phase sensitivity.
- Adjustable trip current rating from 12 to 18 amperes.
- Compatible for use with TeSys D contactors.
Product Highlights
Ideal for applications requiring reliable motor protection and overload management.Product Information
Standard Information
-
Brand: SQUARE D
-
MPN: LRD21
Technical Specifications
Connector Type
Screw Clamp
Contact Material
Silver Alloy Or Copper Alloy
Current Rating
18 Amps
Mounting Type
Contactor
Class Rating
10
Frequency Rating
0 to 400 Hz
IP Rating
IP20 conforming to IEC 60529
Rated Voltage
690V ac
Height
66 mm
Depth
70 mm
Width
45 mm
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Standard
EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | UL 60947-5-1
- Class 10 overload relay with single-phase sensitivity.
- Adjustable trip current rating from 12 to 18 amperes.
- Compatible for use with TeSys D contactors.
Product Highlights
Ideal for applications requiring reliable motor protection and overload management.Product Information
Standard Information
- Brand: SQUARE D
- MPN: LRD21
Technical Specifications
