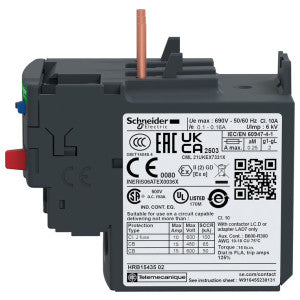

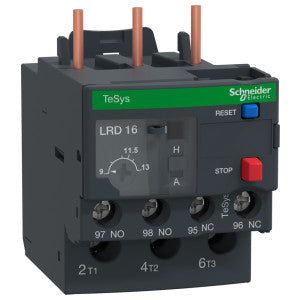

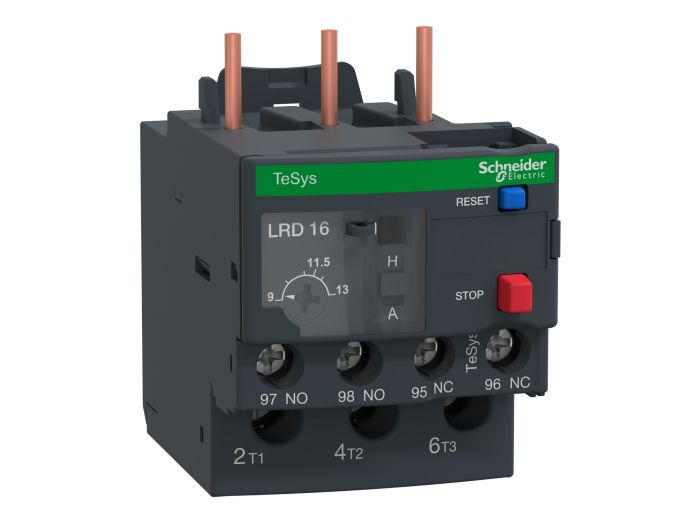

SQUARE D LRD16L Tesys Lrd Overload Relay

Product Description

The SQUARE D LRD16L Tesys Lrd Overload Relay provides reliable protection for motors. It is compatible with TeSys D contactors, designed to protect motors up to seven point five horsepower. This relay features a thermal range of nine to thirteen amperes and has a tripping class of twenty. It includes phase unbalance protection, a manual test button, and reset options for ease of use.

• Provides thermal overload protection with phase unbalance safety.
• Mounts directly on Tesys contactors for a compact setup.
• Temperature compensated for precise motor protection.

Product Highlights

Essential for motor protection, the SQUARE D LRD16L ensures safety and reliability in electrical systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LRD16L

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39122330
• Connection Type: Screw Terminals
• Class Rating: 20
• Frequency Rating: 0 to 400 Hz
• IP Rating: IP20 conforming to IEC 60529
• Rated Voltage: 690V ac
• Height: 66 mm
• Depth: 76 mm
• Width: 45 mm
• Dielectric Strength: 1.89 kV 50 Hz IEC 60947-1
• Manufacturer: Square D
• Family Series: Square D Overload Relays
• Description: Class 20 Bimetal Overload Relay 9-13A
• Type: Thermal
• Current Rating: 9-13 A
• Poles: 3
• Output Contacts: 1NO, 1NC
• Trip Class: Class 20
• Reset Type: Automatic, Manual
• Ambient Temperature: -4-140 °F
• Approvals: ABS, ATEX, CSA, UL
