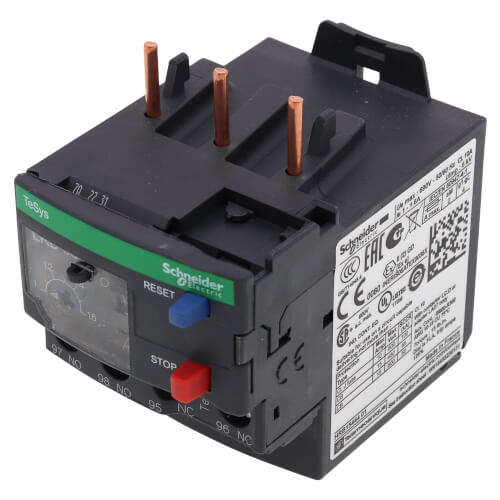

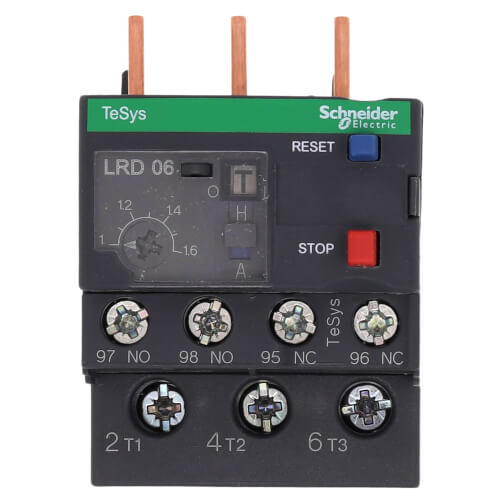

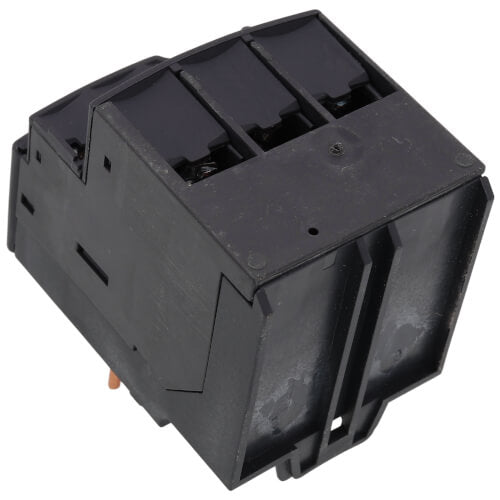

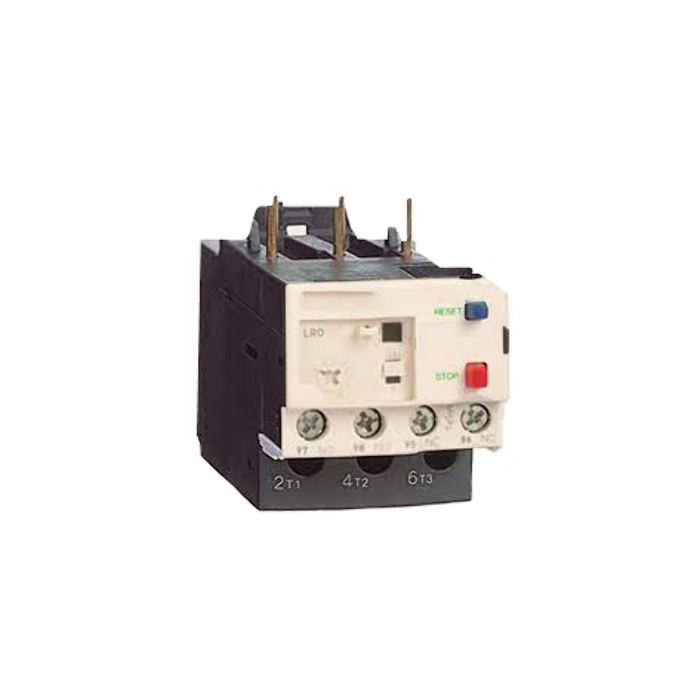

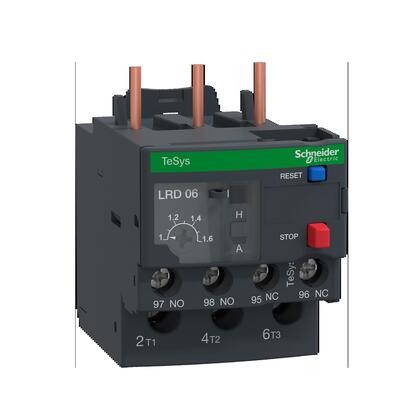

SQUARE D LRD06 TeSys LRD Thermal Overload Relay 1-1.6A Class 10

Product Description

The SQUARE D LRD06 TeSys LRD Thermal Overload Relay provides reliable motor protection. This differential thermal overload relay is designed to prevent motor damage from overheating or overload conditions. Its thermal protection adjustment range allows for settings from one to one point six amperes, making it compatible with various TeSys D contactors including LC1D25, LC1D32, LC1D12, LC1D18, LC1D38, and LC1D09. It works with both AC and DC network types and supports a maximum operational voltage of six hundred ninety volts AC.

• Thermal protection adjustment range from 1 to 1.6 amperes
• Compatible with multiple TeSys D contactors
• Operates in both AC and DC networks

Product Highlights

Product Information

Standard Information

• Brand: SQUARE D
• MPN: LRD06

Technical Specifications

• Relay Application: Motor Protection
• Thermal Protection Adjustment Range: 1 to 1.6 A
• Rated Operational Voltage: 690 V AC
• Network Type: AC, DC
• IP Degree of Protection: IP20
• Temperature Compensation: -4 to 140 °F (-20 to 60 °C)
• Warranty: 18 Months
• Phase: 3
• Poles: 3
