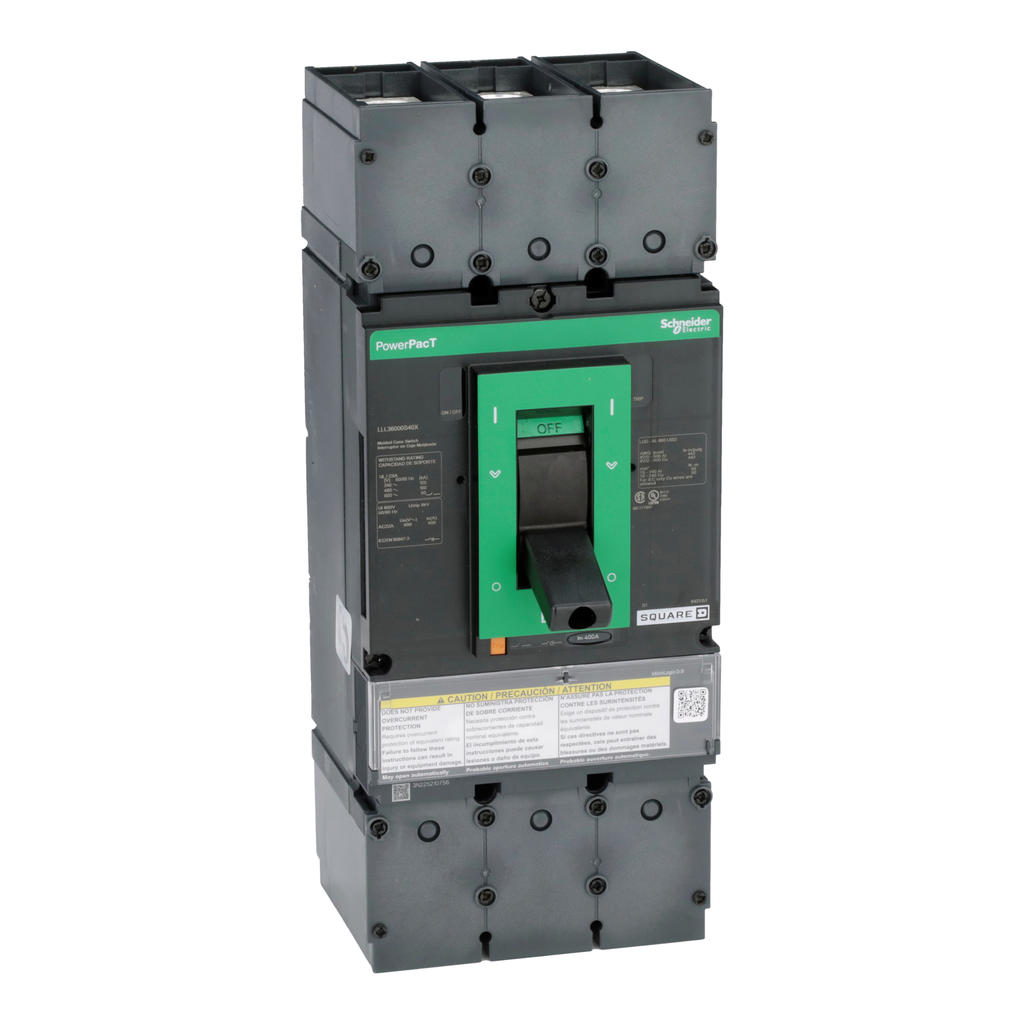

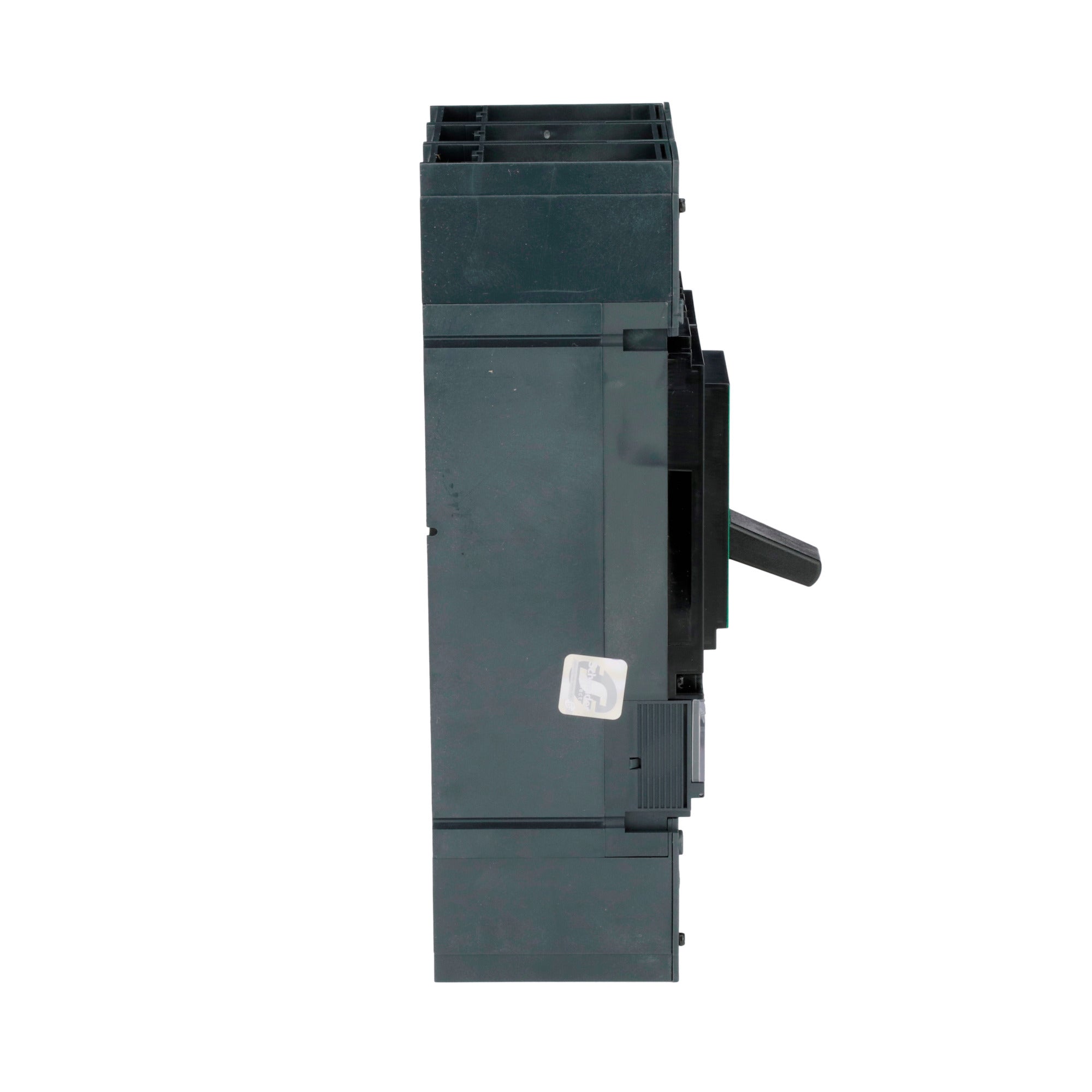

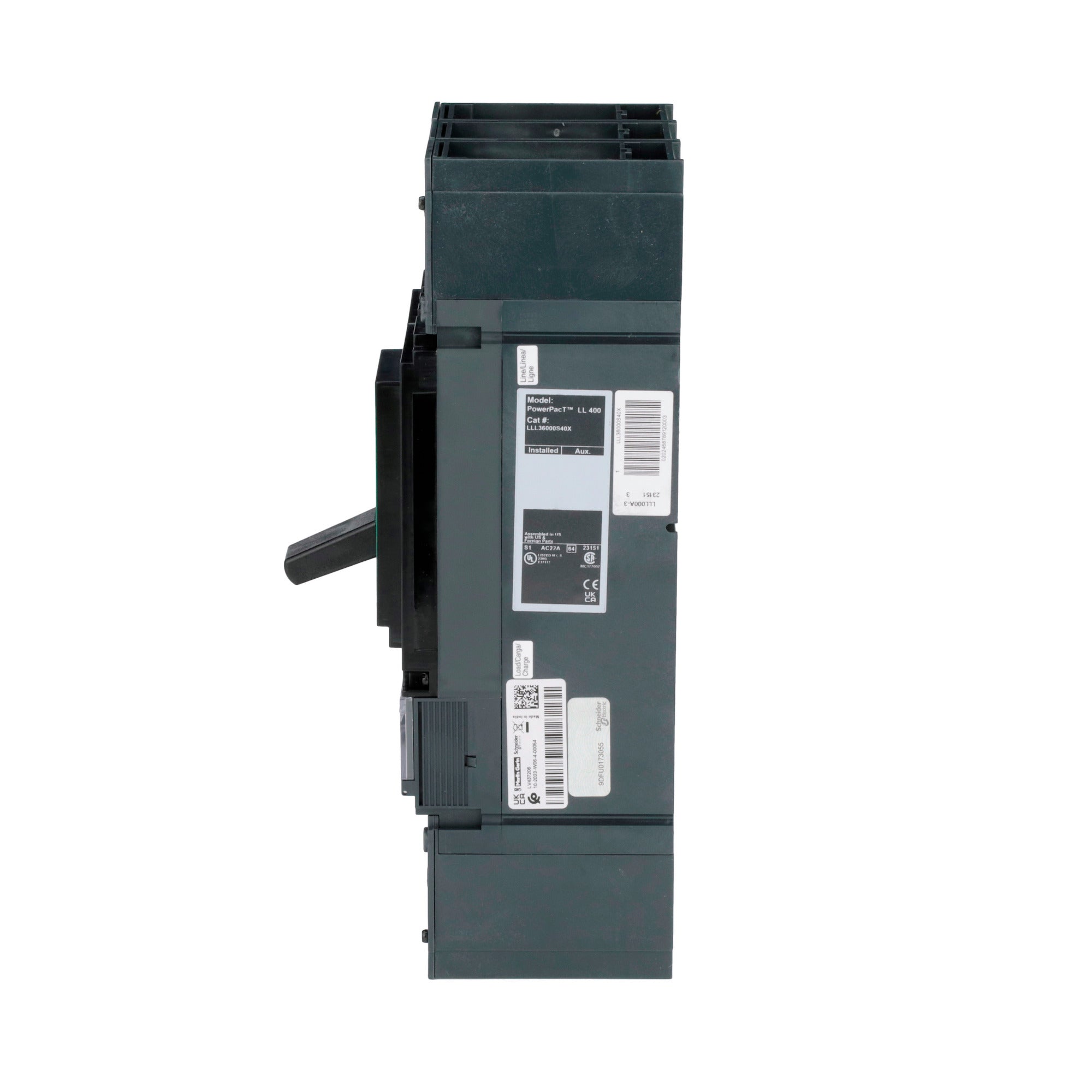

Square D LLL36000S40X Automatic Molded Case Switch 400 Amp 600 Volt 50kA LLL36000S40X

Product Description

The Square D LLL36000S40X is a three-pole automatic molded case switch designed for 400 Amp and 600 Volt applications. This automatic switch acts as a disconnect device, capable of opening and closing circuits under standard operating conditions. The construction is similar to the L-Frame circuit breaker, allowing for the use of the same accessories and connections.

• Short circuit withstand current rating of 50kA at 600VAC
• Factory set, non-adjustable trip point for reliable operation
• Available in various mounting types including unit mount and I-Line

Product Highlights

This molded case switch features lugs on both line and load sides, providing robust connectivity. It requires upstream protection for overload or short circuit conditions, ensuring operational safety in power distribution systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LLL36000S40X
• Voltage: 600 Volt
• Amperage: 400 Amp
• Trip Type: Magnetic
• Number of Poles: 3
• Height: 13.38 Inch
• Width: 5.51 Inch
• Depth: 6.61 Inch
