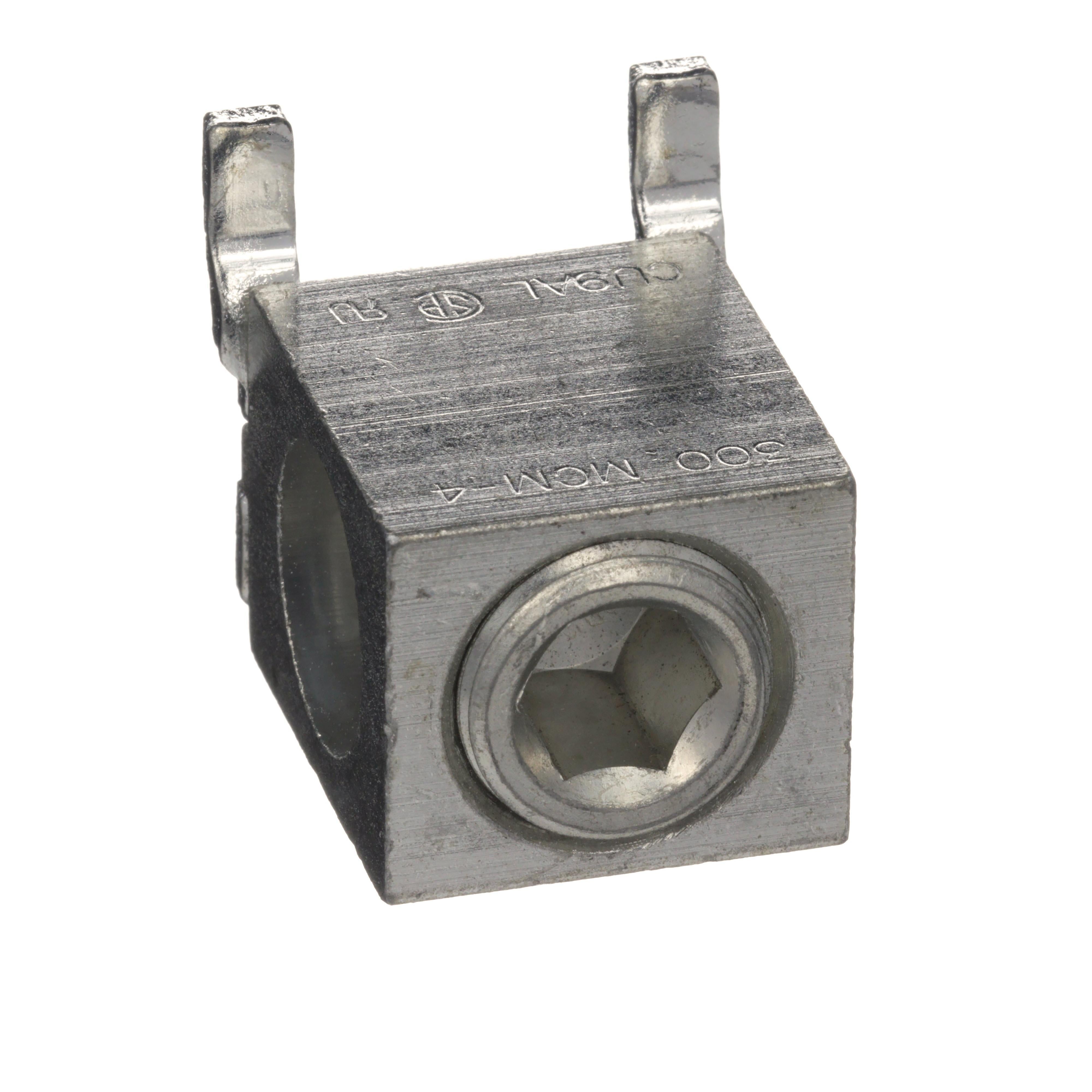

Square D LK225AN QO/Homeline Neutral Lug Kit, 150A to 225A

Product Description

The Square D LK225AN QO Circuit Breaker Load Centers are Underwriters Laboratories (UL) Listed and CSA rated panelboards. Designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. Accommodates #4 AWG to 300kcmil, Aluminum or Copper conductors. Pack of 1 Unit.

• UL Listed
• CSA rated panelboards
• Protects electrical systems

Product Highlights

The Square D LK225AN neutral lug kit is designed for QO and Homeline load centers, ensuring reliable protection for electrical systems in diverse applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: LK225AN
• Country of Origin: Mexico

Technical Specifications

• Type: Mechanical Lugs
• Color: Gray
• Height: 1 Inches
• Length: 5 Inches
• Material: Steel
• Connection: Mechanical
• Insulation: Non-Insulated
• Voltage Rating: 240 VAC
• Amperage Rating: 150 to 225 Amperes
• Country of Origin: US
• Number Of Mounting Holes: 2
• Conductor Range (Main/Primary): 4 AWG to 2/0
• Brand: Square D
• Amperage: 225 Amp
• Sub Brand: QO
• Cable Size: #4-300 AWG/KCMIL(AL/CU)
• Applications: LOAD CENTER
• Line Rated Current: 225 A
• Conductor Size: 4 AWG to 300 KCMIL (Aluminum/Copper)
• Conductor Material: Copper/Aluminum
• Used On: Homeline Circuit Breaker and Loadcenter
• Item: Kit Neutral Lug
• Features: Mercury Free
• Product Type: Kit Neutral Lug
• Accessory Type: Kit Neutral Lug
• Range Of Product: QO
• Product Or Component Type: lug kit
• Tightening Torque: 35 lb.in, AWG 4...300 kcmil, aluminium/copper || lugs 35 lb.in, AWG 4...300 kcmil, aluminium/copper || 250 lb.in
• Mercury Free: Yes
• Suitable For: Interior
• Current Type: AC
• Voltage: Unknown
• Number in Pack: 1
• Number of Outlets: 1
• Box Shape: Square
• Finish: Aluminum
• Mounting Style: Panel
• Number of Gangs: 1
• Maximum Amperage: 150A-225A
• Current Rating: 150-225A
• Number of Phases: 1
• Number of Spaces: 1
• Electrical Connection: Screw Terminal
• Model: Square D LK225AN
• Number of Poles: 1
• Application: Commercial
• Suitable For Use With: QO Load Center, QO™ Load Center
• UNSPSC: 39121101
• Manufacturer: Schneider Electric
• Made in USA: Yes
• UPC: 785901522492
• GTIN: 00785901522492
• MDM Pkg GTiN: 00785901522492
• Number of Items: 1.0
