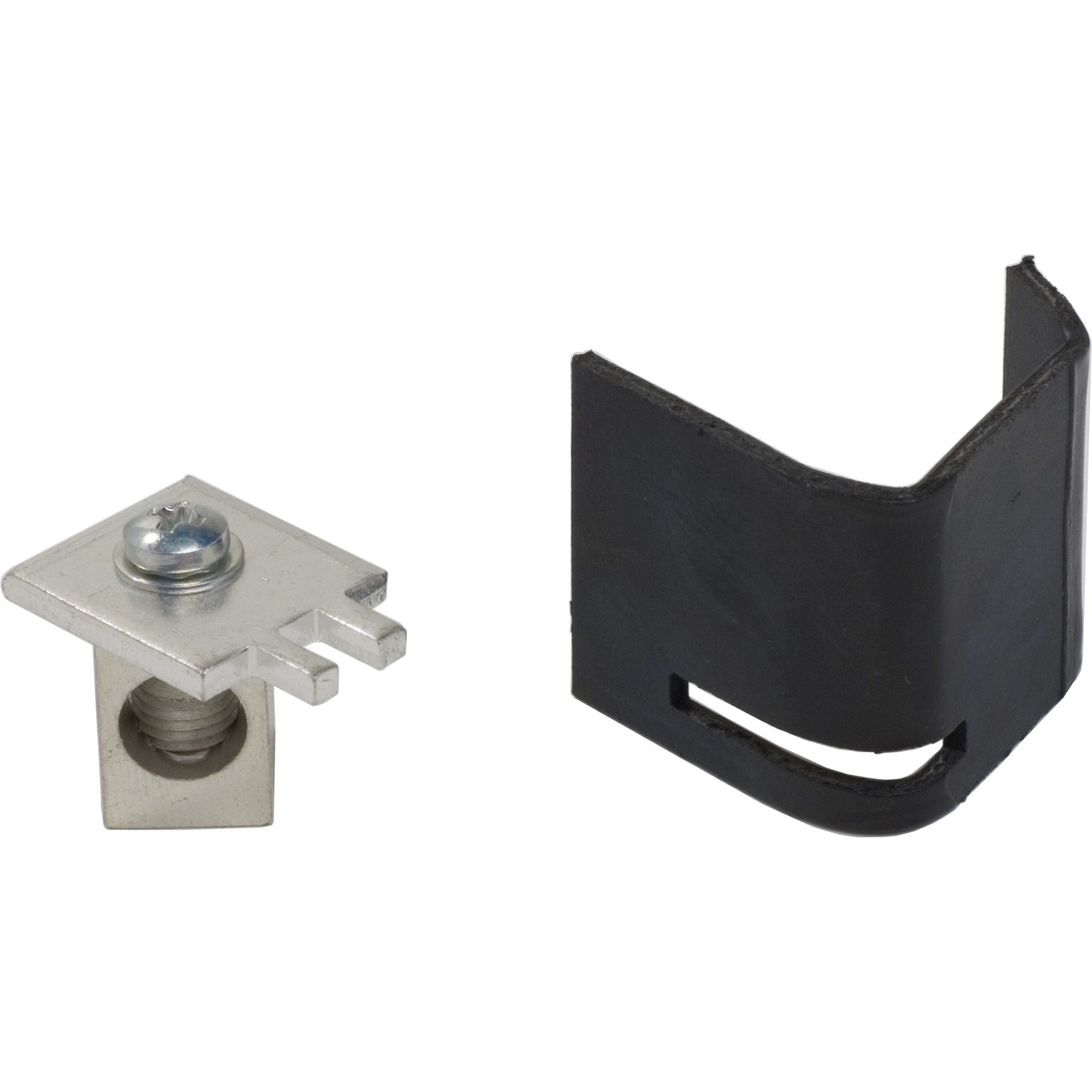

Square D LK125AN Load Center Ground/Neutral Lug 125A

Product Description

The Square D LK125AN Load Center Ground/Neutral Lug is designed for QO Circuit Breaker Load Centers. This lug kit is Underwriters Laboratories (UL) Listed and CSA rated. It is designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people.

• Suitable for use with QO and Homeline 125 A Load Center and Circuit Breaker
• Accommodates #12-2/0 AWG (AL) and #14-2/0 AWG (CU) cable sizes
• Designed for load center applications

Product Highlights

The LK125AN lug kit ensures secure ground and neutral connections in load center applications, enhancing safety and reliability.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: LK125AN
• Country of Origin: Mexico

Technical Specifications

• Type: Load Center Neutral Lug Kit
• Brand: Square D
• Amperage: 125 Amp
• Sub Brand: QO
• Cable Size: #12-2/0 AWG(AL) #14-2/0 AWG(CU)
• Product UPC: 78590137987
• 12-Digit UPC: 785901379874
• Applications: LOAD CENTER
• Line Rated Current: 125 A
• Catalog Number: LK125AN
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Made in USA: No
• RoHS URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423254114&lang=en-us
• UPC: 785901379874
• GTIN: 00785901379874
• Conductor Size: 14 to 2/0 AWG (Aluminum/Copper)
• Conductor Material: Copper/Aluminum
• Used On: Homeline Circuit Breaker and Loadcenter
• Item: Lug Kit
• Features: Mercury Free
• Product Type: Lug Kit
• Accessory Type: Lug Kit
• Range Of Product: QO
• Product Or Component Type: lug kit
• Tightening Torque: 35 lb.in, AWG 14...AWG 10, aluminium/copper || lugs 35 lb.in, AWG 14...AWG 10, aluminium/copper || lugs 40 lb.in, AWG 8, aluminium/copper || 40 lb.in, AWG 8, aluminium/copper || lugs 40 lb.in, AWG 6...AWG 4, aluminium/copper || lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || 40 lb.in, AWG 6...AWG 4, aluminium/copper || terminal screw 30 lb.in || 50 lb.in, AWG 3...AWG 2/0, aluminium/copper || 30 lb.in
• Conductor Range: 12 to 2/0 AWG, 14 to 2/0 AWG Aluminum/Copper
• Suitable For Use With: QO and Homeline 125 A Load Center and Circuit Breaker
• Alternative Part Number: 8017803
• MFR #: LK125AN
• Zoro #: G3156651
• UPC #: 785901379874
• Amps: 125A
• Max. Wire Size: AWG 2/0, aluminum or copper
• Min. Wire Size: AWG 14
• Amperage Rating: 125 A
• Application: load center
• ARRA Compliant: N
• Buy American Compliant: N
• Harmonization Tariff Schedule Code: 8536904000
• Standards: UL ListedRoHS CompliantARRA CompliantBuy American Act Compliant, California Provision: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• UNSPSC: 39121101
• UPC 11: 78590137987
• UPC 12: 785901379874
