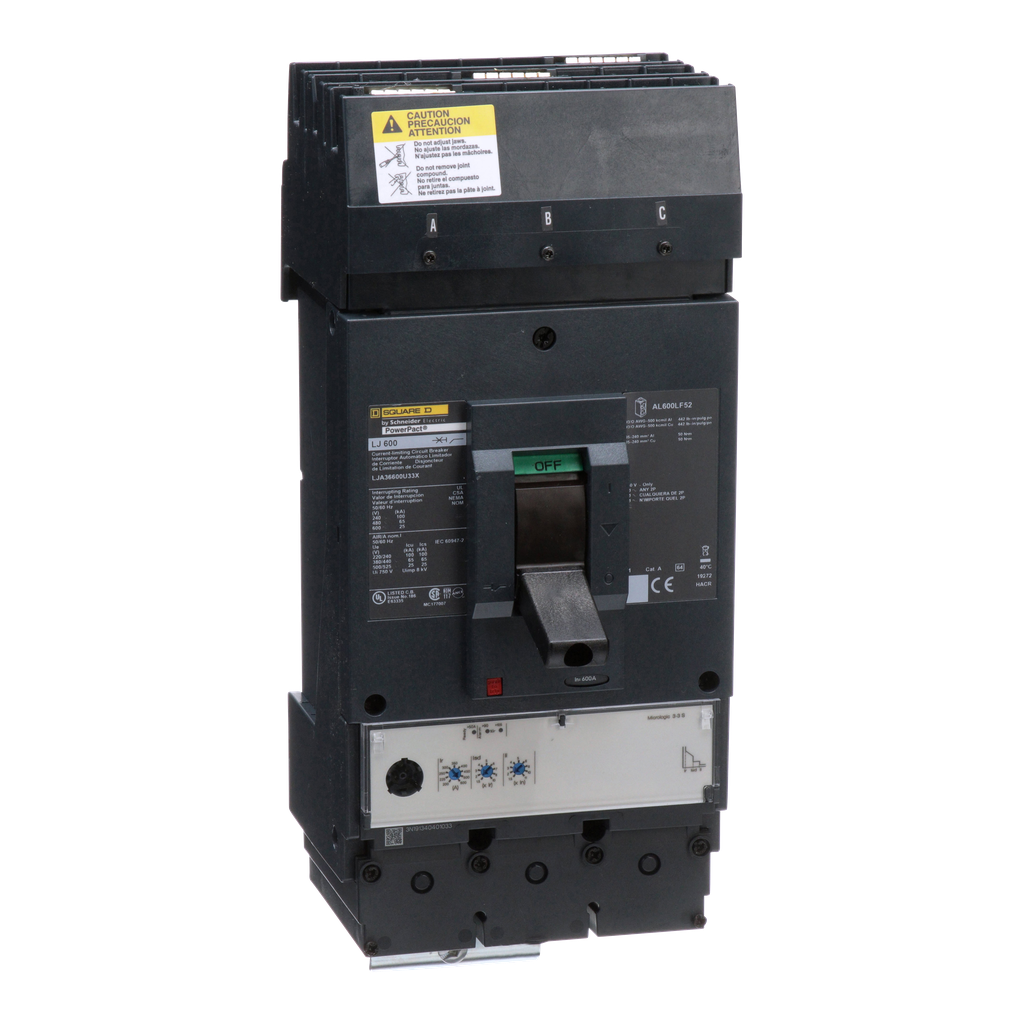

Square D LJA36600U33X Circuit Breaker PowerPact L 600A 3 Pole 25kA I-Line MicroLogic 3.3S

Product Description

The Square D LJA36600U33X is a circuit breaker designed for protecting electrical systems from overloads and short circuits. This device is part of the PowerPacT L-Series, featuring an interrupting rating of twenty-five kiloamperes at six hundred volts AC. Its design includes electronic trip units and dual-break rotating contacts to minimize peak current during short circuit events.

• Interrupting rating of 25kA at 600VAC
• Features MicroLogic Standard with 3.3S trip unit
• Suitable for I-Line terminations and mechanical lugs

Product Highlights

This circuit breaker ensures reliable performance with a continuous current rating of eighty percent in an ABC phase configuration. It is compliant with UL, CSA, NOM, and IEC standards, making it a safe choice for various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LJA36600U33X
• Voltage: 600 Volt
• Amperage: 600 Amp
• Number of Poles: 3 Pole
• Trip Type: Electronic, Standard, MicroLogic 3.3S, LSI
• Frame Type: J
• Country of Origin: USA
• Warranty Length: 18 months
