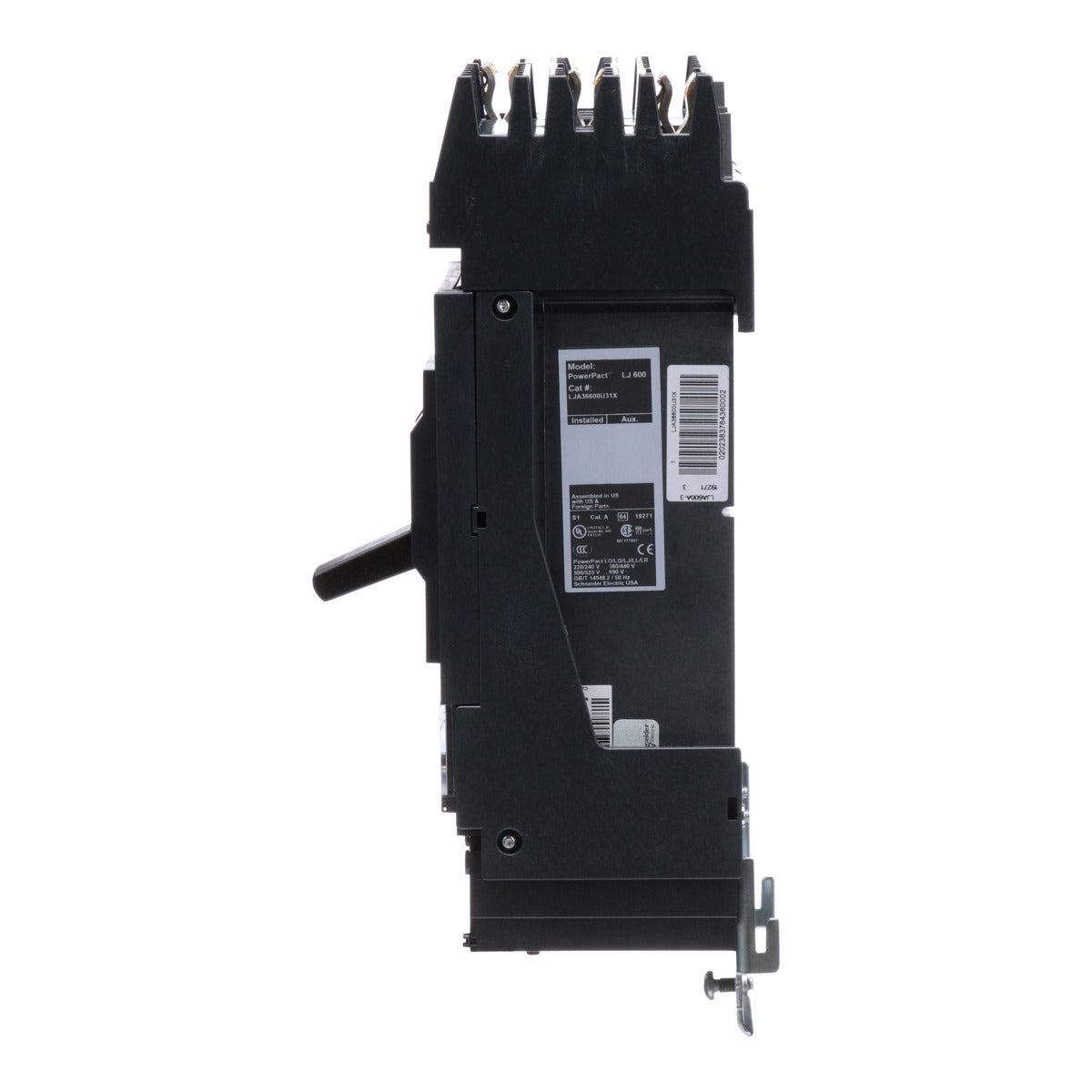

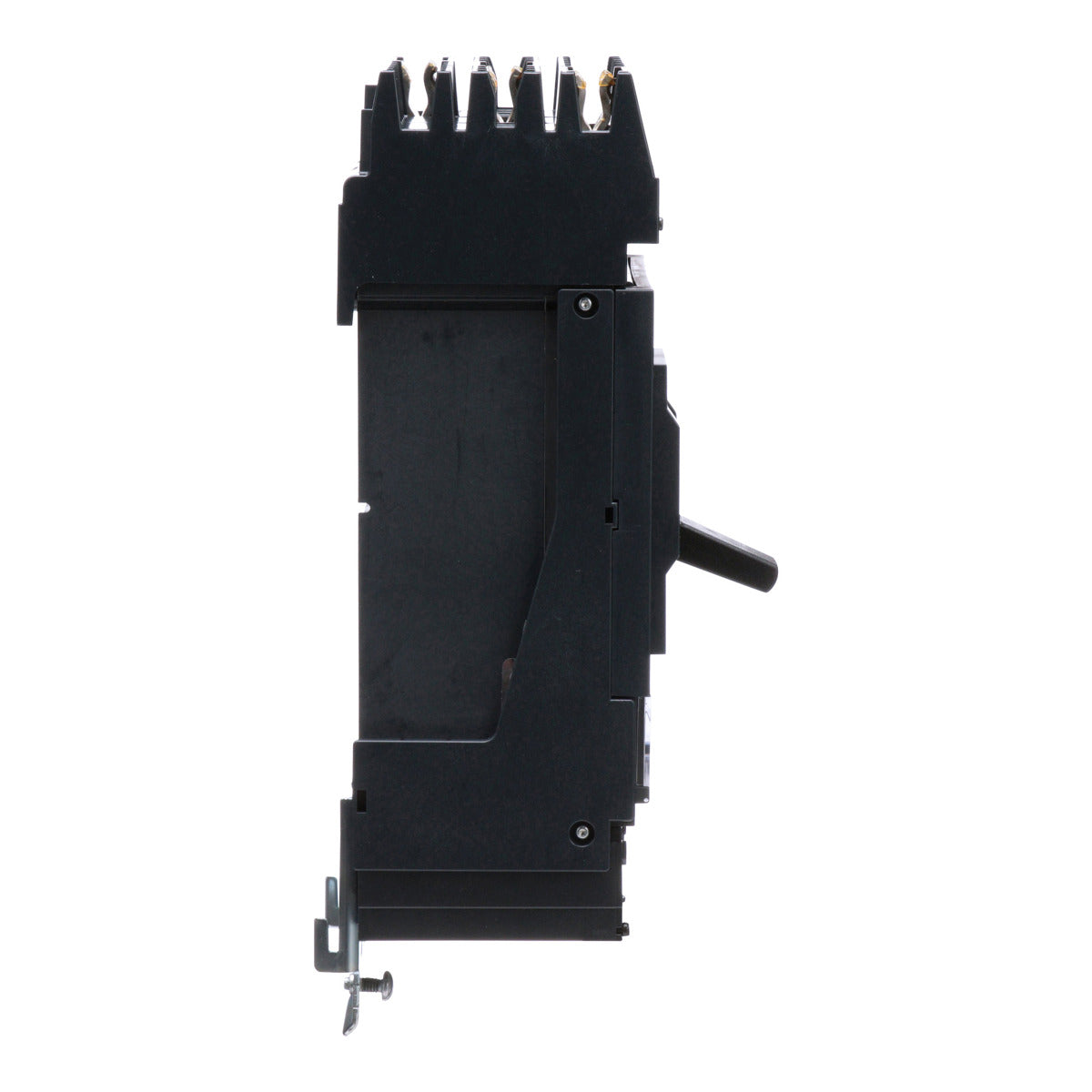

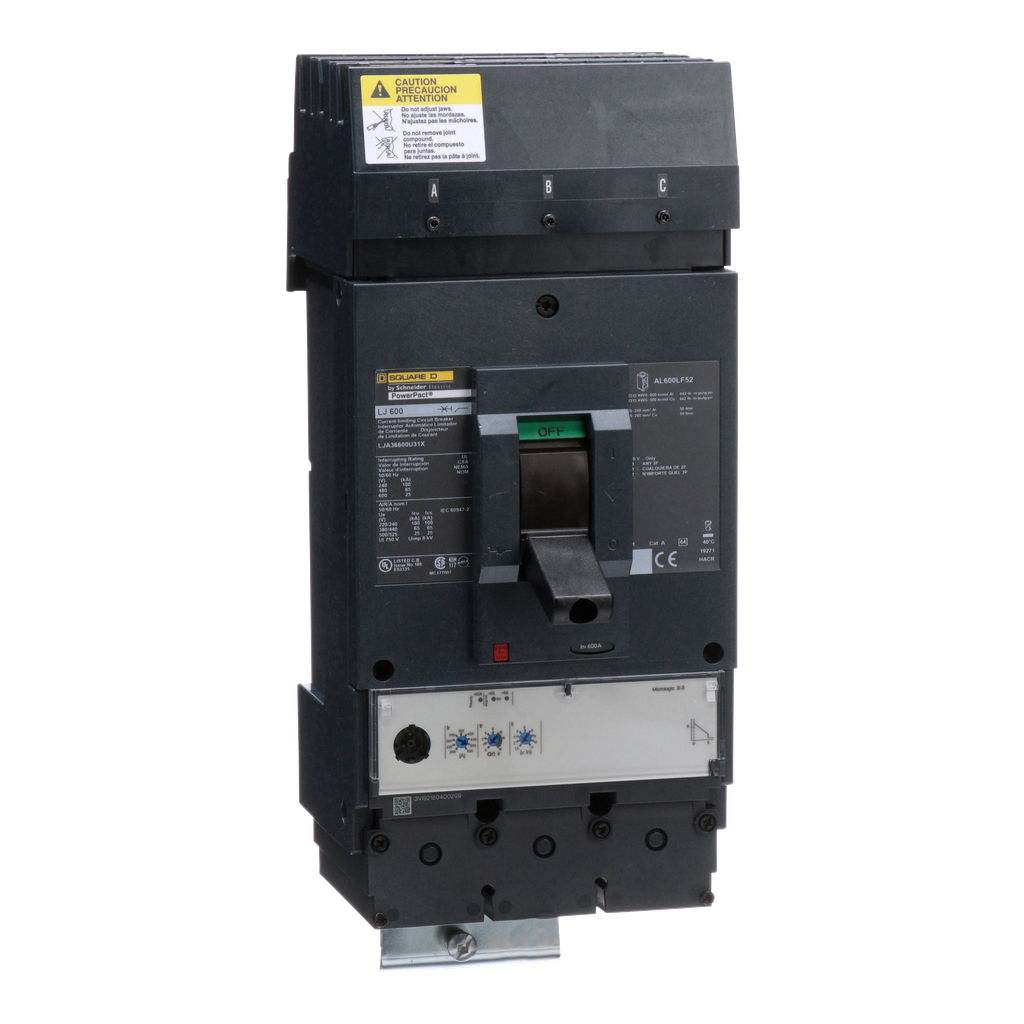

Square D LJA36600U31X Molded Case Circuit Breaker 600 Volt 600 Amp 3 Pole 25kA

Product Description

Square D LJA36600U31X is a molded case circuit breaker that effectively protects electrical systems from overloads and short circuits. This device features electronic trip units and dual-break rotating contacts to minimize peak current during faults. It includes a push-to-trip button for manual operation and is suitable for various configurations, including 3 and 4-pole unit mount, I-Line, and drawout constructions. The unit has a rated current of 600 Amps and an interrupting capacity of 25 kA at 600 Volts AC.

• Rated voltage: 600 Volt
• Interrupting capacity: 25 kA
• Number of poles: 3

Product Highlights

This circuit breaker ensures compliance with UL, CSA, NOM, and IEC standards, and it is CE marked. It includes I-Line terminations on the line side and mechanical lugs on the load side. The continuous current rating, when connected in an ABC phase configuration, is at 80%.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LJA36600U31X
• Voltage: 600 Volt
• Amperage: 600 Amp
• Actuator: Toggle
• Trip Type: Electronic, MicroLogic 3.3
• Frame: L-Frame
• Weight: 13.65 lb
• Dimensions: Depth 110 mm, Width 140 mm, Height 6 inches
• Country of Origin: Canada
