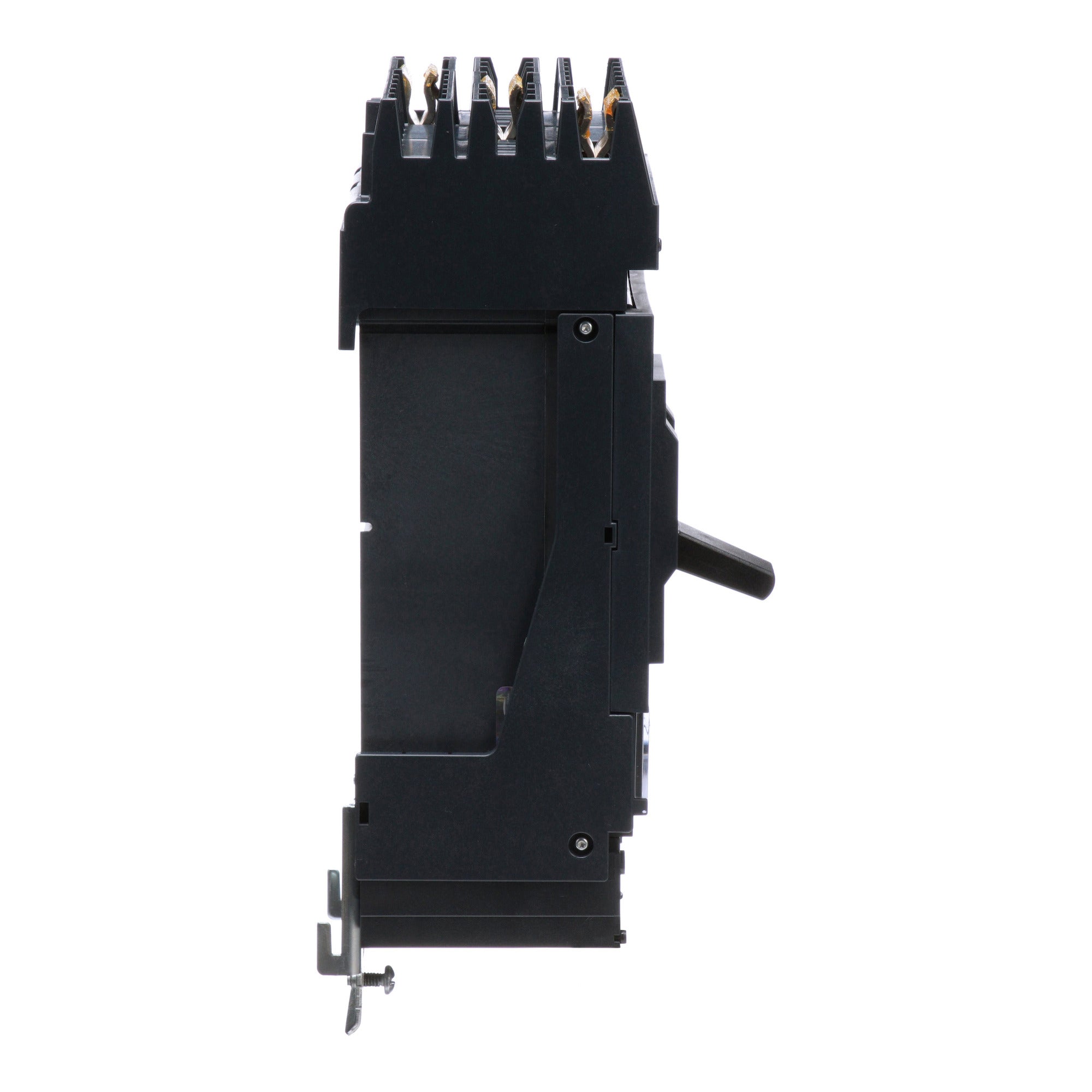

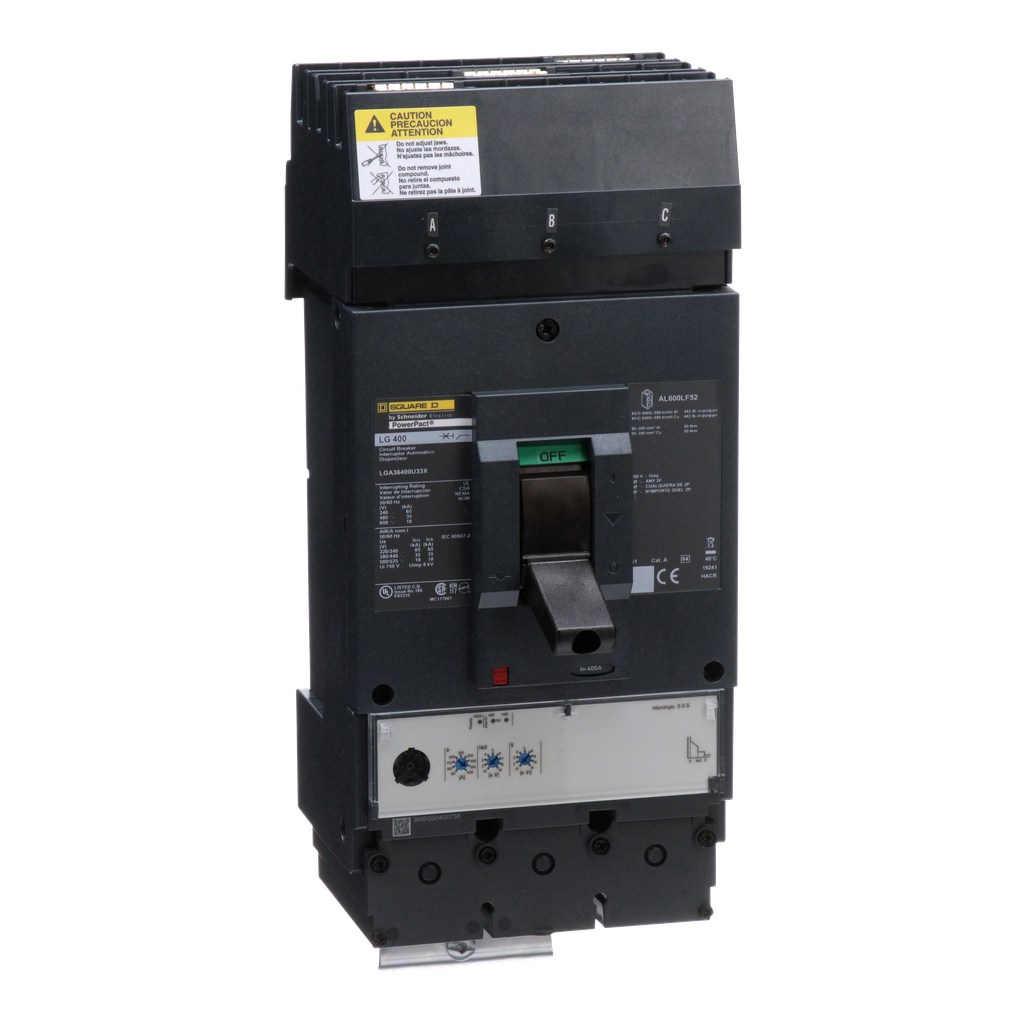

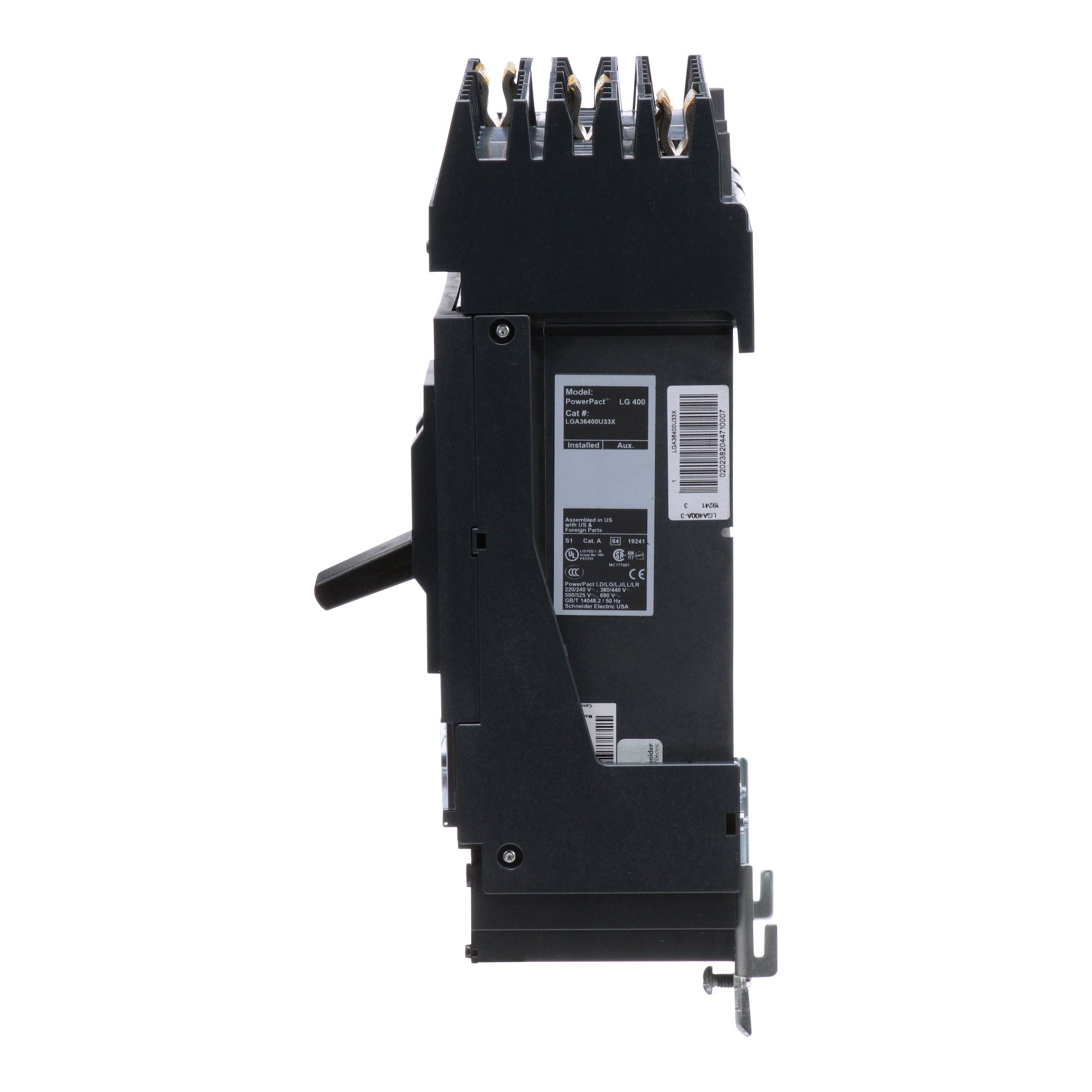

Square D LGA36400U33X Circuit breaker PowerPacT L 400A 3 Pole 600VAC 18kA

Product Description

The Square D LGA36400U33X is a 400 Amp molded case circuit breaker designed for electrical safety and reliability. This unit is rated for six hundred volts and equipped with electronic trip units. It serves to protect electrical systems from overloads and short circuits effectively.

• Rated up to eighteen kiloamperes interrupting capacity at six hundred volts.
• Compliant with UL, CSA, NOM, and IEC standards.
• Includes a MicroLogic Standard trip unit with an LSI function for enhanced protection.

Product Highlights

This circuit breaker features an integral push-to-trip button and is suitable for various mounting options including I-Line. Designed for reliable performance, it maintains a continuous current rating at eighty percent with an ABC phase connection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LGA36400U33X
• Voltage: 600 Volt
• Amperage: 400 Amp
• Interrupt Rating: 18kA
• Trip Type: Electronic, Standard, MicroLogic 3.3S, LSI
• Number of Poles: 3 Pole
• Depth: 110 mm
• Width: 140 mm
• Height: 6 inch
• Net Weight: 6.2 kg
• Country of Origin: USA
