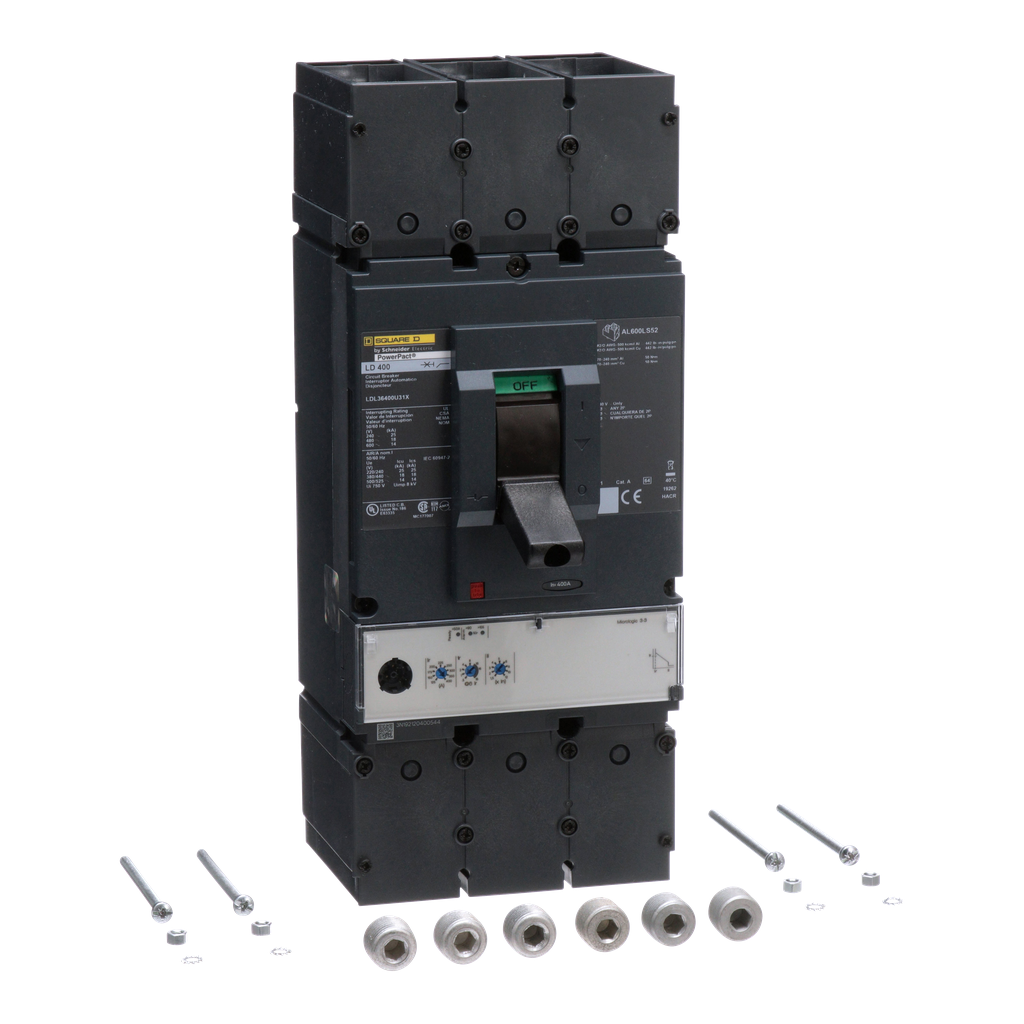

Square D LDL36400U31X 3-Pole 400 Amp 600 Volt Electronic Trip Molded Case Circuit Breaker

Product Description

The Square D LDL36400U31X is a three-pole circuit breaker rated for four hundred amps and six hundred volts, designed to safeguard electrical systems from damage caused by overloads and short circuits. This electronic trip molded case circuit breaker efficiently manages peak current during faults through its dual-break rotating contacts. It features an integral push-to-trip button for manual operation.

• Interrupt rating of fourteen kiloamperes at six hundred volts AC
• MicroLogic Standard trip unit with LI function
• Compliance with UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker is suitable for distribution applications and is available in several mounting types, including unit mount. It supports a continuous current rating of eighty percent and includes lugs on both the line and load sides.

Product Information

Standard Information

• Manufacturer: Square-D / Schneider
• Product Name: Square D LDL36400U31X

Technical Specifications

• Type: Circuit breaker
• Voltage: 600 Volt
• Amperage: 400 Amp
• Frame: L- FRAME
• Number of Poles: 3 Pole
• Net Weight: 6.2 kg
• Width: 140 mm
• Height: 340 mm
