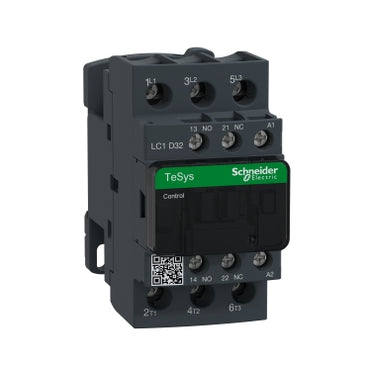

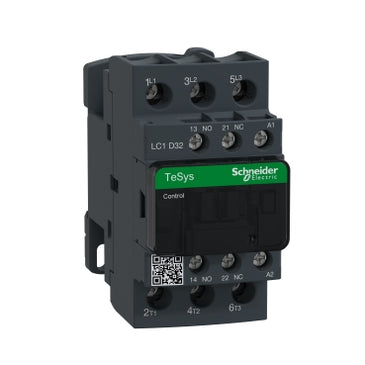

SQUARE D LC1D32U7 Tesys D Contactor 32A 240V AC Coil

Product Description

The SQUARE D LC1D32U7 is a TeSys D contactor designed for motor control applications. It features a three-pole, non-reversing configuration with a coil rated for 240 volts AC. This contactor, which can handle up to thirty-two amperes, is ideal for use in various industrial control systems. It can be mounted on DIN rail or directly to panels, making it versatile for installation.

• Operates with an inductive load up to 150 full-load amps
• Meets UL, CSA, IEC, CCC, EAC, and Marine standards
• Compatible with resistive loads up to 200 amps

Product Highlights

The LC1D32U7 is a reliable component for creating motor starters in industrial settings, providing robust performance and compliance with major safety standards.

Product Information

Standard Information

• Type: Contactor
• Application: Motor control

Technical Specifications

• Rated Operational Voltage: 240 V AC
• Rated Operational Current: 32 A
• Control Circuit Voltage: 240 V AC 50/60 Hz
• Poles: 3P
• Dimensions: Height 3.35 inches, Width 1.77 inches, Depth 3.62 inches
• Weight: 0.83 lb
• Maximum Horse Power Rating: 5 hp at 230/240 V
• IP Protection Rating: IP20
• Operating Temperature Range: -40 to 140°F
