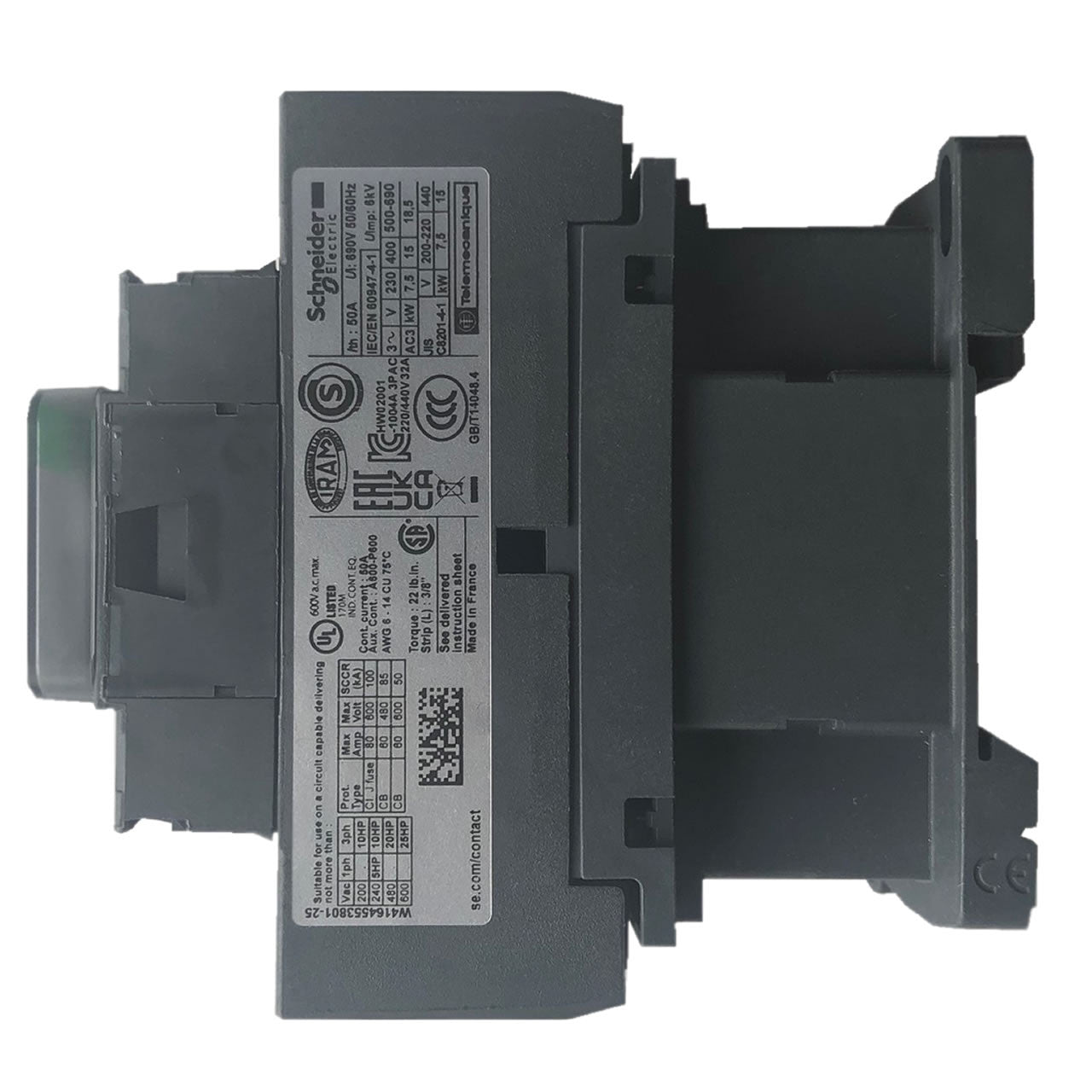

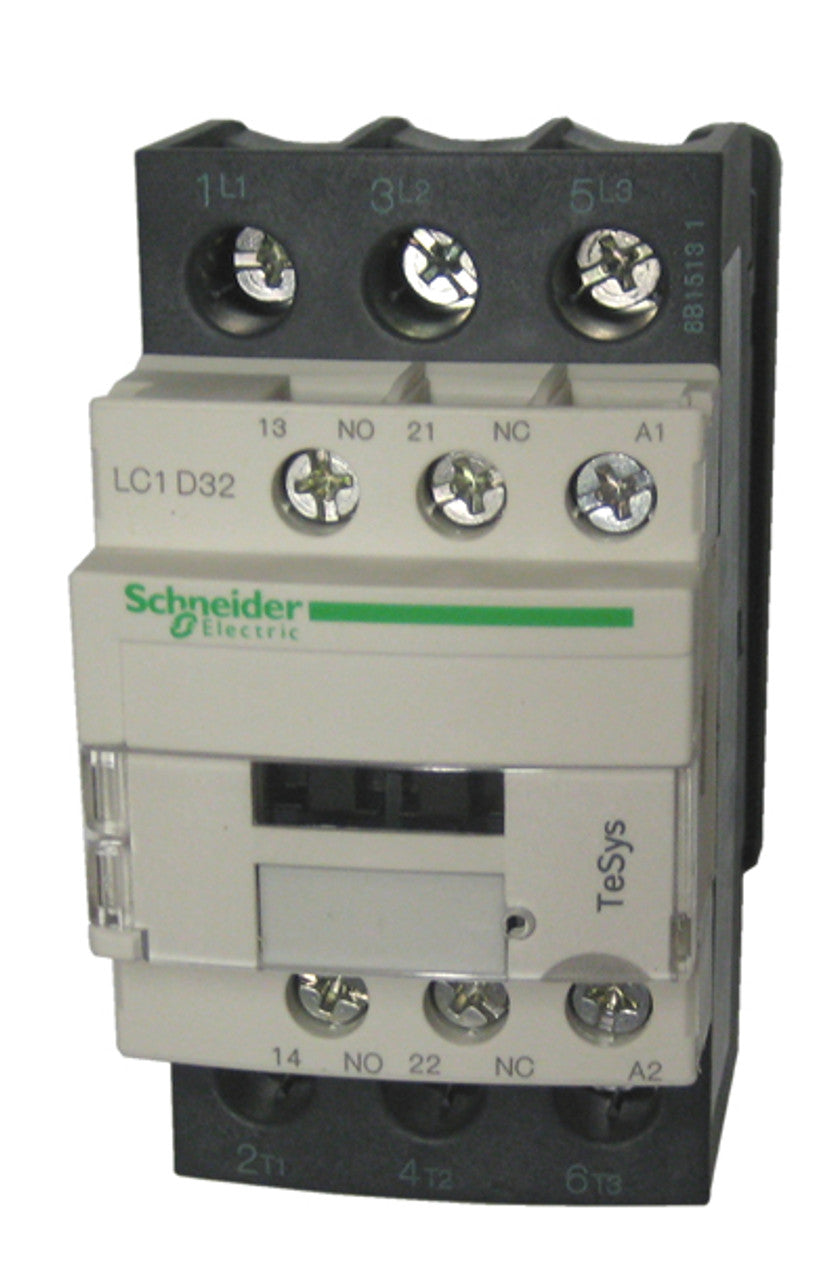

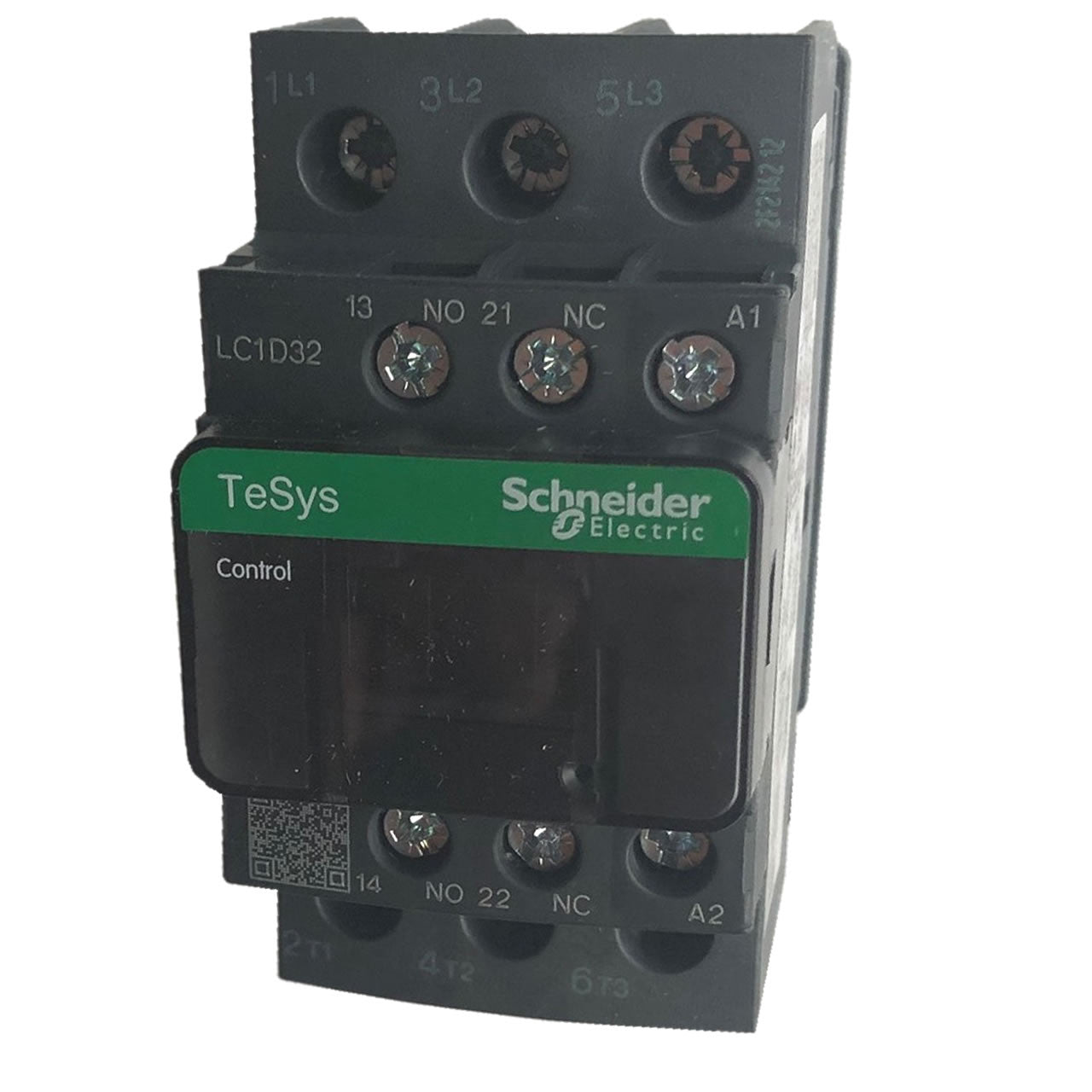

SQUARE D LC1D32BD Contactor 32 Amp 24V DC

Product Description

The Square D LC1D32BD is a 32 Amp, three-pole IEC contactor suitable for various control systems and motor starters. This contactor is designed for inductive motor uses and resistive loads, making it versatile for different applications. It can be mounted on a DIN rail or directly on a panel, offering flexibility in installation.

• Offers a 24 V DC coil with a transient suppressor module.
• Includes one normally open and one normally closed auxiliary contact as standard.
• Compatible with international standards for horsepower and kilowatt ratings.

Product Highlights

The LC1D32BD is a reliable choice for HVAC systems and industrial applications, providing significant control over motor operations.

Product Information

Standard Information

• Coil Voltage: 24 V DC
• Contact Configuration: 1 normally open + 1 normally closed

Technical Specifications

• Contact Rating: 10 A 60 AC signalling circuit; 50 A 60 AC power circuit
• Operating Cycles: 3600 cycles/hour at 60 degrees Celsius
• Operating Temperature: -40 to 70 degrees Celsius
• Storage Temperature: -60 to 80 degrees Celsius
• Type: Contactor, direct on-line contactor
• Voltage: 300 Volt
• Wattage: 2 Watt AC-3; 5 Watt AC-1
• AMP Rating: 32 AMP AC-3; 50 AMP AC-1
• Horsepower: 20 H.P. at 460 Volt
• Terminals: Screw
• Poles: 3NO
• Approvals: CSA, UL
