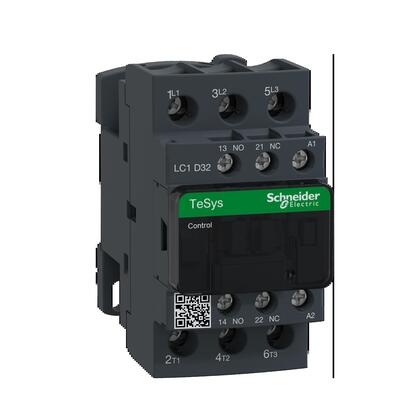

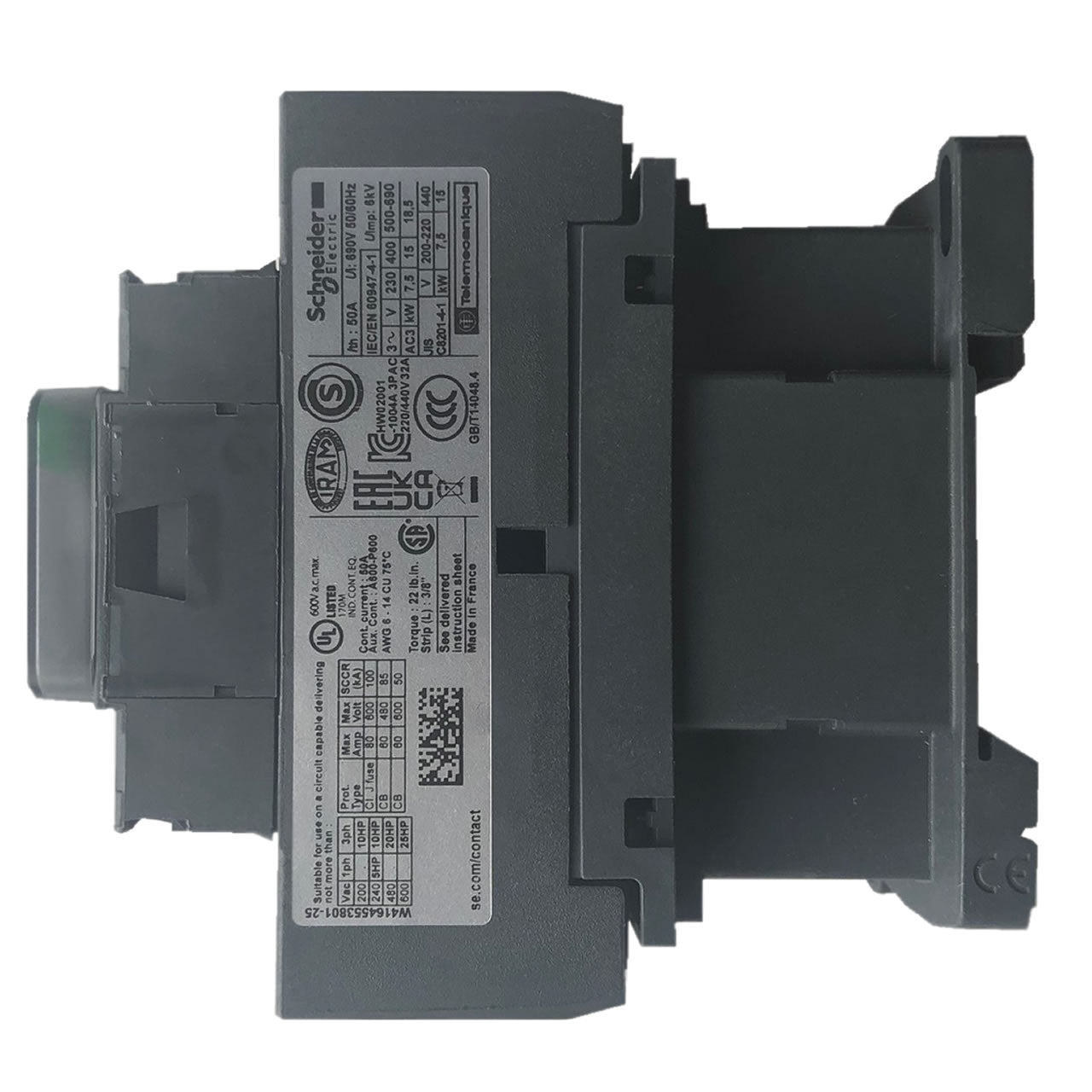

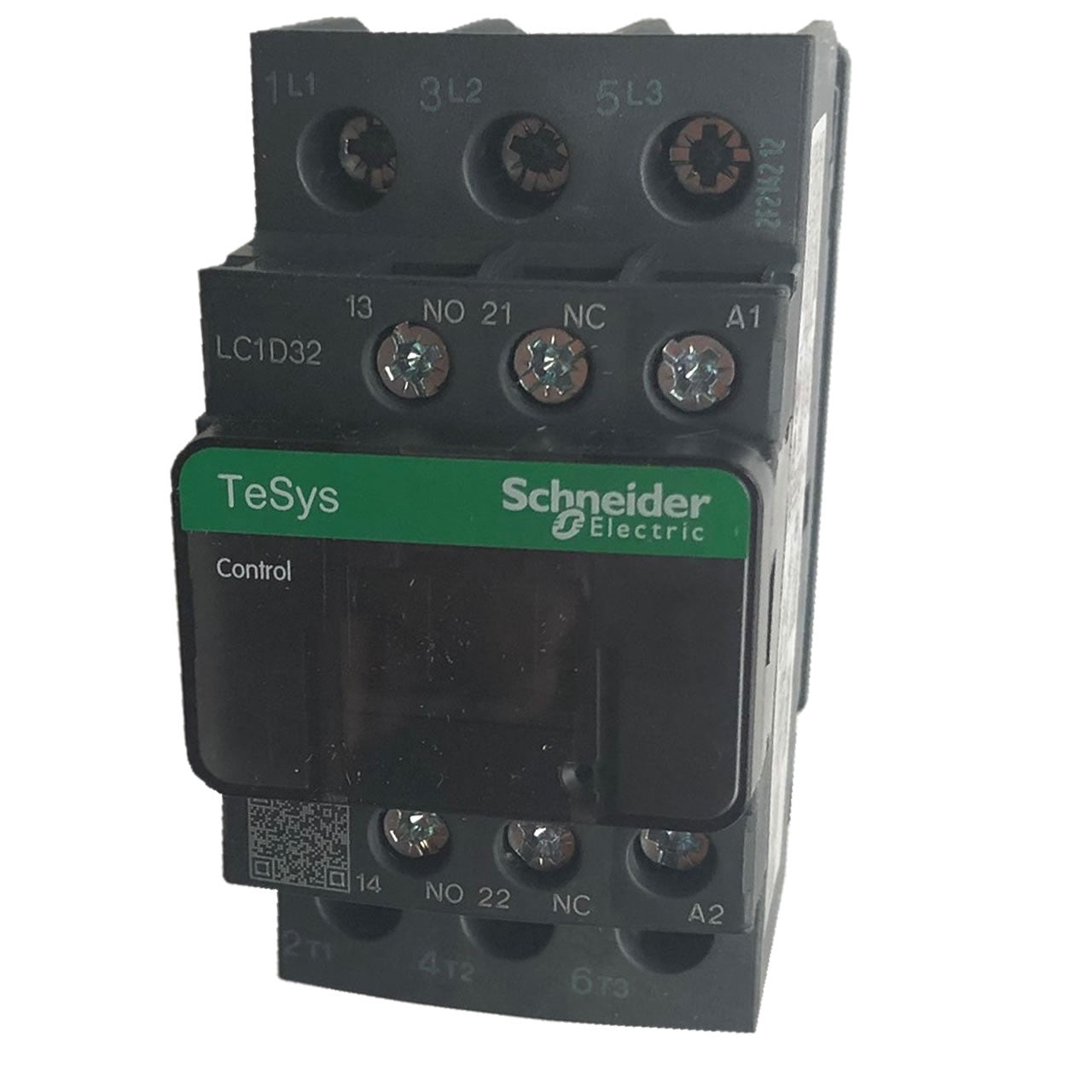

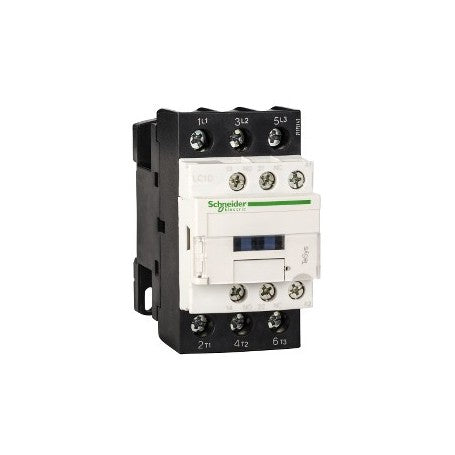

SQUARE D LC1D32B7 Tesys D IEC Contactor 32 A 3 P 20 HP at 480 VAC

Product Description

The SQUARE D LC1D32B7 is a TeSys D IEC contactor designed for motor control applications. It is rated for 32 A and operates with three poles, supporting up to 20 horsepower at four hundred eighty volts AC. This contactor has a non-reversing function and includes a control coil voltage of twenty-four volts, suitable for fifty or sixty hertz operation.

• Rated operational current of thirty-two A at up to four hundred forty volts AC AC-3.
• Includes one normally open (NO) and one normally closed (NC) auxiliary contact.
• Utilizes screw clamp terminals for both control and power circuits.

Product Highlights

This contactor is ideal for various industrial and commercial applications, ensuring reliable performance in controlling motors and other resistive loads.

Product Information

Standard Information

• Product Type: Contactor
• Device Short Name: LC1D

Technical Specifications

• Rated Operational Voltage: Power circuit up to six hundred ninety volts AC
• Control Circuit Voltage: Twenty-four volts AC at fifty or sixty hertz
• Rated Operational Current: Thirty-two A at less than sixty degrees Celsius
• Motor Power: Up to twenty horsepower for three-phase motors
• Auxiliary Contact Composition: 1 NO + 1 NC
• Weight: 0.375 kg
• Dimensions: Height eighty-five mm, Width forty-five mm, Depth ninety-two mm
• IP Protection: IP20 front face
