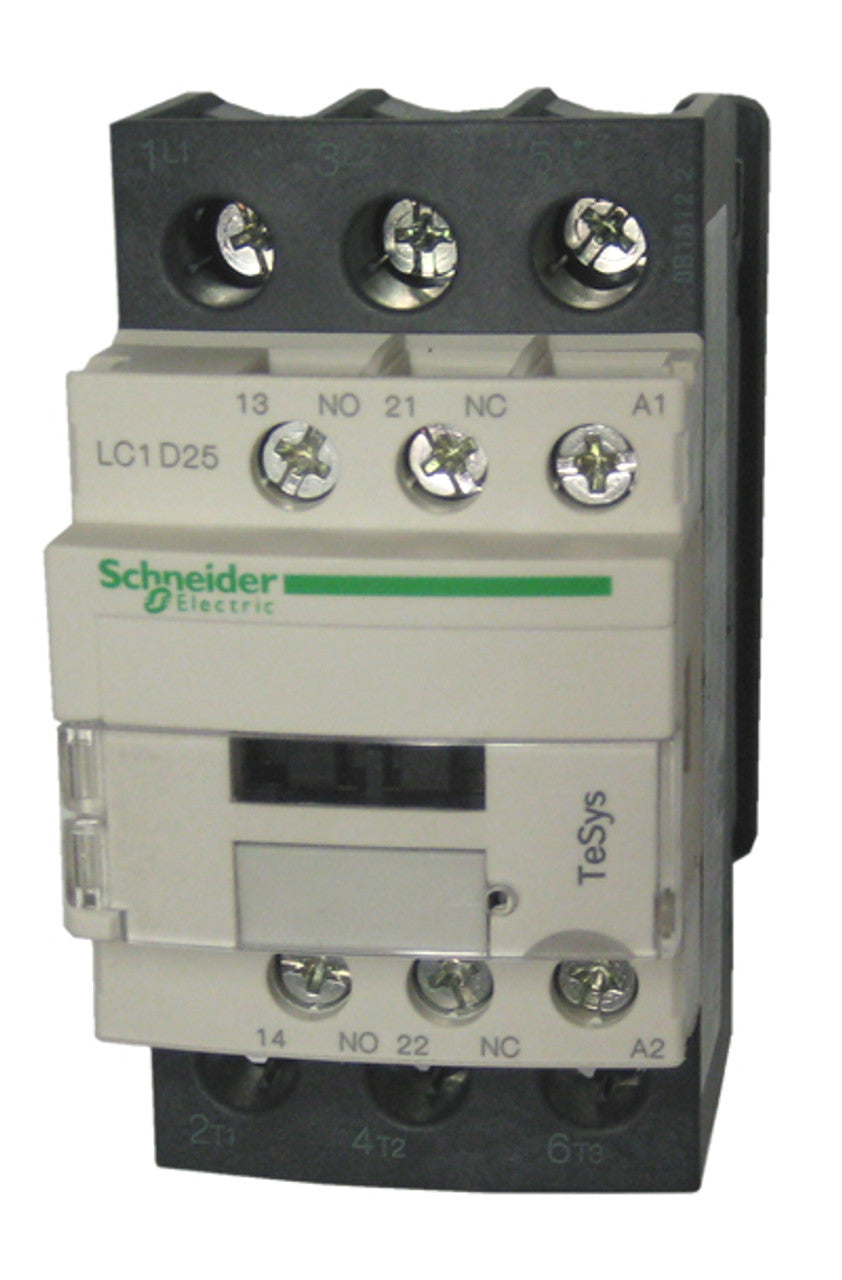

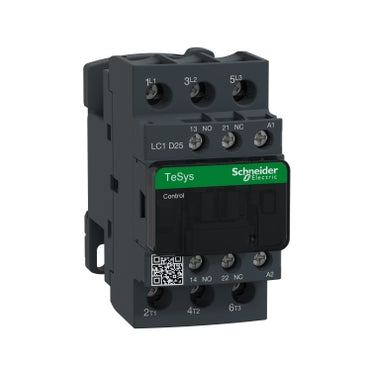

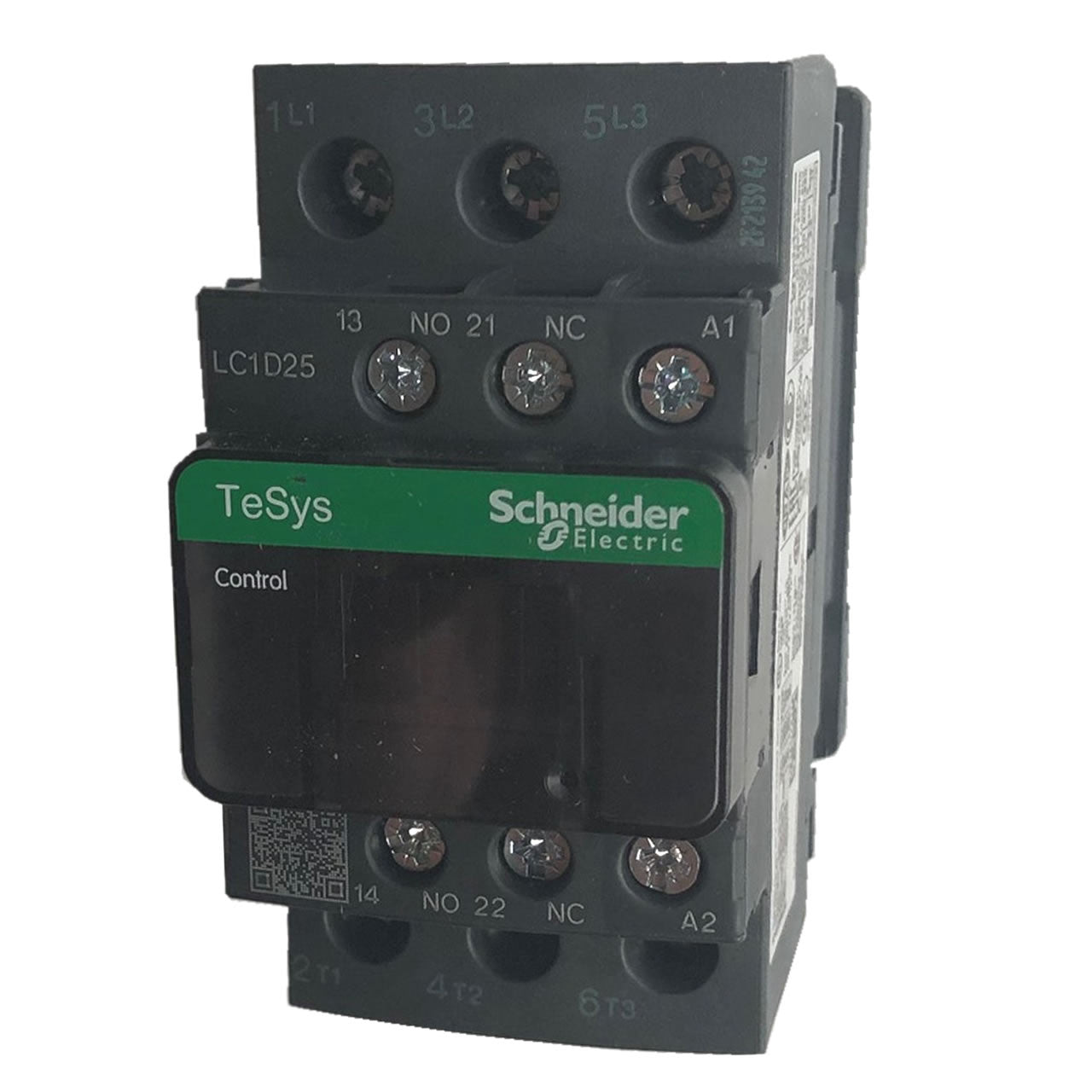

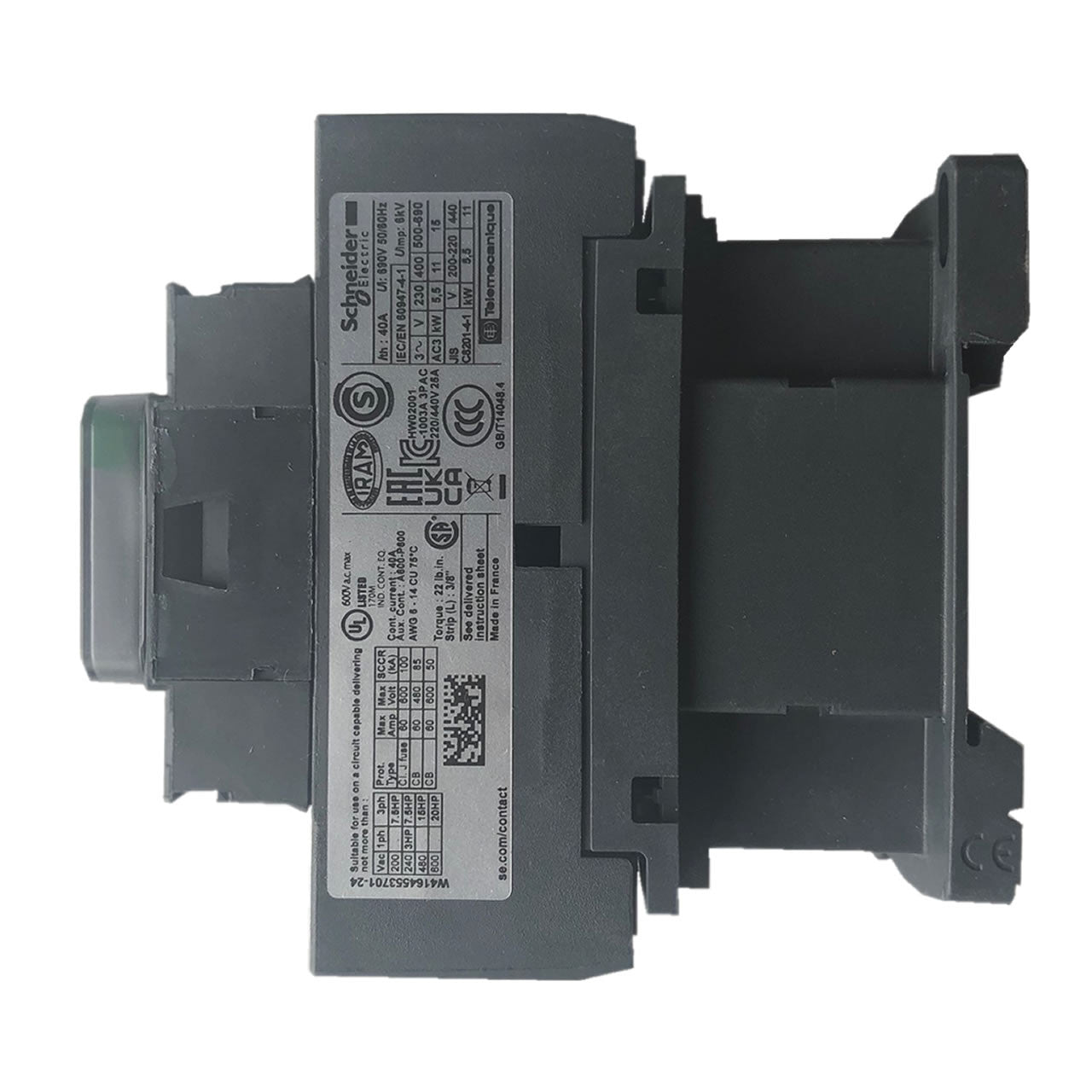

Square D LC1D25U7 Telemecanique Contactor 25 Amp 240V

Product Description

The Square D LC1D25U7 Telemecanique contactor is designed for motor control applications. It has a rated current of 25 AMP AC-3 and operates at a voltage of 240V with a frequency of 50/60Hz. This contactor features three poles and includes one normally open and one normally closed base mounted auxiliary contact. It is suitable for mounting on standard 35MM DIN rail.

• Rated for 25 AMP AC-3 (40 AMPS AC-1)
• Equipped with a 240V 50/60Hz AC coil
• Includes 1 normally open and 1 normally closed auxiliary contact

Product Highlights

The LC1D25U7 is suitable for motor control and resistive load applications. It is designed for robust performance with a variety of features that support efficient operation.

Product Information

Standard Information

• Brand: Square D
• MPN: LC1D25U7

Technical Specifications

• AMP Rating: 25 AMP AC-3, 40 AMP AC-1
• Coil Voltage: 240 volt AC
• Horsepower: 7.5 H.P. @ 230 volt, 15 H.P. @ 460 volt
• Auxiliaries: 1 normally open (NO) & 1 normally closed (NC)
• Terminals: Screw
• Mounting Support: Standard 35MM DIN rail
• Height: 3.35 inches
• Width: 1.77 inches
• Depth: 3.62 inches
• Weight: 0.82 lb (0.37 kg)
• Applications: Motor control, resistive load
