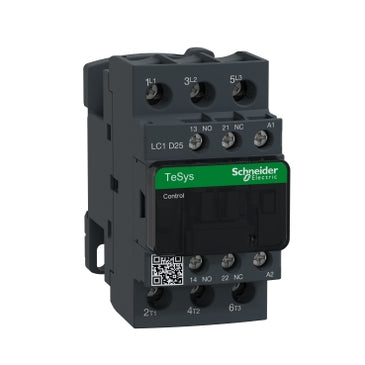

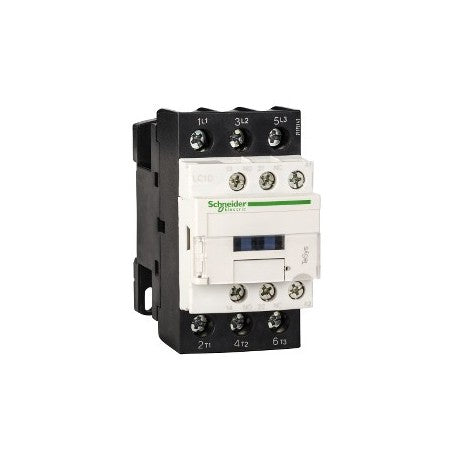

SQUARE D LC1D25G7 Contactor 600VAC 25Amp IEC

Product Description

The SQUARE D LC1D25G7 contactor operates at 600VAC and is rated for 25 Amps, making it suitable for various applications. This device is a part of the TeSys D product range, designed for integration into control systems, particularly for creating motor starters. The contactor can be easily mounted on either a DIN rail or a panel. It supports both horsepower and kilowatt ratings, and includes a coil rated for 120 VAC at 50/60 Hz.

• Rated operational voltage up to 690 V AC.
• Three-pole configuration for versatile usage.
• Compatible with AC-1, AC-3, and AC-4 load categories.

Product Highlights

This contactor is essential for effective motor control and resistive load management in industrial applications.

Product Information

Standard Information

• Product or Component Type: Contactor
• Device Short Name: LC1D

Technical Specifications

• Rated Operational Voltage: 600V AC 50/60 Hz
• Rated Operational Current: 25 A at 440 V AC
• Control Circuit Voltage: 120 V AC
• Motor Power Ratings: Up to 15 kW at 500V AC
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Support: Rail or Plate
• IP Degree of Protection: IP20
• Weight: 0.82 lb
• Dimensions: 3.35 in x 1.77 in x 3.62 in
