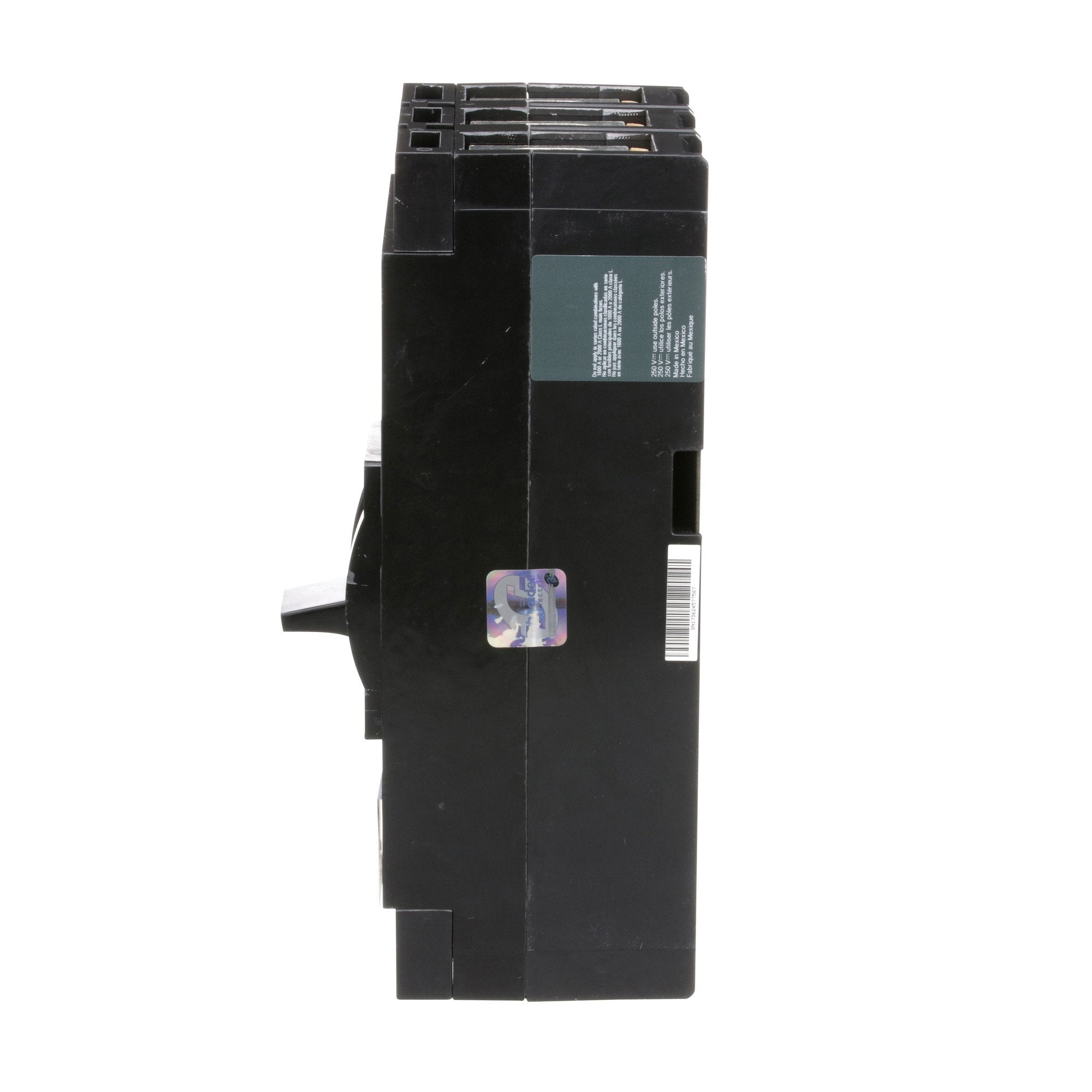

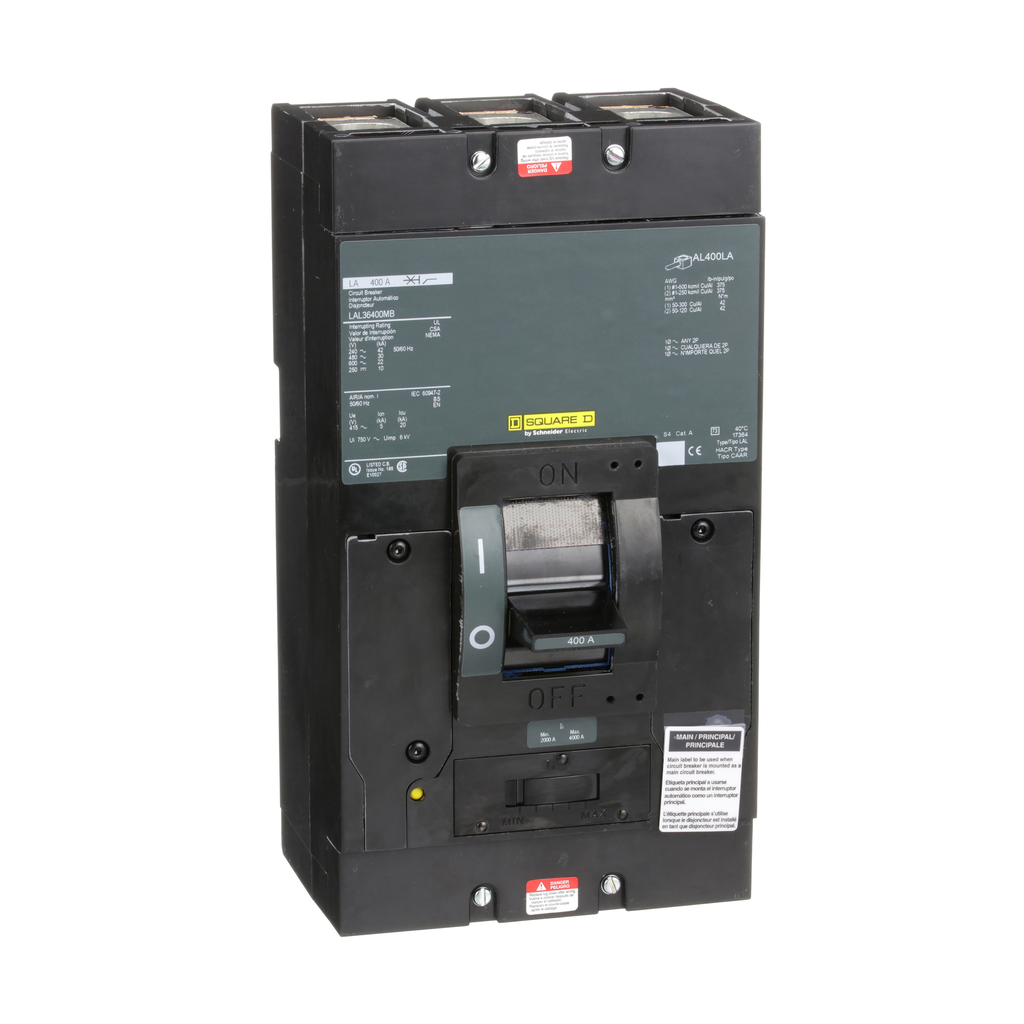

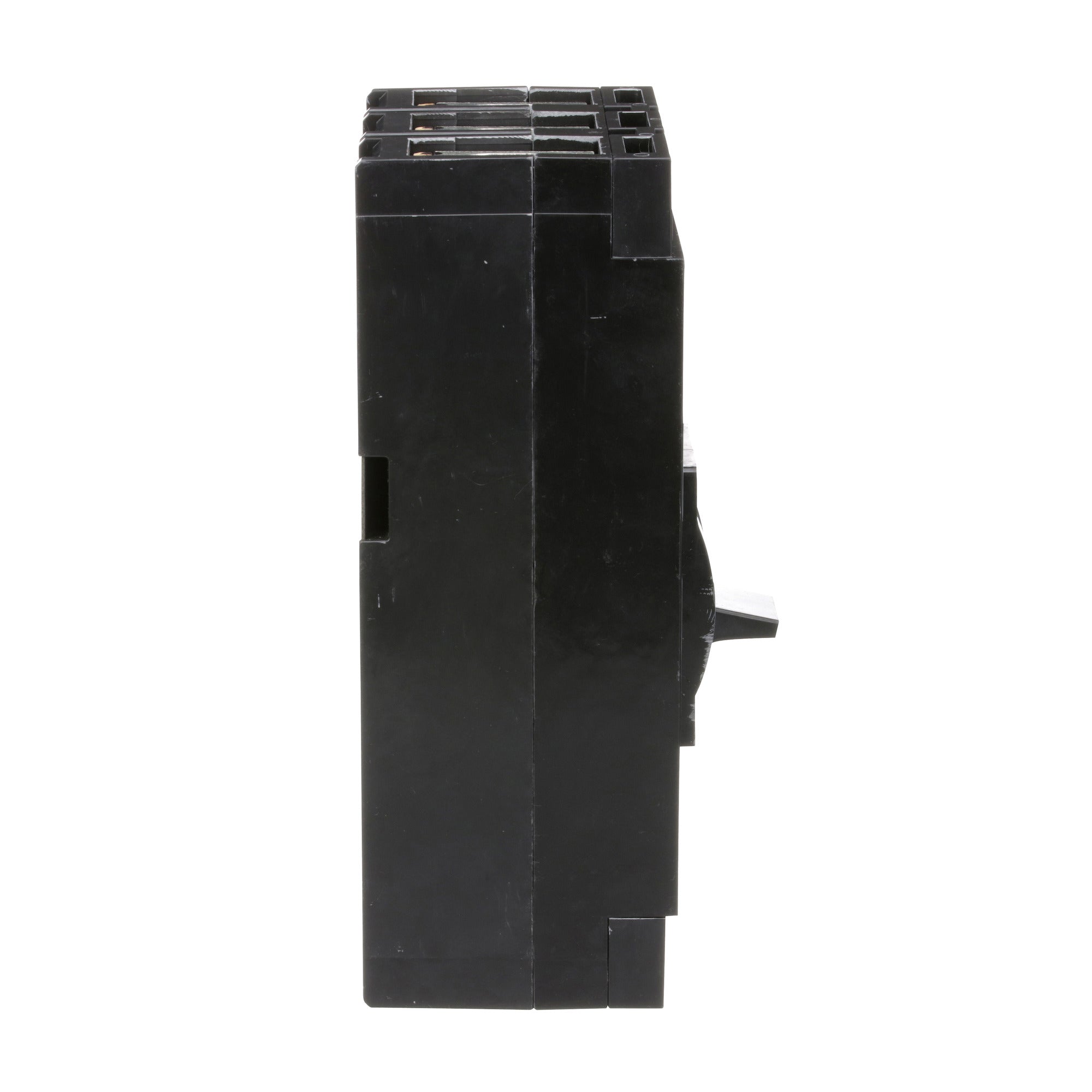

Square D LAL36400MB 600 Volt 400 Amp Molded Case Circuit Breaker

Product Description

The Square D LAL36400MB is a 600 Volt, 400 Amp molded case circuit breaker designed to protect electrical systems from overloads and short circuits. It is equipped with thermal-magnetic trip technology, which combines thermal and magnetic sensing for reliable performance. This circuit breaker is suitable for both commercial and industrial applications, ensuring safety and efficiency in power distribution.

• Three-pole configuration
• Rated for 10 kA breaking capacity at 250 volts DC
• Integrated metering capabilities for energy monitoring

Product Highlights

This circuit breaker features a compact design that allows for easy installation and maintenance. Its electronic trip units offer precise protection settings, suitable for various applications.

Product Information

Standard Information

• Brand: Square D
• MPN: LAL36400MB

Technical Specifications

• Amperage: 400 Amp
• Voltage: 600 Volt AC
• Number of Poles: 3
• Height: 11 inches
• Width: 6 inches
• Depth: 5.84 inches
• Interrupt Rating: 10 kA at 250V DC
• Mounting Type: Unit Mount
• Trip Type: Thermal-Magnetic
• Connection Type: Lugs, load; lugs, line
• Certifications: UL, CSA, IEC
• Country of Origin: Mexico
