Square D LAL36300 Circuit Breaker 600 Volt 100 Amp Replacement MPN

Product Description

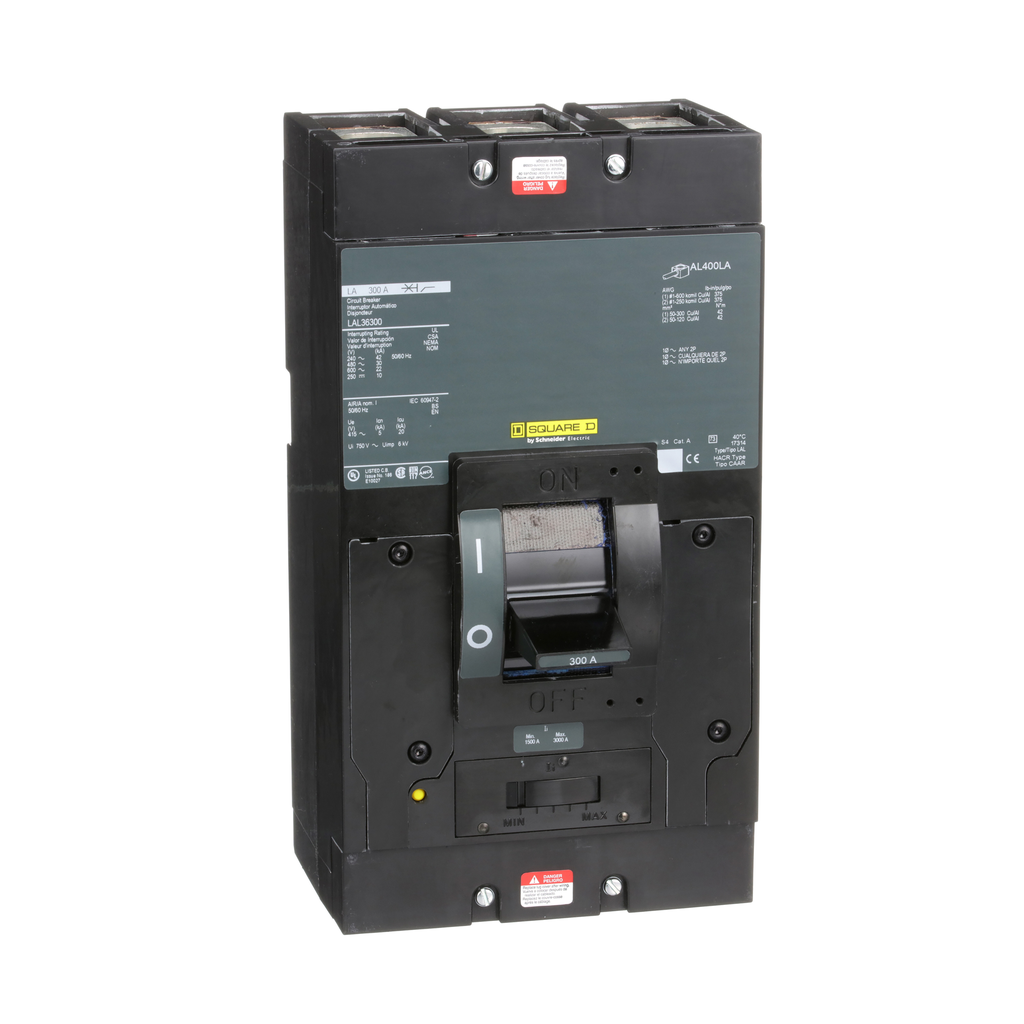

The Square D LAL36300 is a molded case circuit breaker designed for thermal magnetic protection. This product is capable of automatically opening a circuit during overload or short circuit situations, or it can be manually tripped. With internal thermal and magnetic sensing elements in each pole, it ensures reliable operation. The Push-to-Trip feature allows for manual tripping without exposure to live parts. This model is a three-pole unit mount breaker with a rating of three hundred amps at six hundred volts AC and features lugs for easy connection. The interrupting rating is twenty-two kA at six hundred volts AC and ten kA at two hundred fifty volts DC, ensuring safety and compliance with UL 489, CSA, and IEC standards.

• Thermal magnetic protection against overloads
• Three-pole unit rated for 300A, 600VAC
• Push-to-Trip feature for manual intervention

Product Highlights

Reliable circuit protection for various applications in power distribution.

Product Information

Standard Information

• Catalog Number: LAL36300
• Brand: Square D

Technical Specifications

• Type: Circuit breaker
• Voltage: 250 Volt
• Current: 300 Amp
• Number of Poles: Three
• Trip Type: Thermal magnetic
• Height: 11 inches
• Width: 6 inches
• Depth: 5.84 inches
• Interrupt Rating: 10 kA, 22 kA
