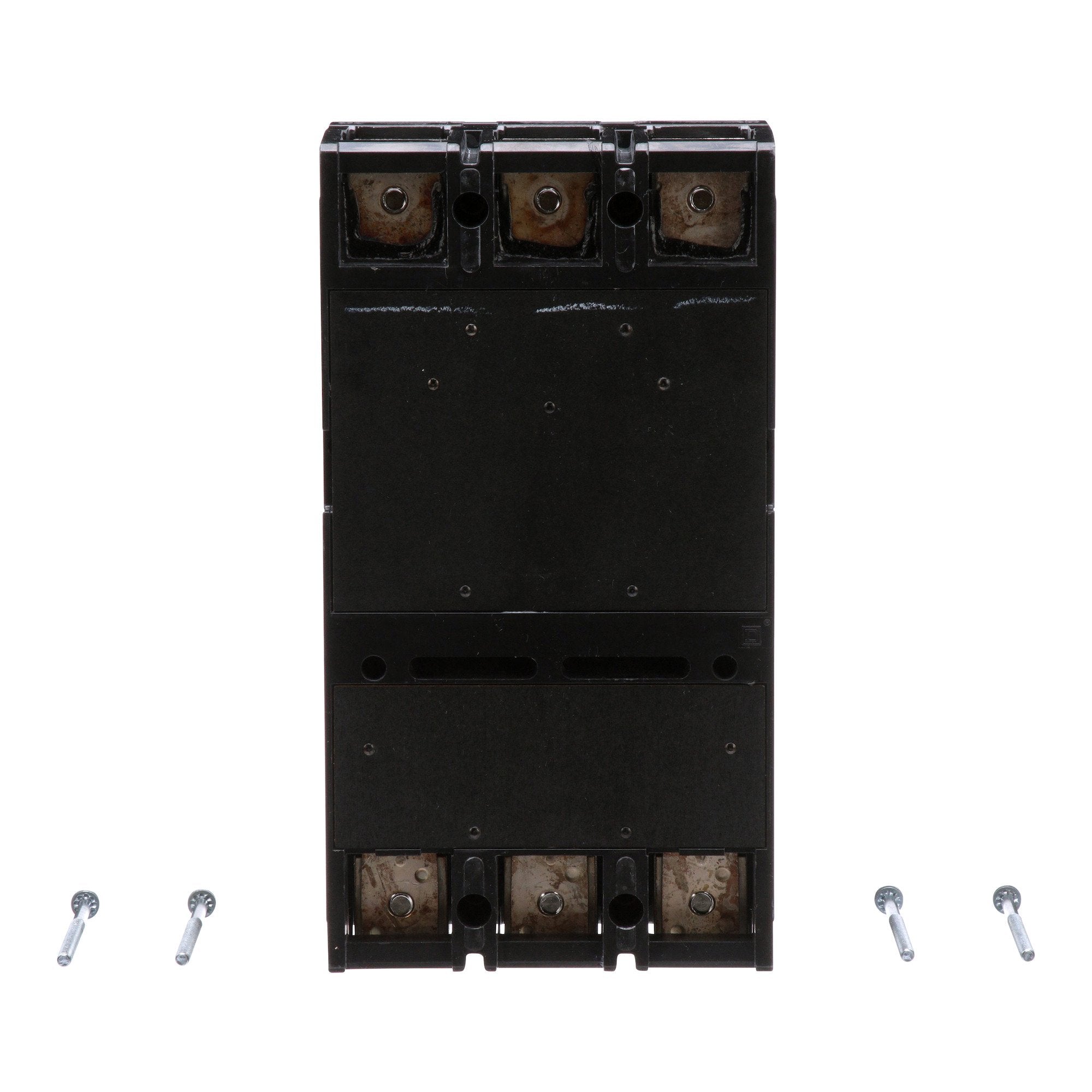

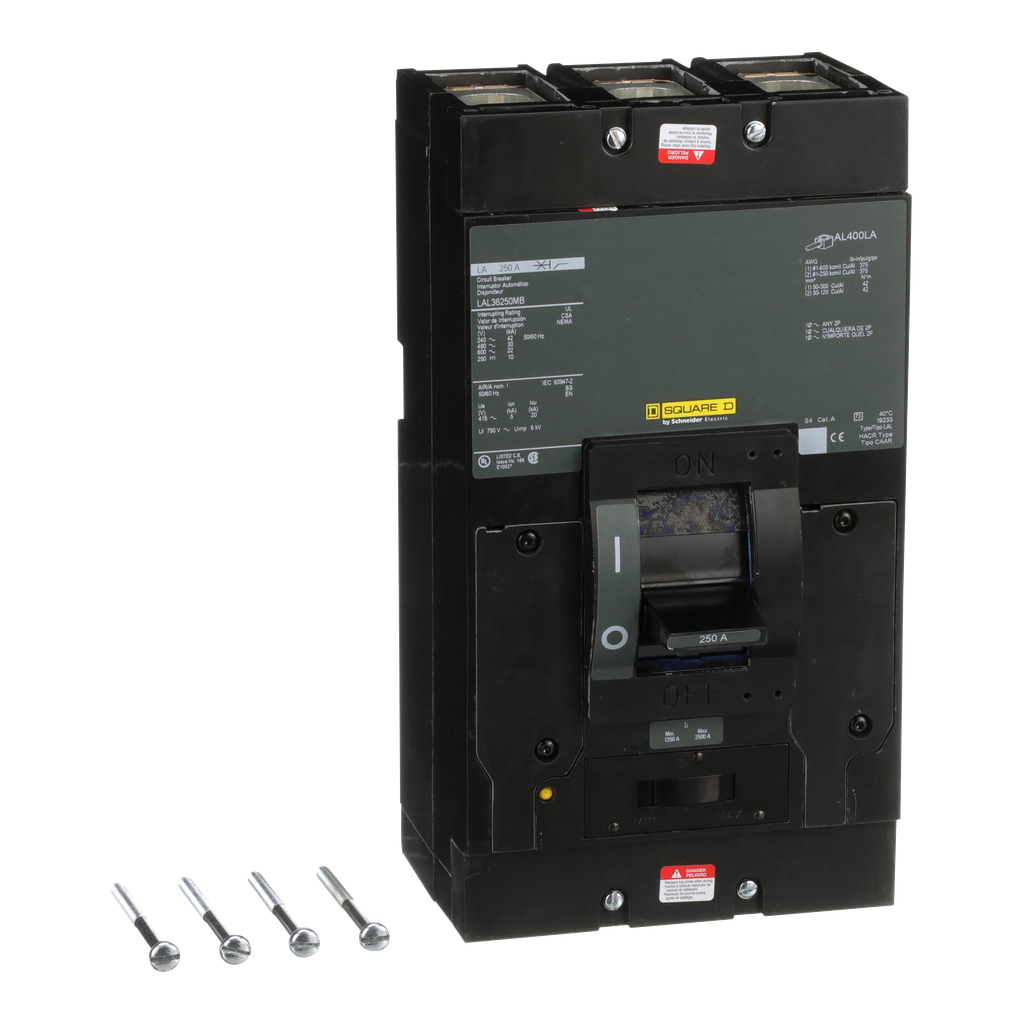

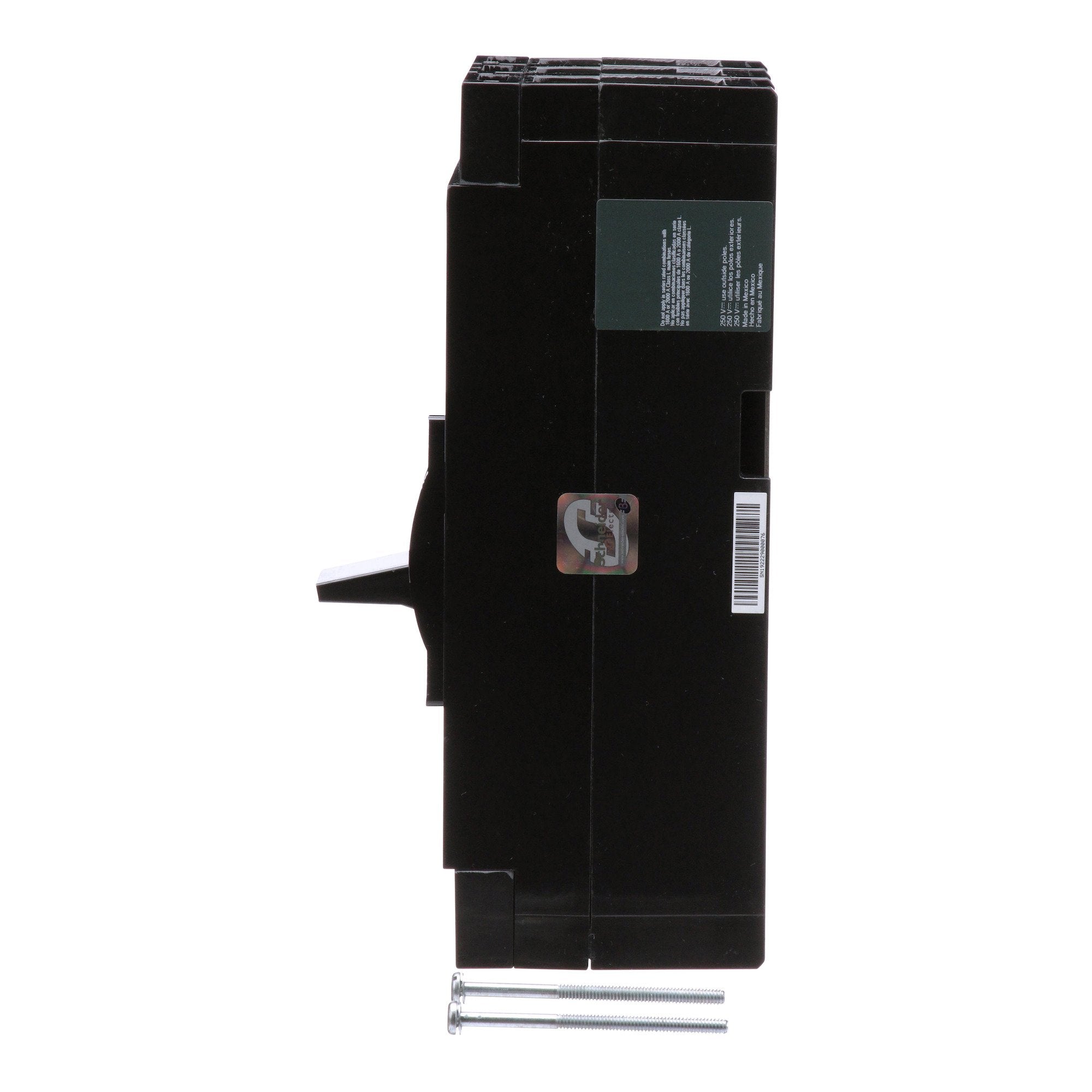

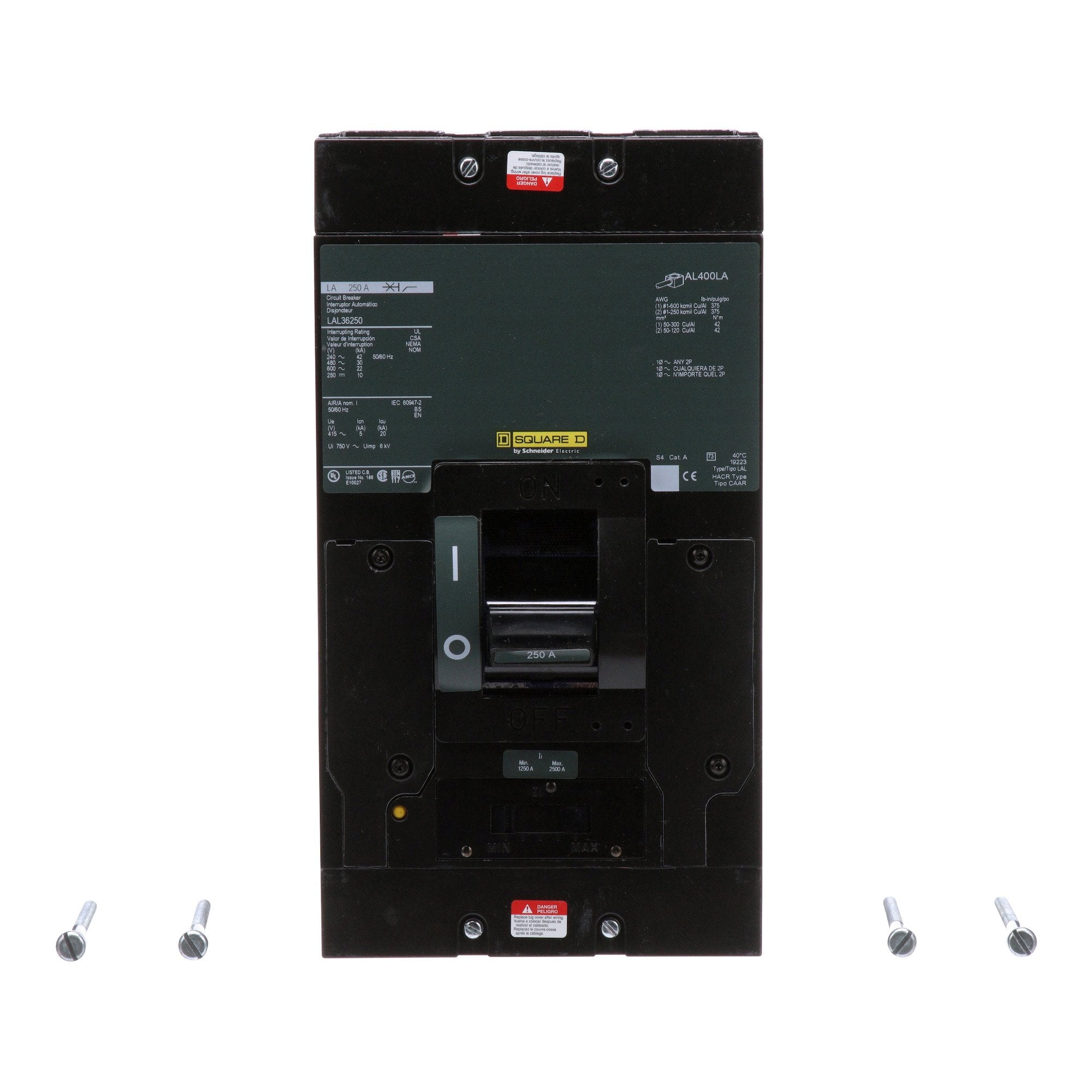

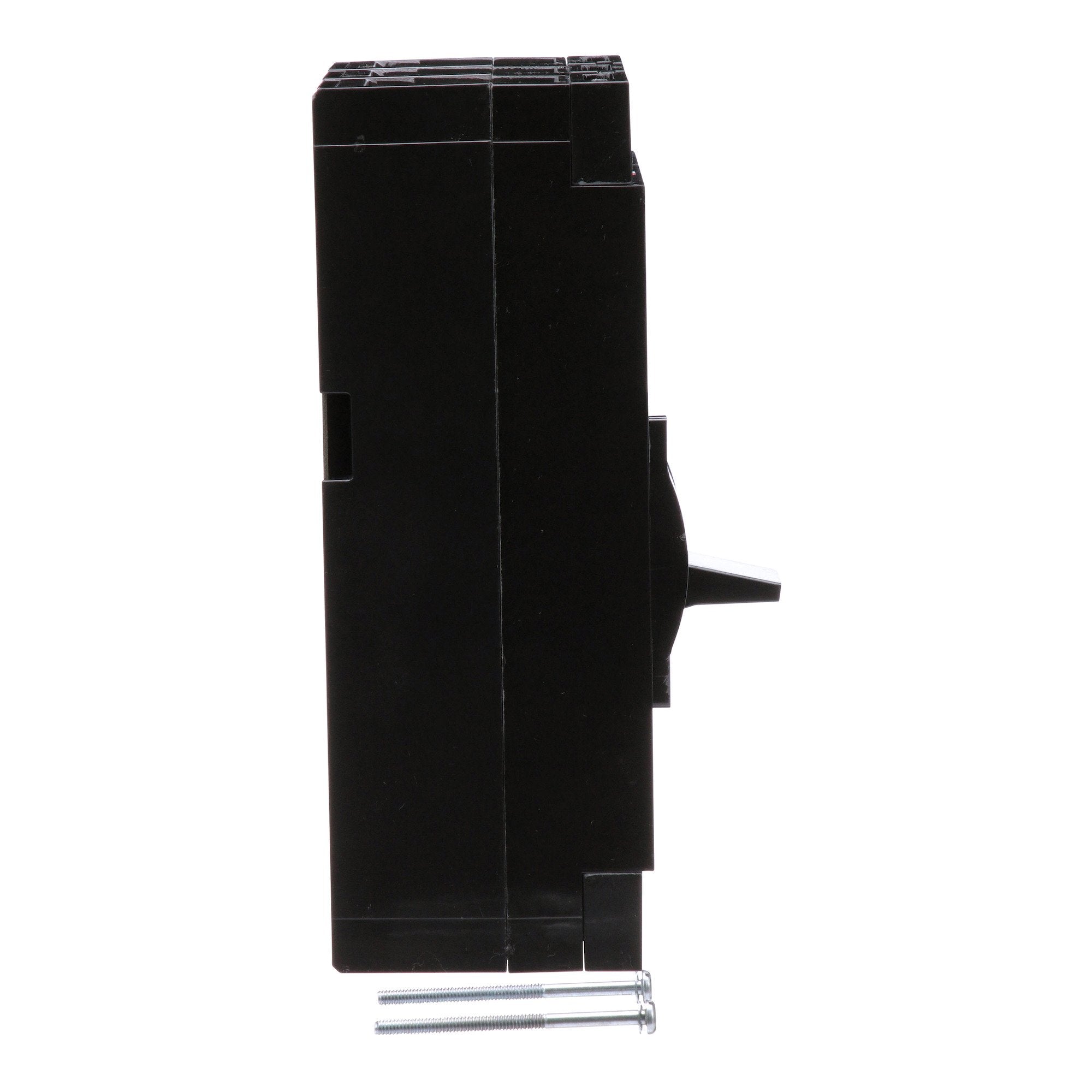

Square D LAL36250MB Molded Case Circuit Breaker 250 Amp 600 Volt

Product Description

The Square D LAL36250MB is a molded case circuit breaker from Schneider Electric. This circuit breaker is designed to provide protection against overloads and short circuits. It is a three-pole unit rated at 250 amps, suitable for use at voltages up to 600V. The LAL36250MB features thermal and magnetic sensing elements to detect overcurrent conditions. The device has a normalized interrupting capacity of 22kA at 600VAC. A key feature is the Push-to-Trip option which allows manual tripping without contact with live components.

• Three-pole design for robust circuit protection
• Thermal magnetic operation for reliable performance
• Compact design with shorter handle for door clearance

Product Highlights

The circuit breaker ensures reliable operation in various environments with certifications from UL, CSA, and IEC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: LAL36250MB
• Voltage: 600 VAC
• Amperage: 250 Amps
• Number of Poles: 3
• Height: 11 inches
• Width: 6.0 inches
• Depth: 5.84 inches
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Warranty: 18 months
