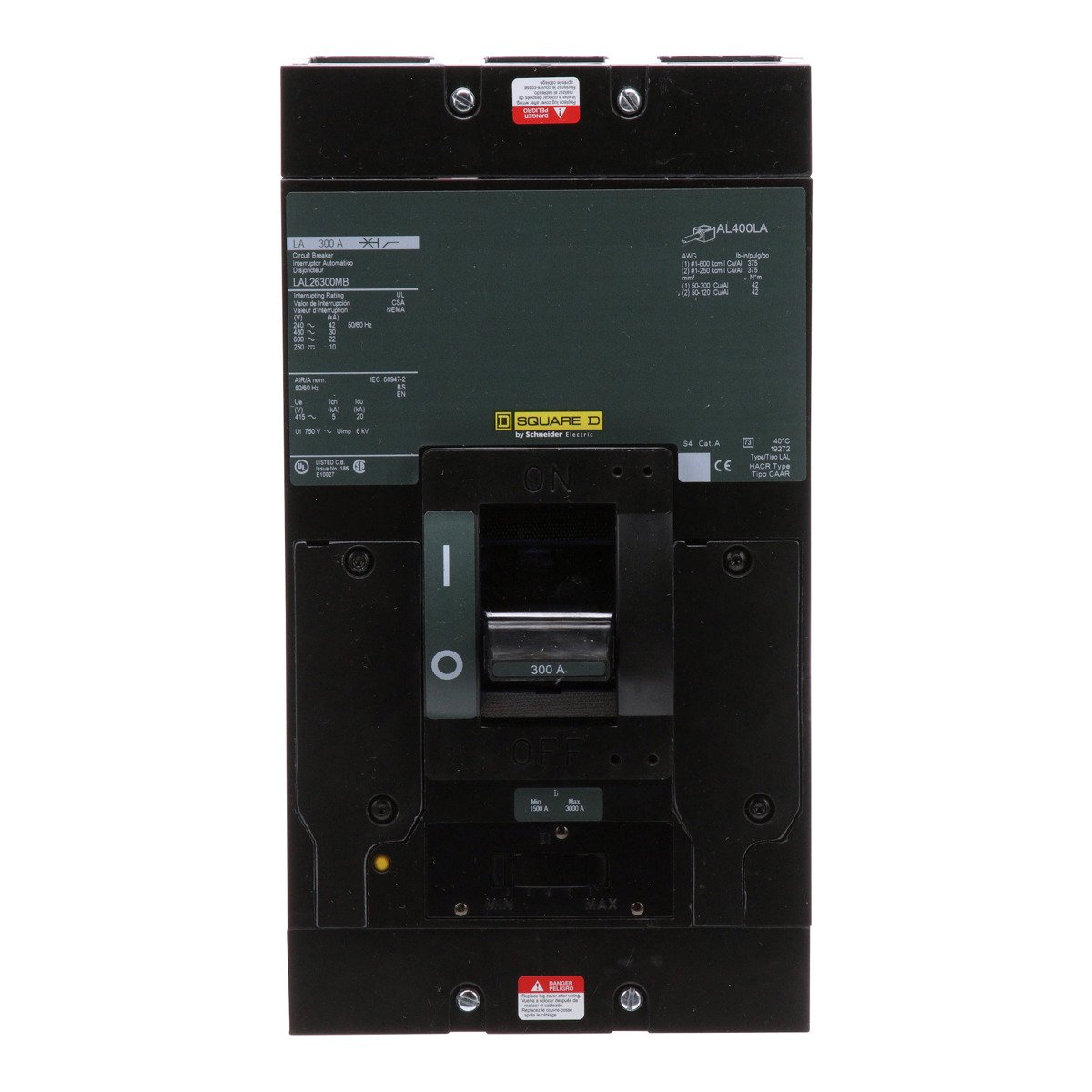

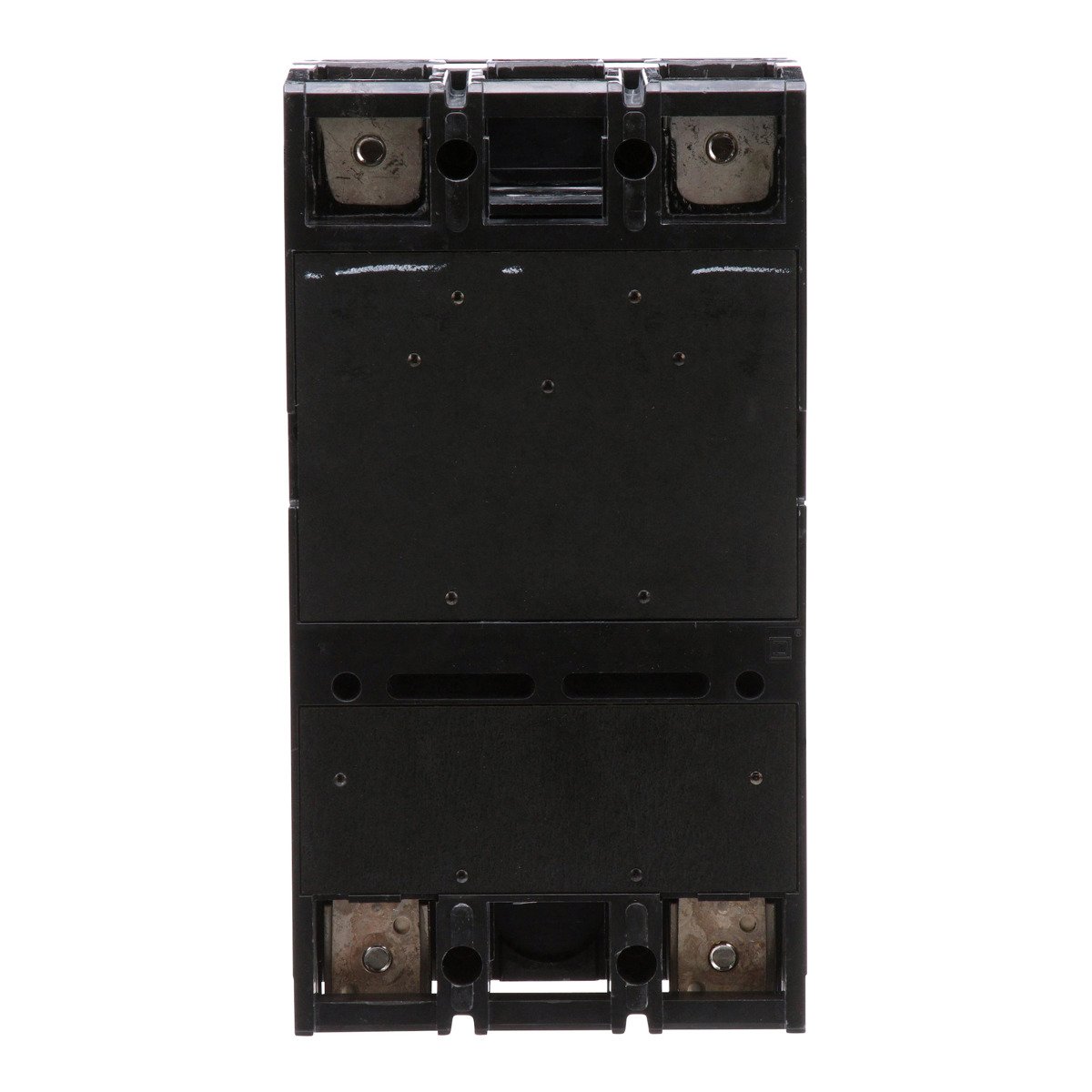

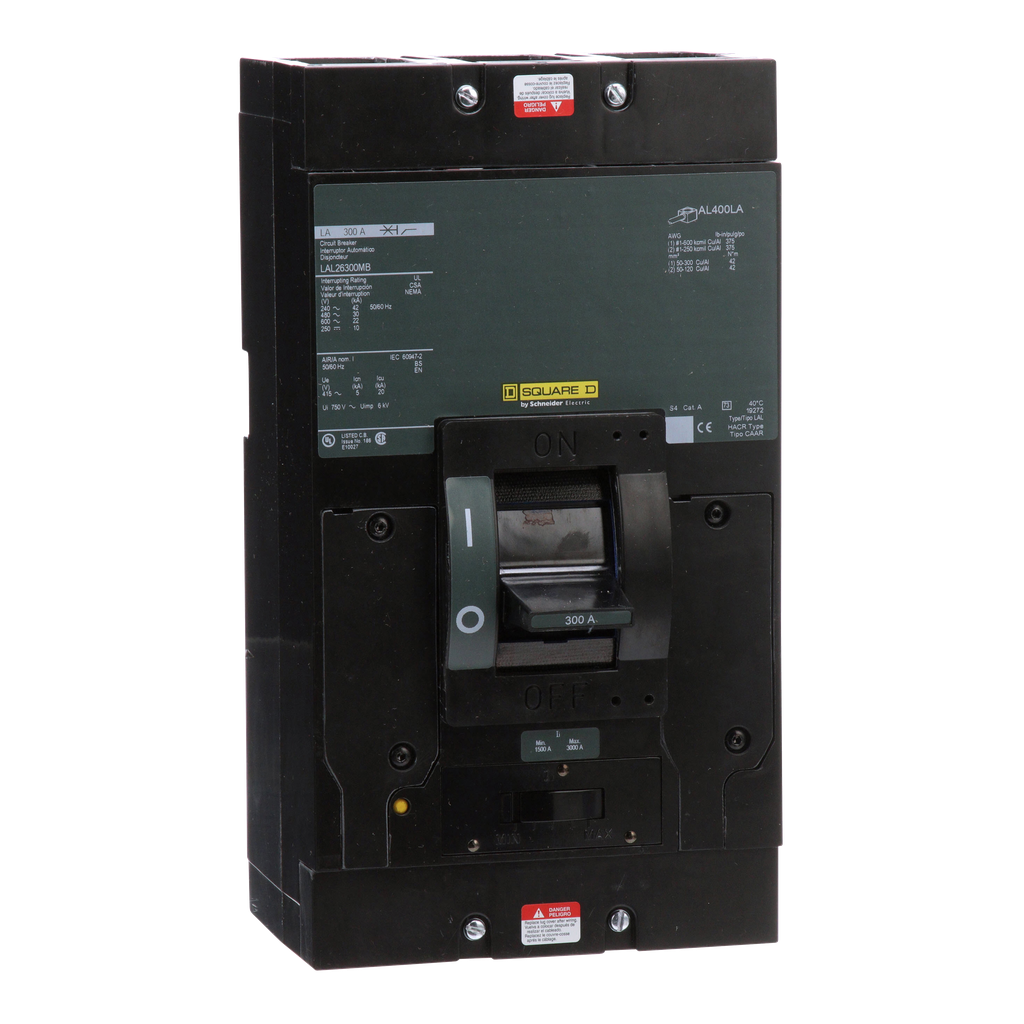

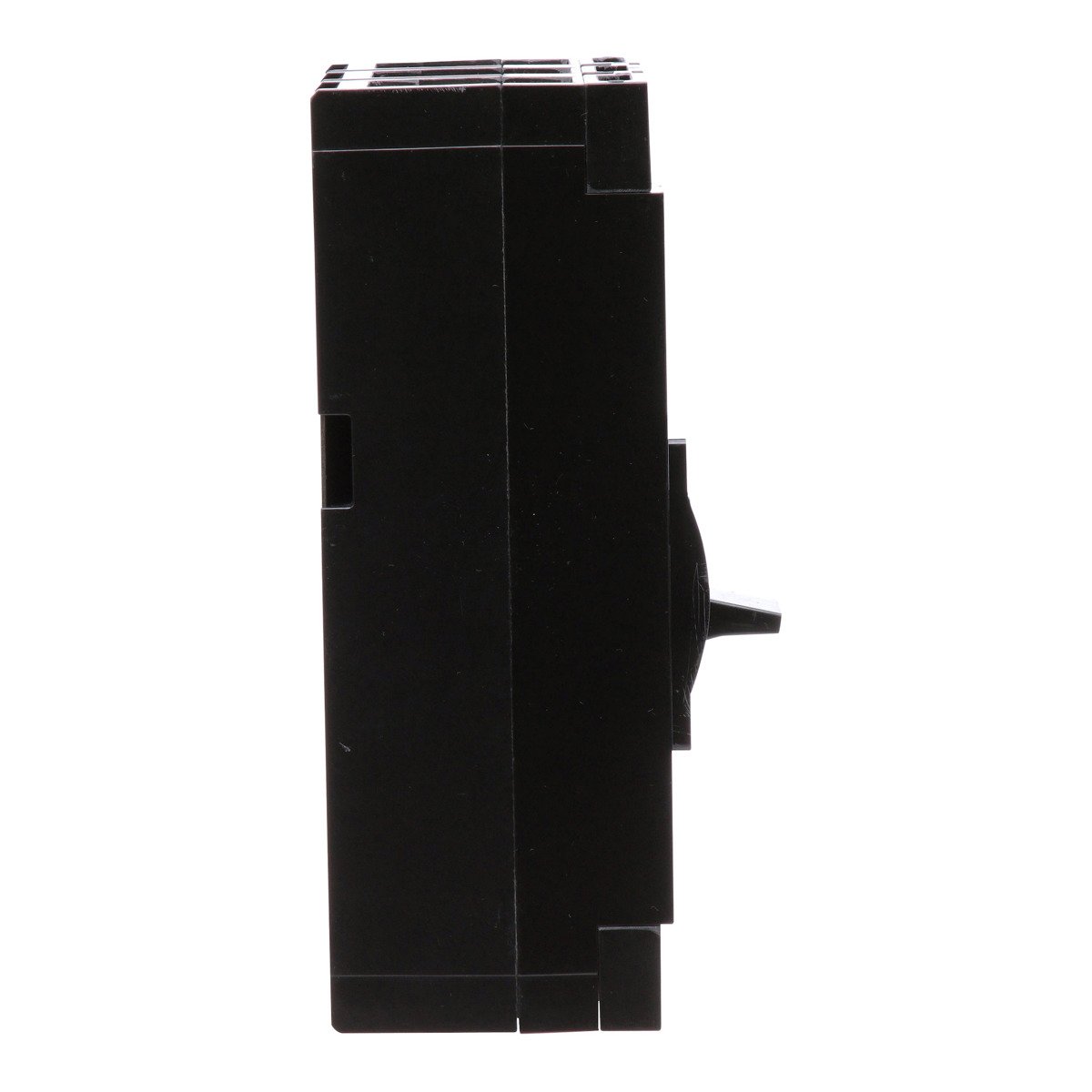

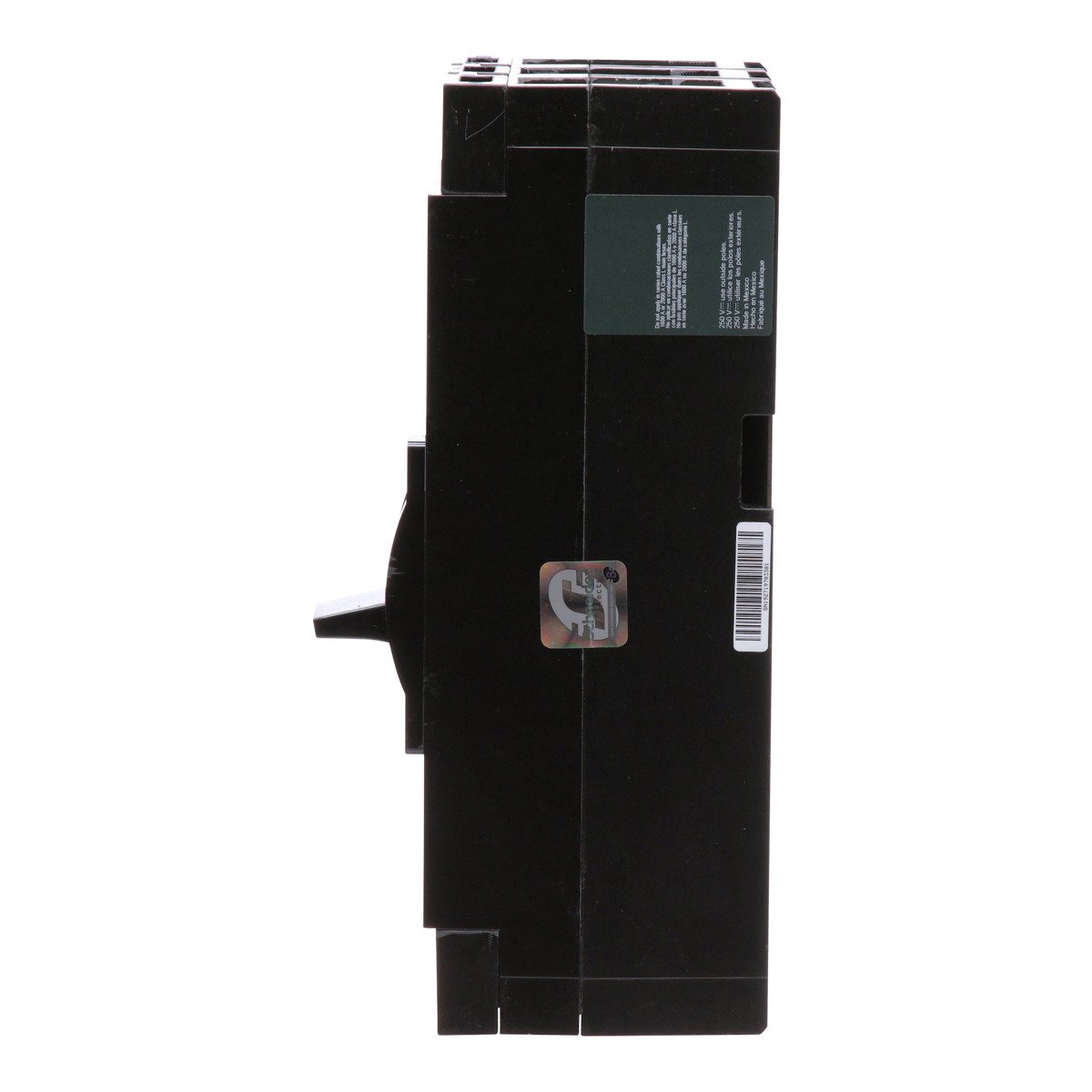

Square D LAL26300MB 2-Pole 300 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Square D LAL26300MB is a 2-pole thermal magnetic molded case circuit breaker designed to provide overload and short circuit protection. This breaker automatically opens a circuit when it detects overload conditions. It features manual trip capabilities without exposing live components. This unit is rated for 300 Amps and 600 Volts AC, including lugs for connections.

• Type: Molded Case Circuit Breaker
• Interrupting rating: 22kA at 600VAC
• UL 489, CSA, and IEC certified

Product Highlights

This circuit breaker is suitable for industrial and commercial applications where reliable electrical protection is necessary. It ensures safety by automatically interrupting the load in case of faults.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: LAL26300MB
• Current Rating: 300 Amp
• Voltage Rating: 600 Volt AC
• Number of Poles: 2 Pole
• Height: 11 Inch
• Width: 6 Inch
• Depth: 5.84 Inch
• Country of Origin: Mexico
• Certifications: UL, CSA, IEC
• Warranty Length: 18 months
