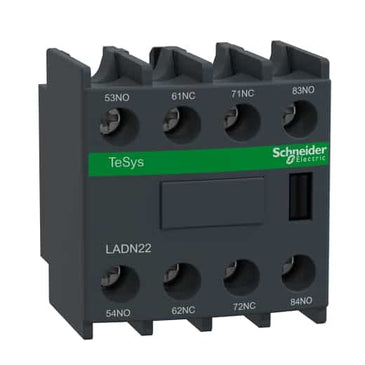

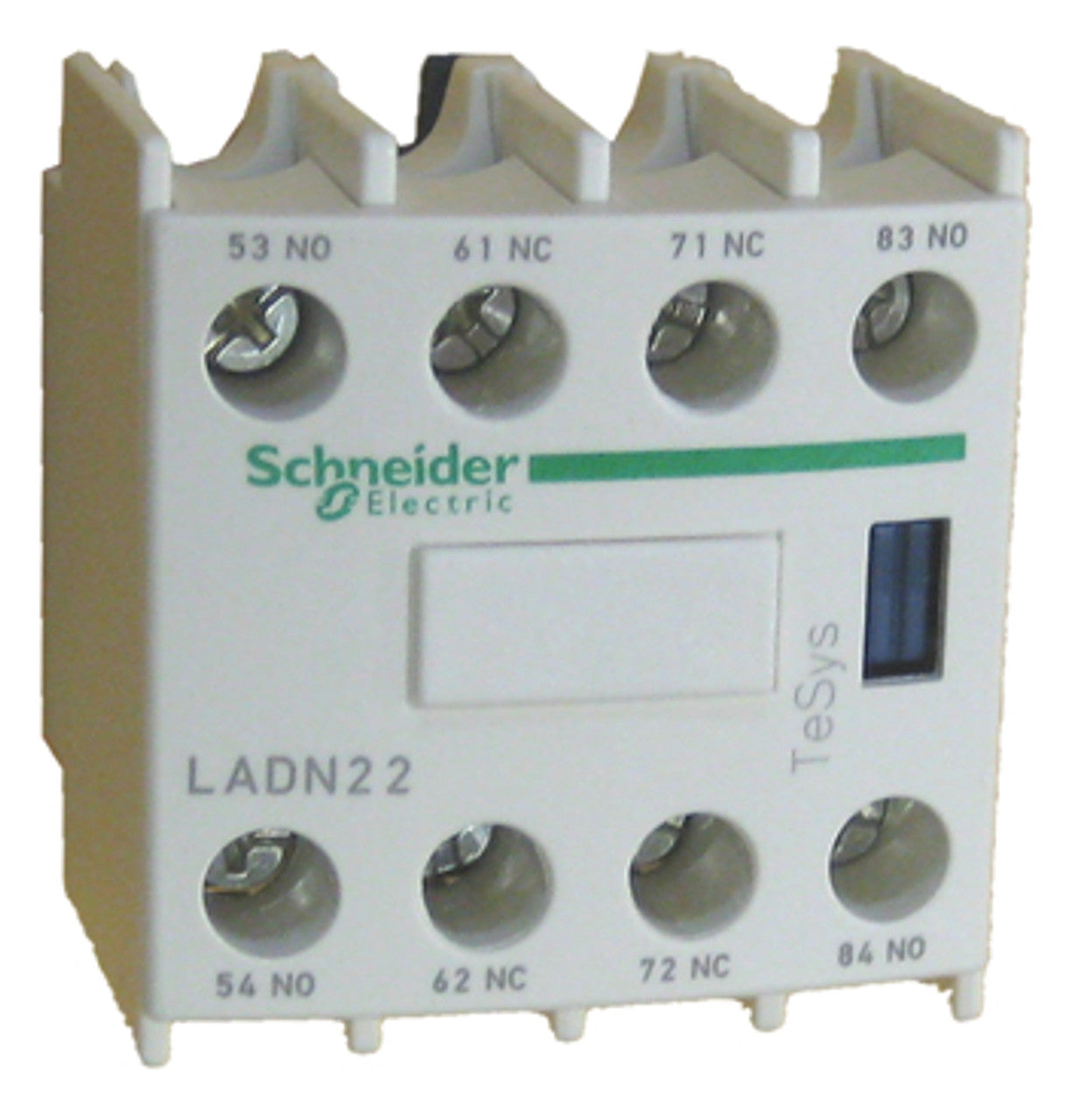

Square D LADN22 Auxiliary Contact Block 2 NO + 2 NC

Product Description

The Square D LADN22 Auxiliary Contact Block is made for industrial control applications. It offers 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, providing versatility for operations. The front-mount design allows for easy connection with TeSys D and F contactors. This contact block has an operational voltage up to six hundred ninety volts AC and an insulation voltage rated at six hundred ninety volts for IEC and six hundred volts for UL and CSA.

• Includes 2 Normally Open and 2 Normally Closed contacts for various control circuits.
• Compatible with LC1D09 through LC1D150 contactors in TeSys D range and selected TeSys F models.
• IP20 finger-safe screw clamp terminals for both flexible and rigid wires.

Product Highlights

This auxiliary contact block fits various applications in control circuits, ensuring operational efficiency.

Product Information

Standard Information

• Product Type: Auxiliary contact block
• Device Short Name: LADN

Technical Specifications

• Contact Configuration: 2 NO + 2 NC
• Mounting Location: Front mount
• Current Ratings: 10A free air thermal current
• Voltage Ratings: 690V AC operational, 600V UL/CSA
• Mechanical Durability: 30 million cycles
• Certifications: UL, CSA, CCC, EAC, UKCA
• Protection Rating: IP20 conforming to IEC 60529
• Operating Temperature Range: -5°C to 60°C
