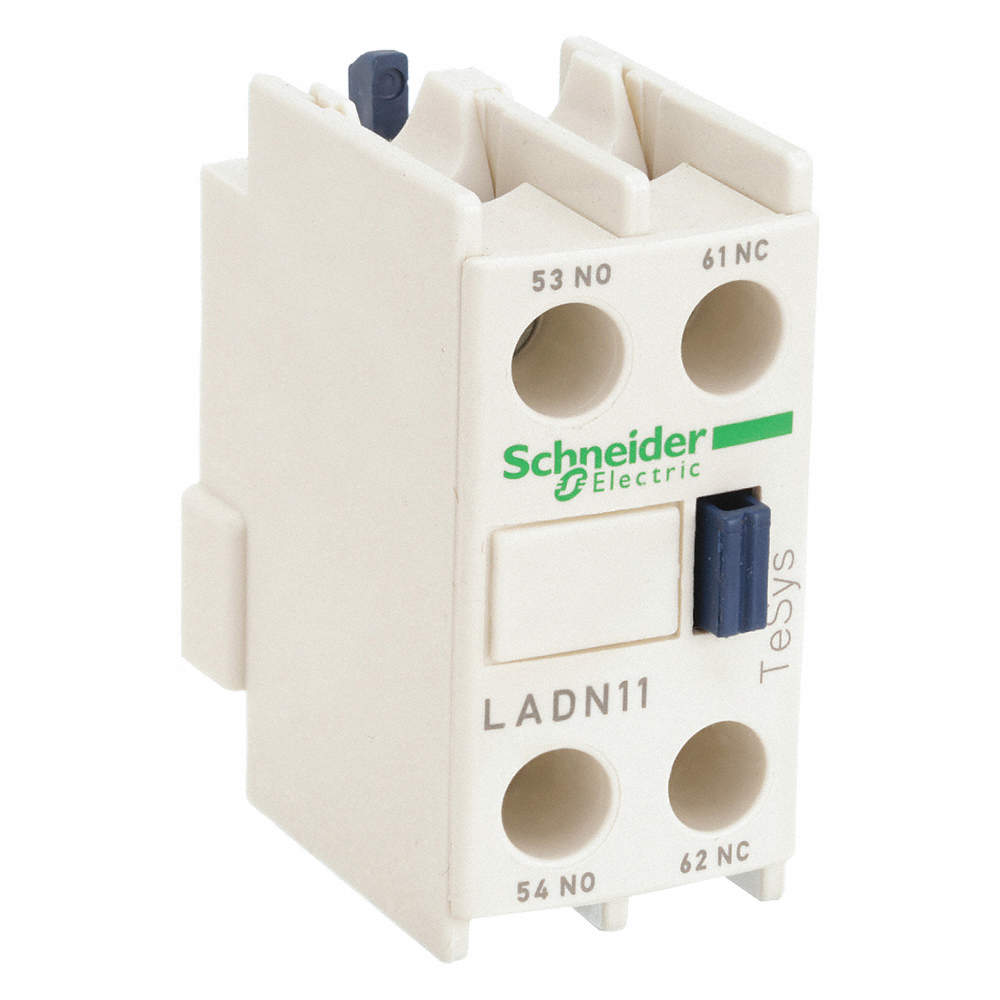

Square D LADN11 Auxiliary Contact Block 10 Amps 600/690VAC

Product Description

The Square D LADN11 is an auxiliary contact block designed for reliable performance in electrical systems. With a current rating of 10 Amps and a voltage rating of 600/690VAC, it is suitable for various applications. This contact block has a configuration of 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact, making it versatile for different circuit setups.

• Current rating of 10 Amps
• Voltage rating of 600/690VAC
• Screw clamp terminal connection

Product Highlights

This unit is ideal for use with Schneider LC1F Contactors, ensuring compatibility and efficiency in operation.

Product Information

Standard Information

• Brand: Square D
• MPN: LADN11

Technical Specifications

• Series: LADN
• Amperage: 10
• Voltage: 600/690VAC
• Mounting Type: Clip-On
• Approval: EN/IEC, UL, CSA, CB, CCC, EAC, UKCA, GB/T
• Terminal Connection: Screw Clamp
• Length: 1.65 inches
• Width: 1.02 inches
• Height: 1.89 inches
• Compatible with: Schneider LC1F Contactors
• Standards: RoHS, REACh
• Temperature Rating: -5 to 60 °C
• Contact Configuration: 1NO, 1NC
• Number of Contacts: 2
• Number of Normally Open Contacts: 1
• Number of Normally Closed Contacts: 1
• IP Rating: IP20
