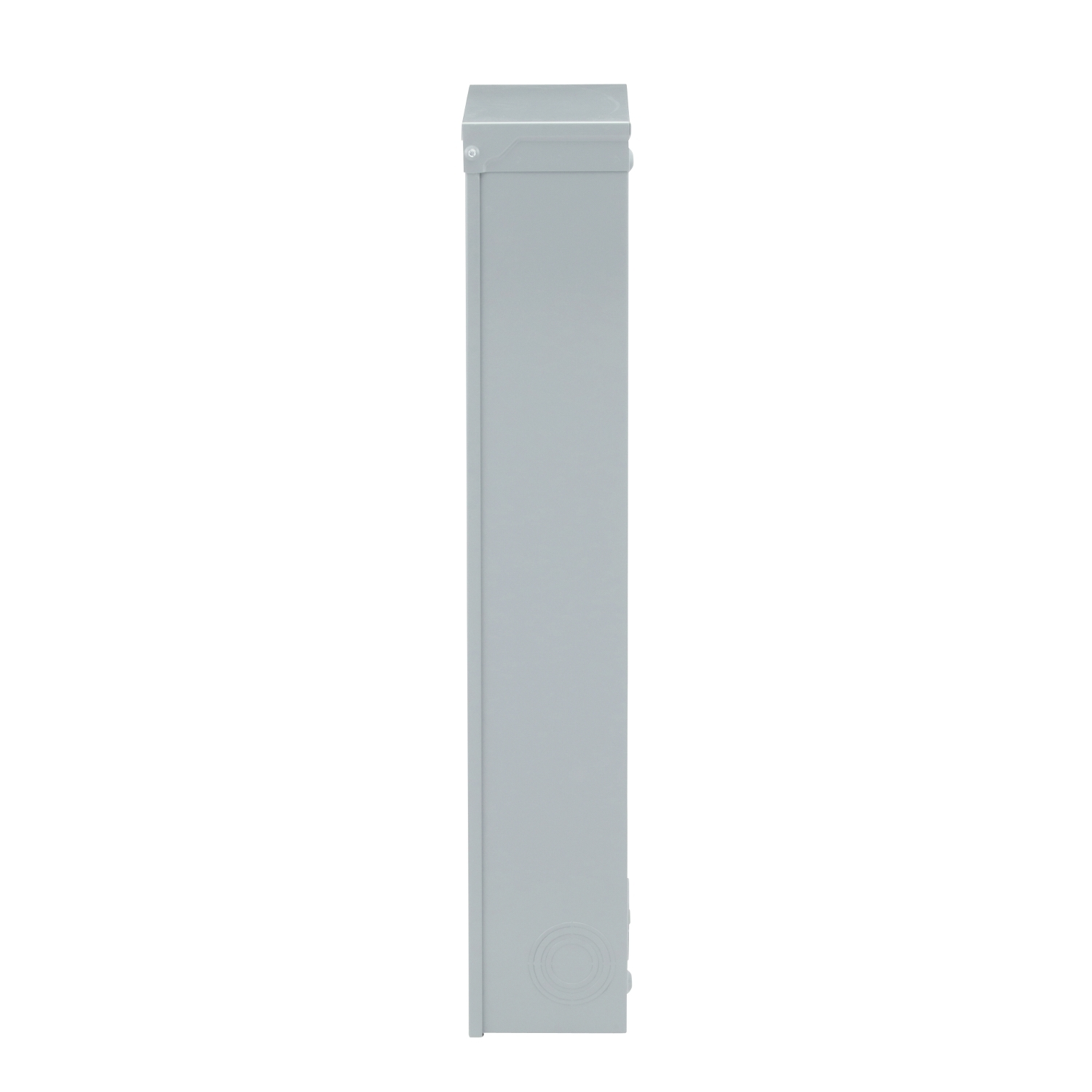

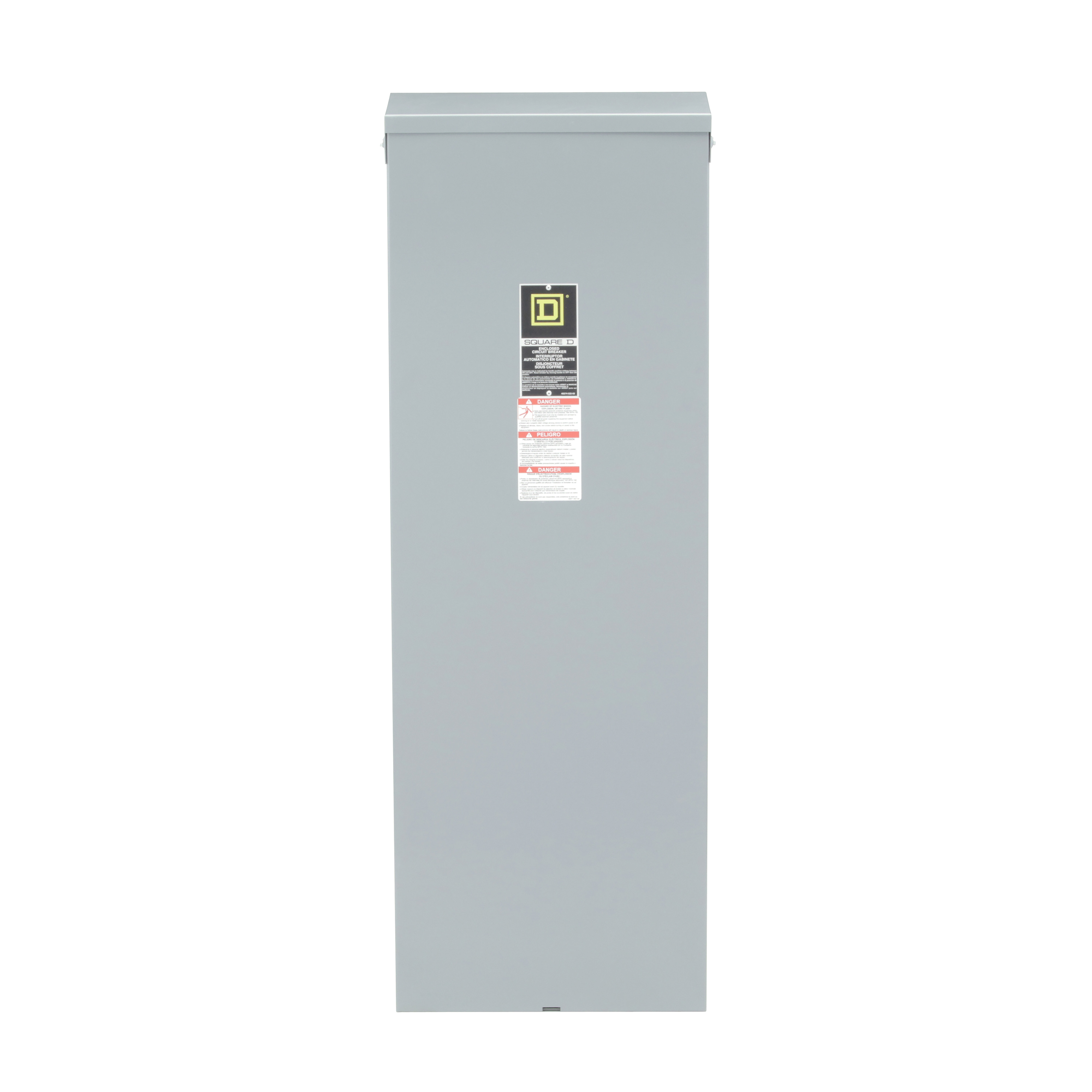

Square D LA400R 15.38 x 7.88 x 44 Inch NEMA 3R Surface Mount Circuit Breaker Enclosure

Product Description

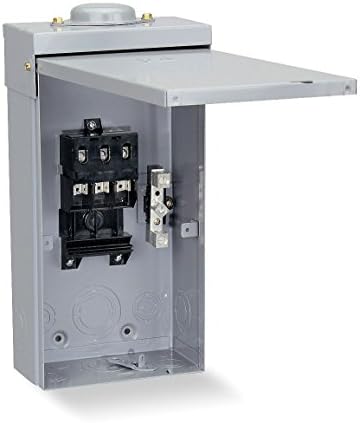

The Square D LA400R is a NEMA 3R surface mount circuit breaker enclosure, suitable for service entrance equipment when a neutral assembly is installed. It accepts 100% rated circuit breakers and features a blank top end wall that requires field cut openings. Designed for L-Frame breakers, it comes with an 18-month warranty.

• NEMA 3R rated enclosure
• Surface mount design
• Suitable for service entrance equipment when neutral assembly is installed

Product Highlights

The LA400R enclosure is designed for PowerPact circuit breakers and accepts 100% rated circuit breakers.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: LA400R
• Country of Origin: Mexico

Technical Specifications

• Type: ENCLOSURE
• Brand: Square D
• Depth: 7.88 inch
• Width: 15.38 inch
• Height: 44 inch
• Material: Steel
• Enclosure: NEMA 3R
• Applications: CIRCUIT BREAKER LAL/LHL/Q4L/KAL/KHL 125-400 A
• Catalog Number: LA400R
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901508021
• GTIN: 00785901508021
• Enclosure Type: NEMA 3R
• Application: Surface Mount Circuit Breaker Enclosure
• Frame Type: L-Frame
• Amperage: 15-250A
• Finish: Powder Coated
• Location: Outdoor
• Exterior Depth: 7.88 in
• Exterior Width: 15.38 in
• Mounting Style: Surface
• Exterior Height: 44 in
• Number of Spaces: 3
• Conduit Provision: 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2
• Max. Operating Temp.: 140 Degrees F
• Min. Operating Temp.: 32 Degrees F
• Cover Attachment Style: Top Hinge
• Breaker Type: 2/3-Pole KAL/KHL/LAL/LHL/Q4L
• Breaker/Switch Current Rating: 125 to 400 Ampere
• Mounting: Surface
• Approval: UL, CSA
• Wire Size (Aluminum): 6 to 2/0 AWG
• Wire Size (Copper): 10 to 2/0 AWG
• Product Destination: Circuit breaker LAL/LHL/Q4L/KAL/KHL 125-400 A
• ECCN: EAR99
• Use With: LAL, LHL and Q4L Circuit Breakers L-Frame, Q4-Frame
• Current Rating: 400A
• Electrical Ratings: 125 to 400 A 600 VAC
• Frame: LAL/LHL/Q4L/KAL/KHL
• Maximum Amperage: 400 A
• Box Shape: Rectangular
• VOLTAGE: 600
• AMPERAGE: 400
• Part Number: LA400R
• Voltage: 240 Volts
• Item Package Quantity: 1
• Included Components: LA400R
• Batteries Required?: No
• Item model number: LA400R
