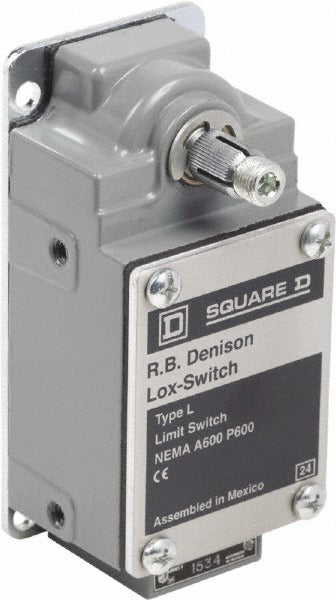

Square D L525WDL2M58 Limit Switch Dpst 2NC 600V

Product Description

The SQUARE D L525WDL2M58 is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a DPST contact form with a 2NC contact configuration and a rotary spring return actuator mounted on the side of the aluminum body. Rated for 600 volts and built to IP67 ingress protection, this switch handles demanding environments where moisture and particulate exposure are concerns. The screw terminal connection and 1/2 inch NPT conduit entry make wiring straightforward for licensed electricians and industrial maintenance technicians performing panel or machine installations.

This limit switch is suited for use in manufacturing machinery, conveyor systems, automated equipment, and other industrial controls where precise position detection is required. The rotary spring return actuator provides 12 degrees of travel and automatically resets after the actuating force is removed, making it well-suited for applications requiring consistent, repeatable switching. NEMA ratings of 1, 2, 4, 12, and 13 confirm suitability across a range of enclosure and environmental conditions, from indoor general-purpose to oil-tight and dust-tight installations.

Key Features

• DPST contact form with 2NC configuration for normally closed circuit control logic
• Rotary spring return actuator with 12 degrees of travel, side-mounted for lateral approach
• 600-volt rating supports a wide range of industrial control voltages
• IP67 ingress protection resists dust ingress and temporary water immersion
• Aluminum body construction for durability in industrial environments
• NEMA 1, 2, 4, 12, and 13 rated; meets IEC 60529, IEC 61140, and RoHS compliance standards

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for industrial machinery and control systems requiring a side-actuated, rotary spring return DPST switch with a 1/2 inch NPT conduit connection.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize all circuits and lock out or tag out the machine before mounting the switch or making wiring connections. Use the 1/2 inch NPT conduit entry with an appropriate fitting to maintain the IP67 and NEMA enclosure ratings. Verify actuator alignment and travel clearance before returning the system to service.
