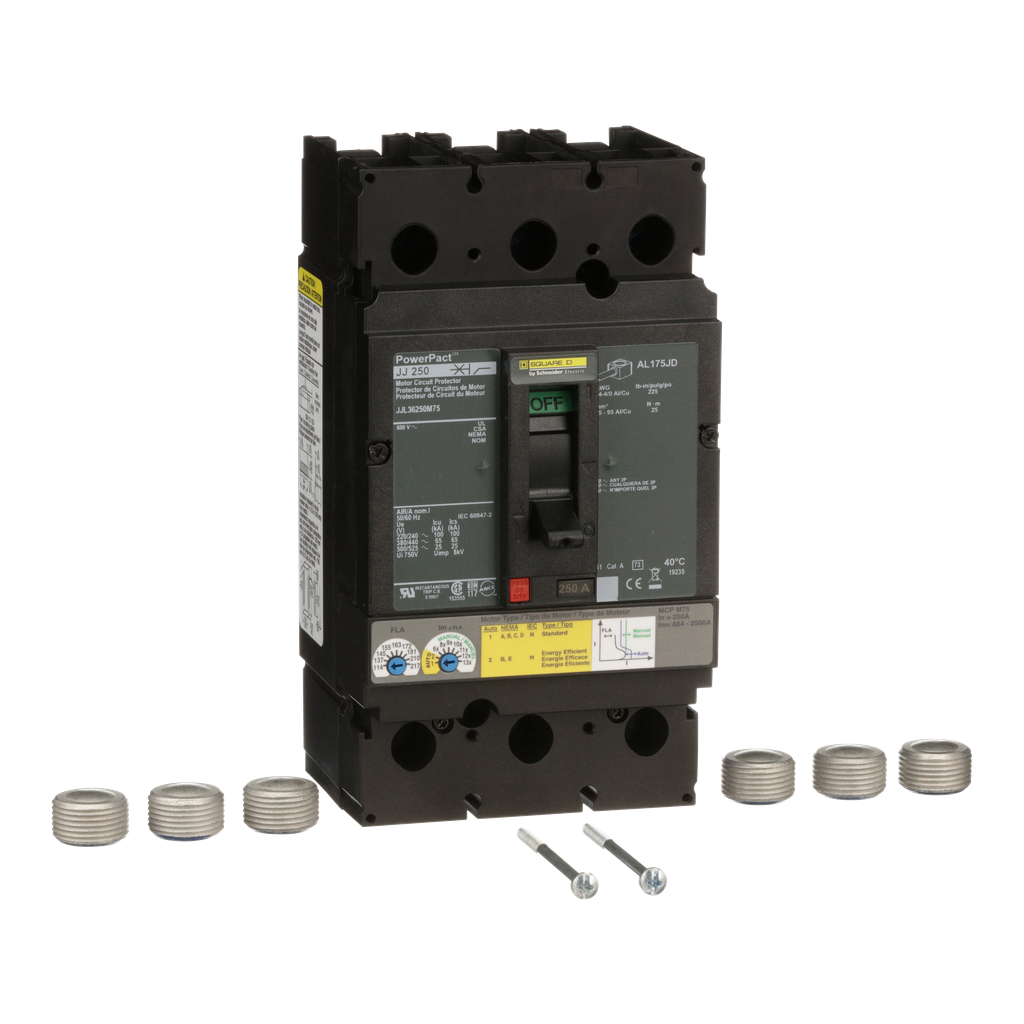

Square D JJL36250M75 Motor Circuit Protector 600 Volt 250 Amp

Product Description

Square D JJL36250M75 is a motor circuit protector designed for motor protection in electrical systems. This unit operates at six hundred volts and can handle up to two hundred fifty amps. The unit comes with lugs on both the line and load side, suitable for various installations. PowerPacT J-Frame motor circuit protectors are known for their ability to prevent nuisance tripping while accommodating transient motor inrush currents.

• Instantaneous-trip circuit breaker for short circuit protection
• Continuous current rating of eighty percent
• Complies with UL, CSA, IEC standards

Product Highlights

The JJL36250M75 is built to withstand demanding applications with a breaking capacity of twenty-five kiloamperes at six hundred volts AC.

Product Information

Standard Information

• Brand: Square D
• MPN: JJL36250M75

Technical Specifications

• Voltage: 600 Volt
• Amperage: 250 Amp
• Depth: 86 mm
• Width: 104 mm
• Height: 191 mm
• Weight: 2.4 kg
• Number of Poles: 3 Pole
• Interrupt Rating: 25, 65, 100 kAIC
• Operating Temperature: 40 Degrees C
