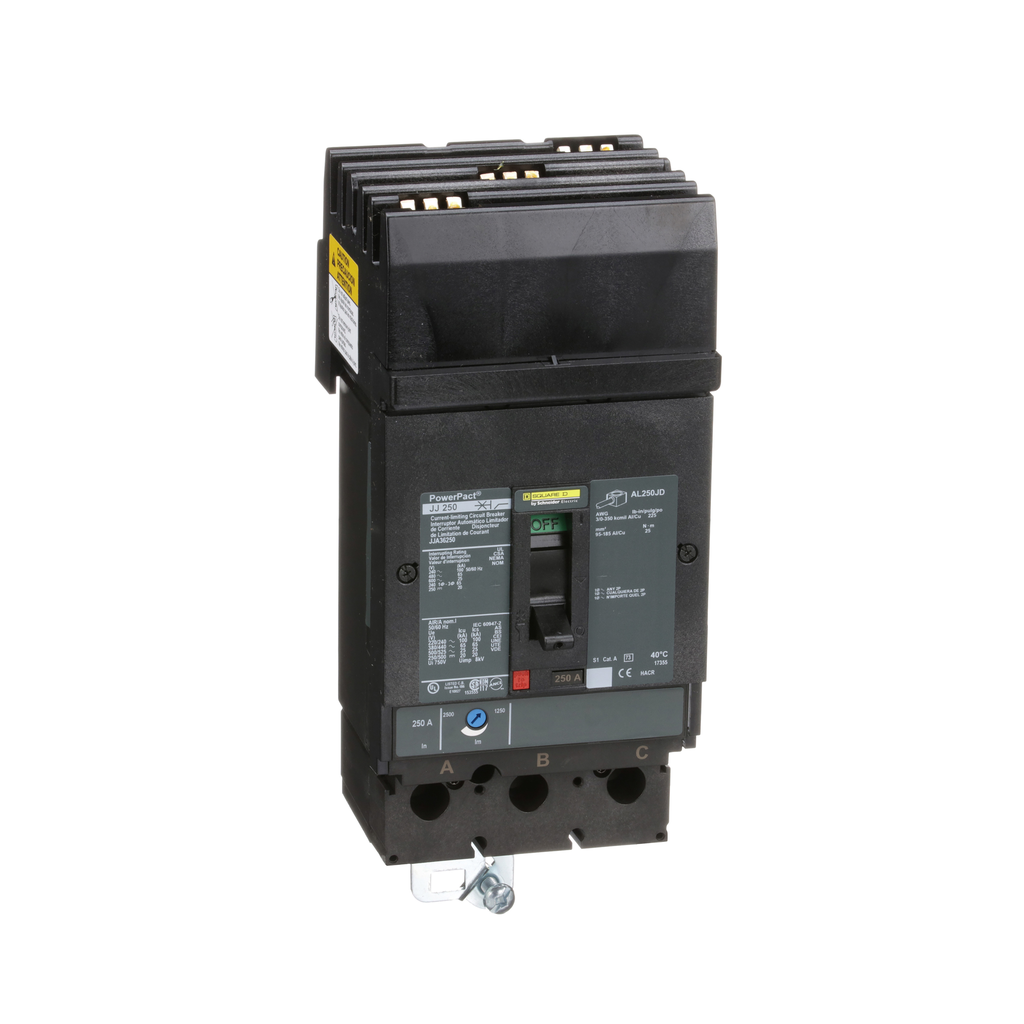

Square D JJA36250 Molded Case Circuit Breaker 600 Volt 250 Amp

Product Description

The Square D JJA36250 is a 600 Volt 250 Amp molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This circuit breaker features thermal magnetic trip protection and a breaking capacity of twenty-five kiloamperes at six hundred volts. It uses dual-break rotating contacts to minimize peak current during faults and includes an integral push-to-trip button for manual operation.

• Rated for 250 Amp continuous current
• Three pole configuration for versatile applications
• Complies with UL, CE, CSA, and IEC standards

Product Highlights

This circuit breaker is suitable for a range of installations, especially in industrial and commercial settings where reliable electrical protection is essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Type: Molded Case Circuit Breaker
• Frame: J-Frame
• Voltage: 600 VAC
• Amperage: 250A
• Interrupt Rating: 25kA
• Number of Poles: 3 Pole
• Weight: 5.29 lb
• Dimensions: 4.5 inches Height x 4.25 inches Length x 4.6 inches Width
