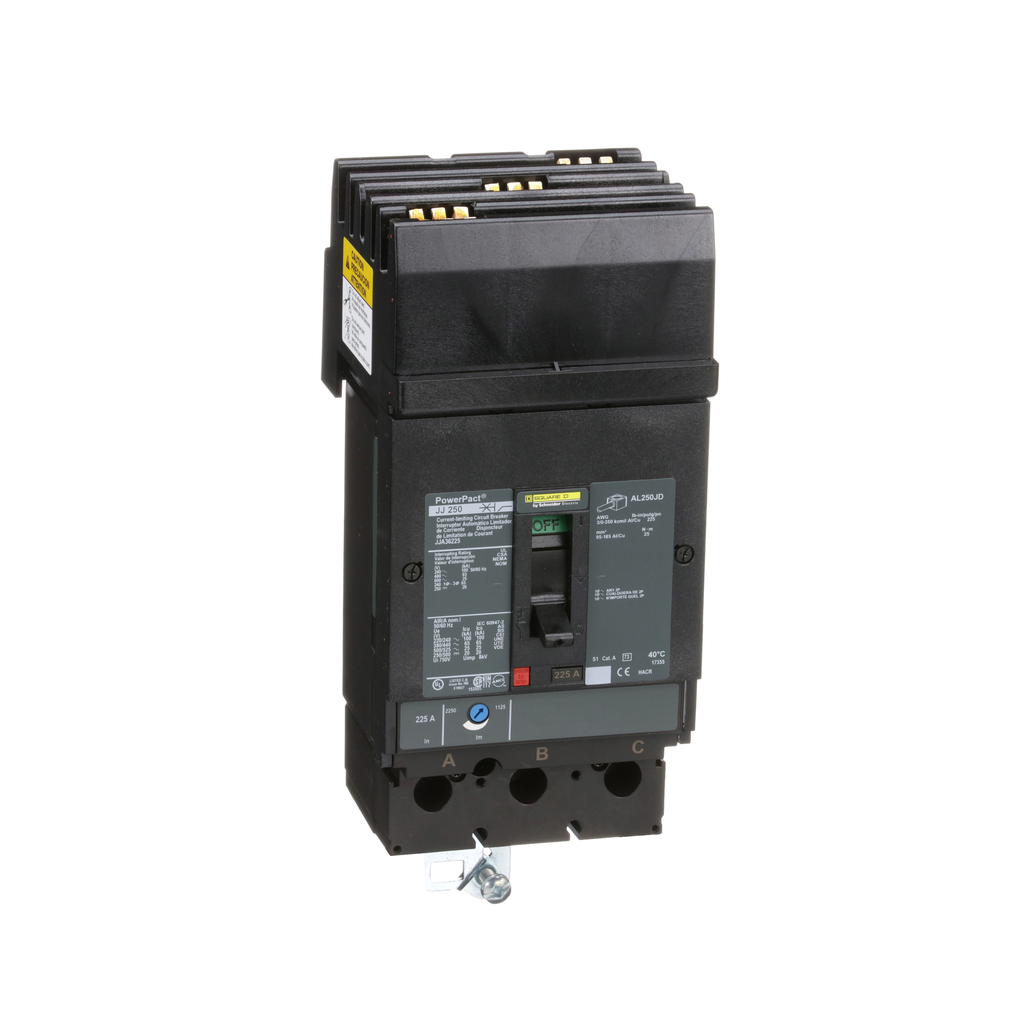

Square D JJA36225 Circuit Breaker 225 Amp PowerPacT J 600 Volt

Product Description

The Square D JJA36225 is a molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This unit has a rated capacity of 225 amps and operates at a maximum voltage of 600 volts. It features thermal magnetic trip protection, ensuring reliable operation in various conditions.

• Breaking capacity of 25kA at 600VAC
• Three poles for enhanced protection
• Integral push-to-trip button for manual operation

Product Highlights

Ideal for power distribution in commercial applications, this breaker ensures compliance with UL, CSA, NOM, and IEC standards, making it suitable for various installations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: JJA36225
• Type: Molded Case Circuit Breaker
• Voltage: 600 Volt
• Amperage: 225 Amp
• Frame Type: J-Frame
• Depth: 86 mm
• Width: 104 mm
• Height: 4.5 inches
• Breaking Capacity: 25 kA
• Trip Type: Thermal-Magnetic
• Country of Origin: Mexico
• Warranty Length: 18 months
• Certifications: UL, CSA, IEC
