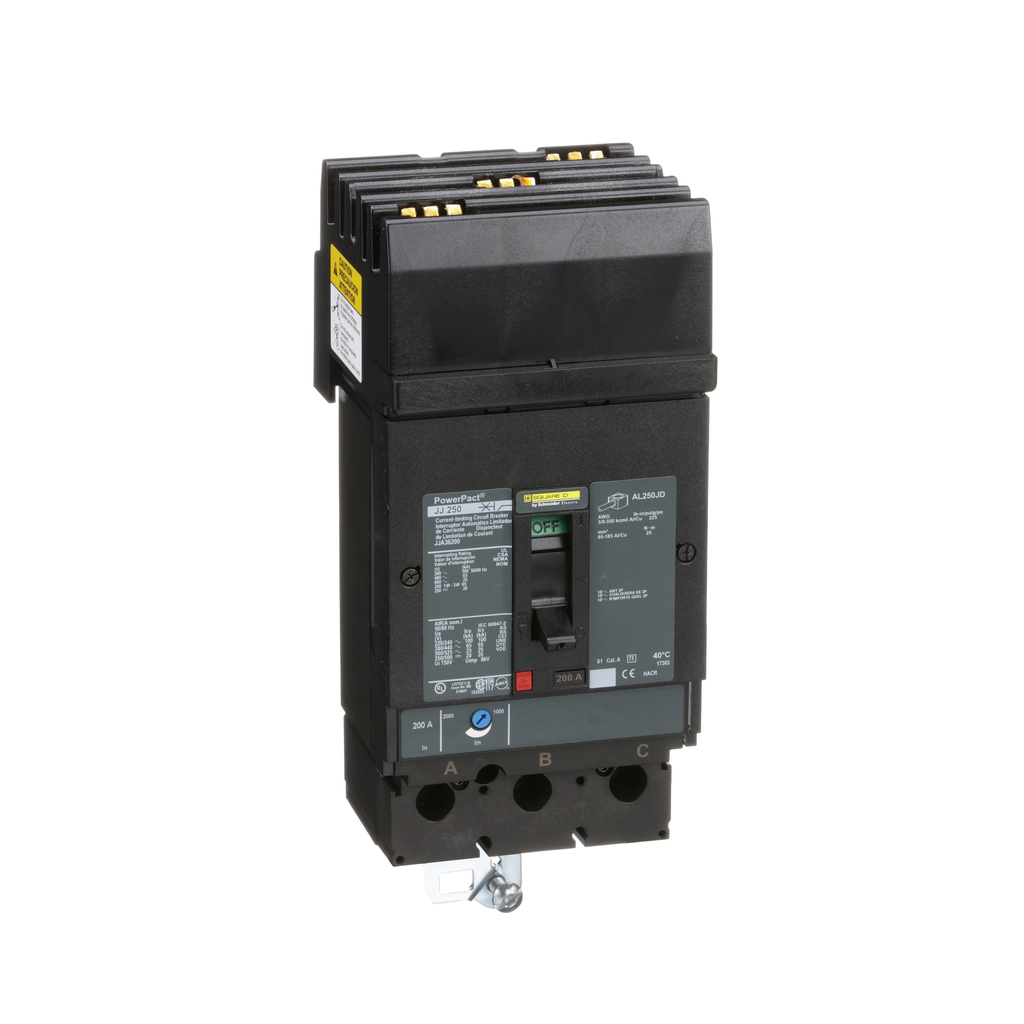

Square D JJA36200 600 Volt 200 Amp Molded Case Circuit Breaker

Product Description

The Square D JJA36200 is a 600 Volt, 200 Amp molded case circuit breaker designed for the protection of electrical systems. This breaker employs thermal magnetic trip protection and features a breaking capacity of twenty-five kA at six hundred volts alternating current. It uses dual-break rotating contacts to limit peak current during a fault.

• Thermal magnetic circuit protection
• Three-pole configuration
• Built to UL, CSA, and IEC standards

Product Highlights

Ideal for commercial and residential electrical systems, this circuit breaker provides reliable overload and short circuit protection. The device's mechanical lugs on the load side and I-Line terminations enhance installation efficiency, especially in I-Line applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Molded Case Circuit Breaker
• Frame: J-Frame
• Voltage: 600 Volt
• Amperage: 200 Amp
• Weight: 5.29 lb
• Dimensions: Width - 4.1 inches, Height - 4.5 inches, Depth - 3.39 inches
• Interrupt Rating: 25 kAIC
• Trip Type: Thermal-Magnetic
