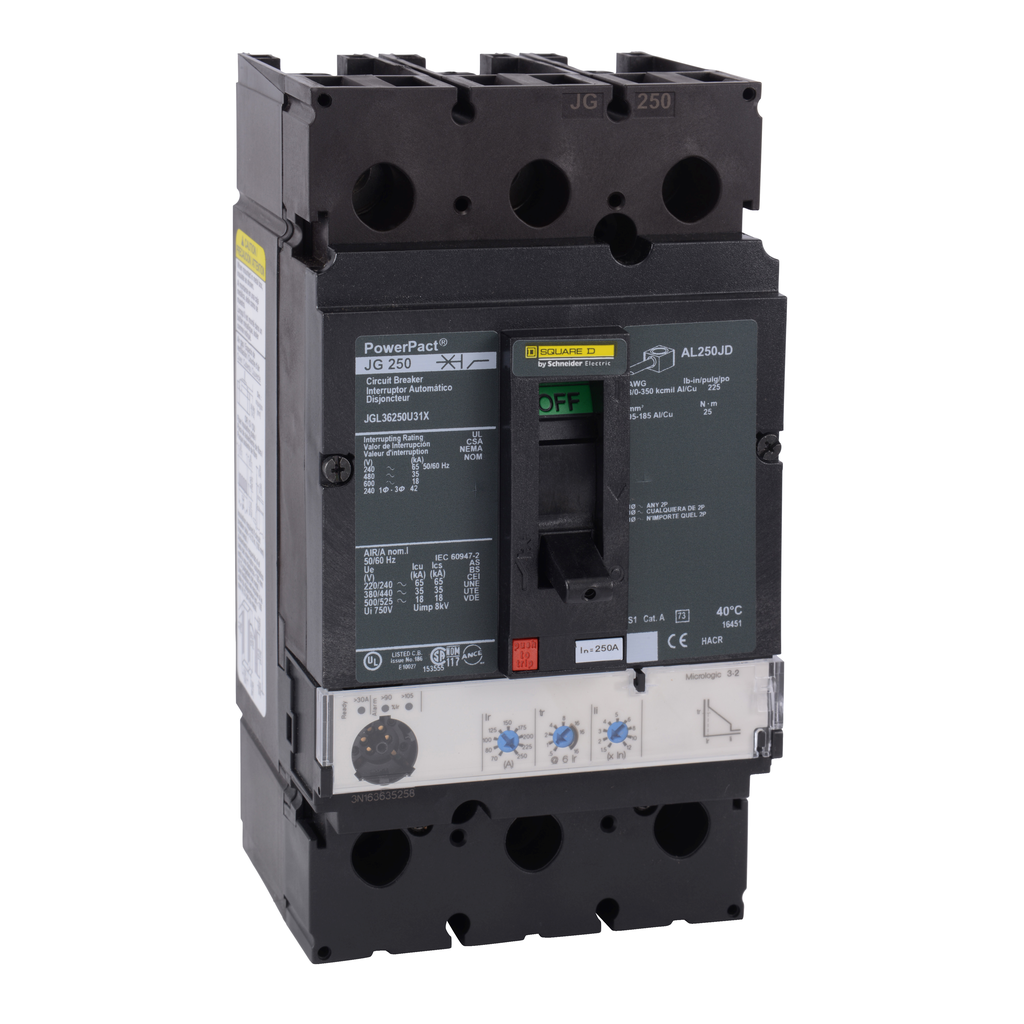

Square D JGL36250U31X 600 Volt 250 Amp Molded Case Circuit Breaker

Product Description

The Square D JGL36250U31X is a molded case circuit breaker designed to protect electrical systems from damage due to overloads and short circuits. This breaker operates at 600 volts and is rated for 250 amps. It features a Micrologic trip unit with a breaking capacity of 18kA at 600VAC and is suitable for use in various applications requiring dependable circuit protection.

• Rated for 250 amps and 600 volts
• Micrologic Standard trip unit with LI function
• Complies with UL, CSA, NOM, and IEC standards

Product Highlights

This circuit breaker is equipped with dual-break rotating contacts to minimize peak current during short circuit faults. It includes integral push-to-trip functionality for manual tripping and is available in both unit mount and I-Line constructions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: JGL36250U31X
• Voltage: 600 Volt
• Amperage: 250 Amp
• Trip Type: Electronic, standard, MicroLogic 3.2, LI
• Number of Poles: 3 Pole
• Breaking Capacity: 18kA
• Frame: G
• Width: 4.1 inches
• Height: 7.5 inches
• Depth: 3.4 inches
• Net Weight: 2.4 kg
• Country of Origin: Mexico
• Warranty Length: 18 months
