Square D JGA36250U33X SQD JGA36250U33X Circuit Breaker, P 250 Amp 3 Pole 600V

Product Description

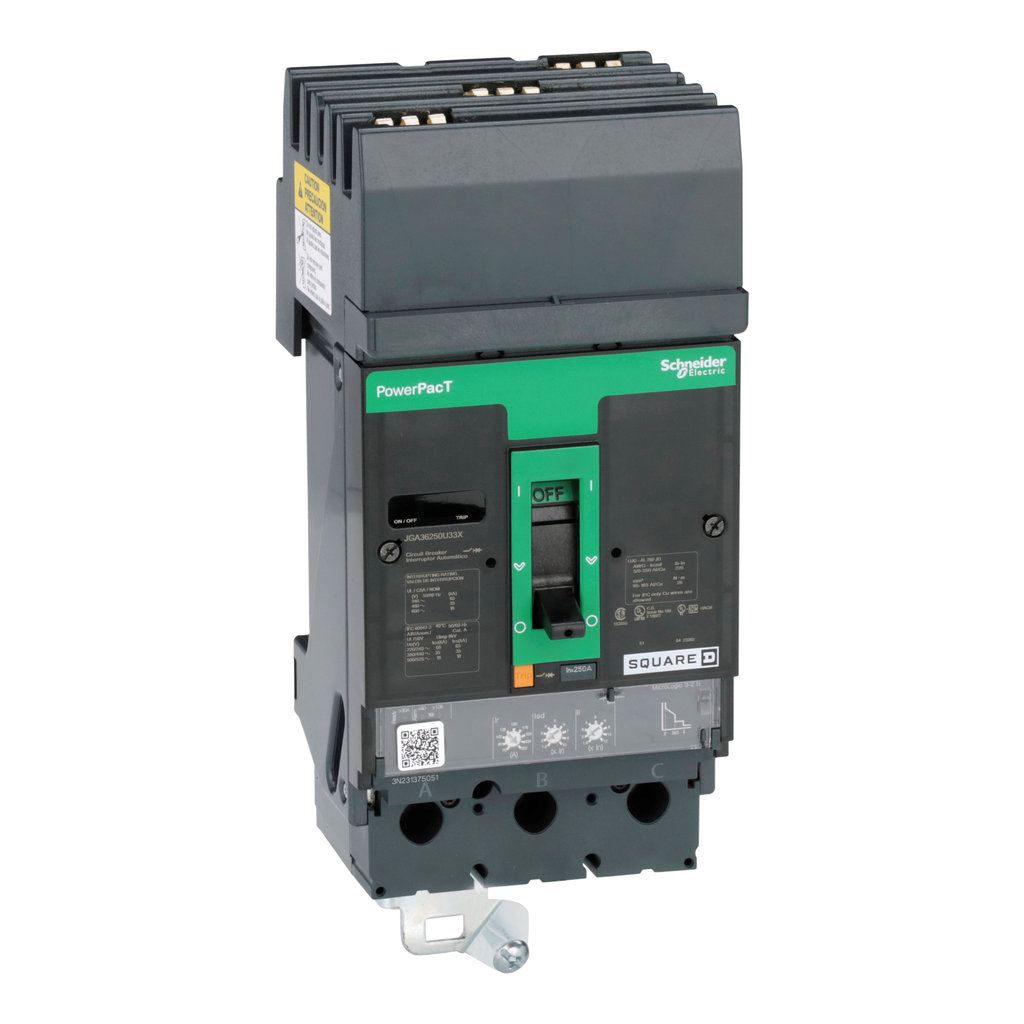

Square D JGA36250U33X is a PowerPacT J-Frame circuit breaker designed for electrical system protection against overloads and short circuits. This circuit breaker features thermal magnetic or MicroLogic electronic trip protection. The unit includes a Micrologic Standard with a three point two second trip unit and an LSI function. It has a breaking capacity of eighteen kiloamperes at six hundred volts AC. The dual-break rotating contacts help to minimize peak current during a fault. It also includes a push-to-trip button for manual tripping.

• Breaking capacity: 18kA at 600VAC
• Continuous current rating of 80% with ABC phase connection
• Meets UL, CSA, NOM, and IEC standards

Product Highlights

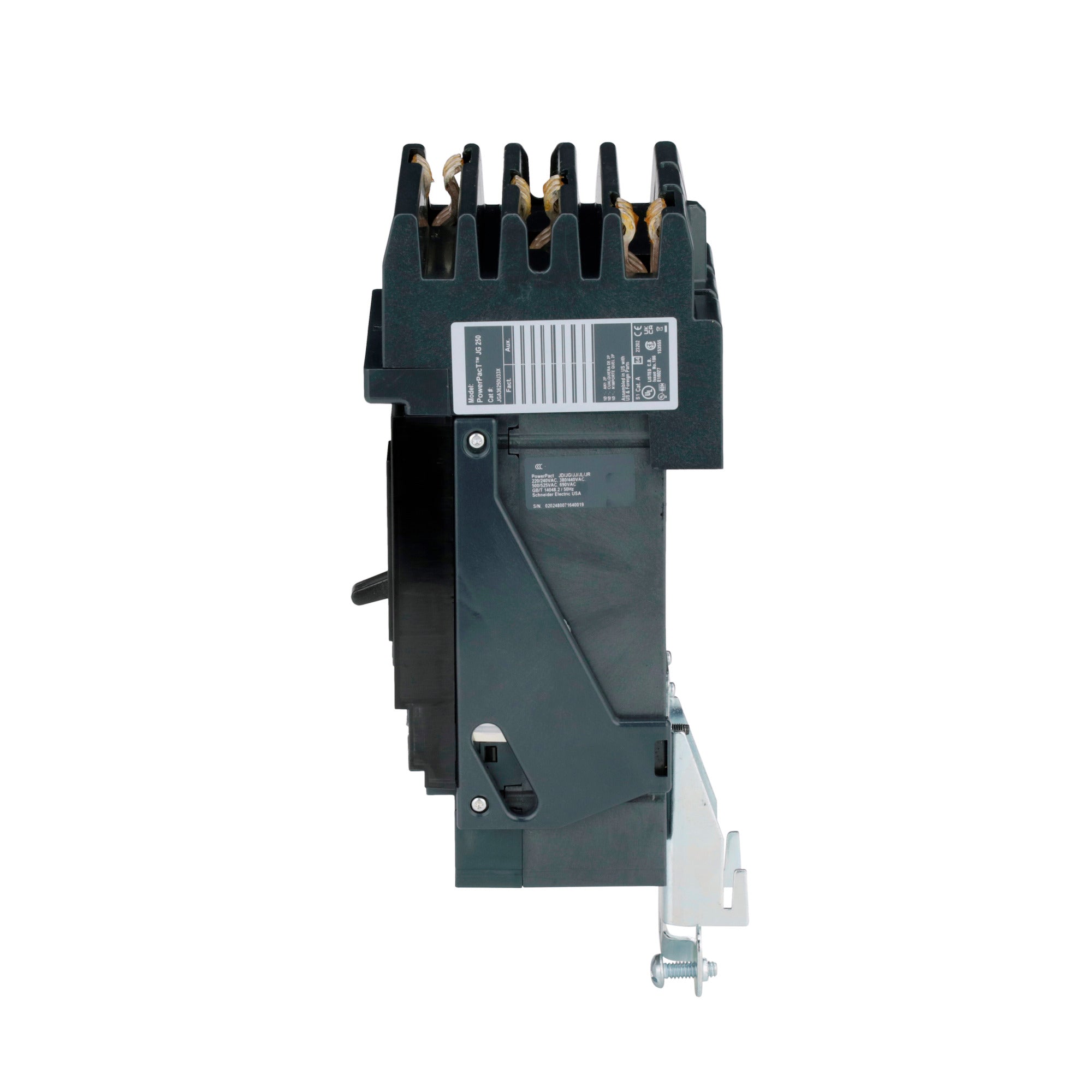

This circuit breaker supports easy installation with I-Line terminations and mechanical lugs. It is available in two and three pole configurations.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Circuit Breaker
• Voltage: 600 Volt
• Amperage: 250 Amp
• Number of Poles: 3 Pole
• Width: 4.1 inches
• Height: 4.5 inches
• Depth: 3.4 inches
• Net Weight: 2.4 kg
