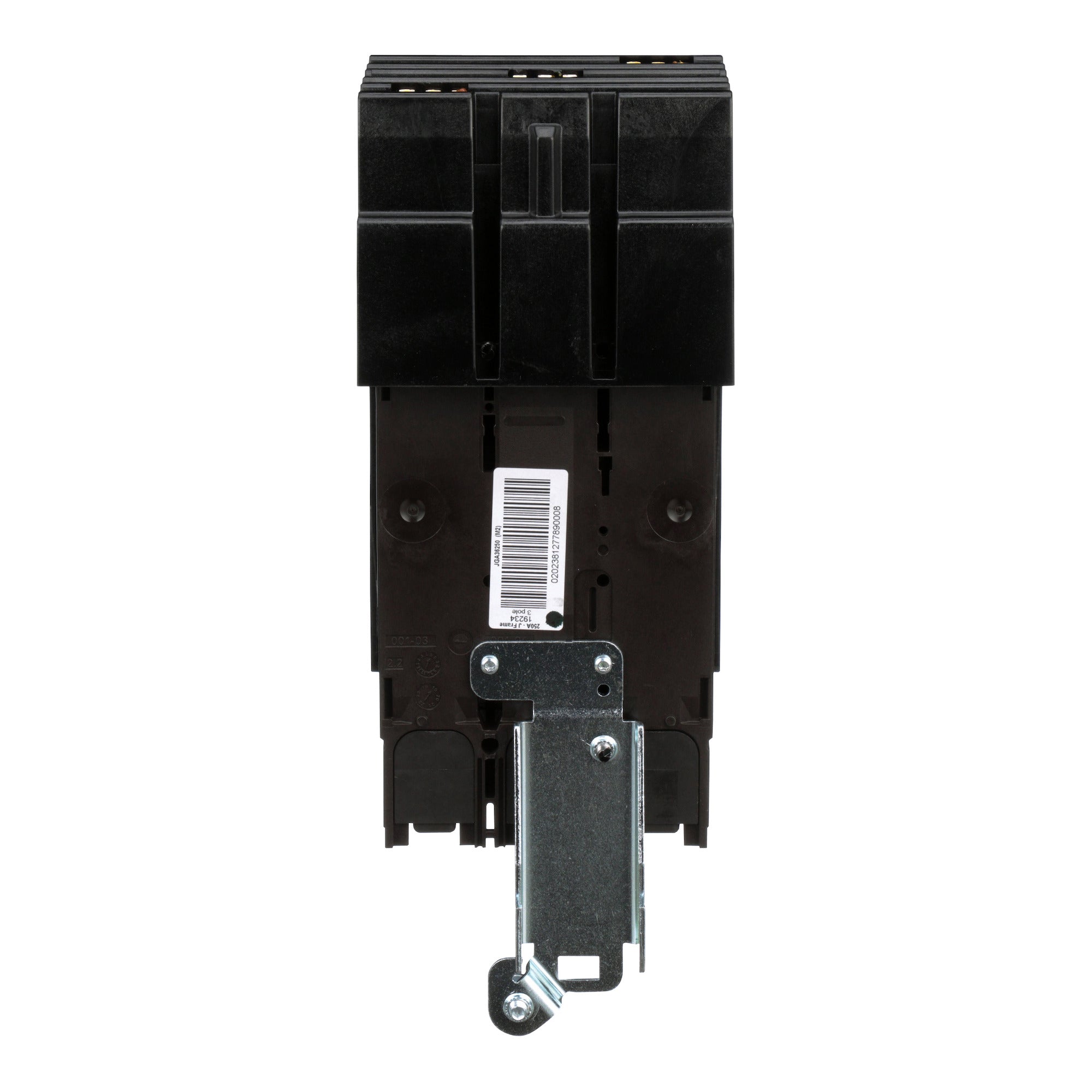

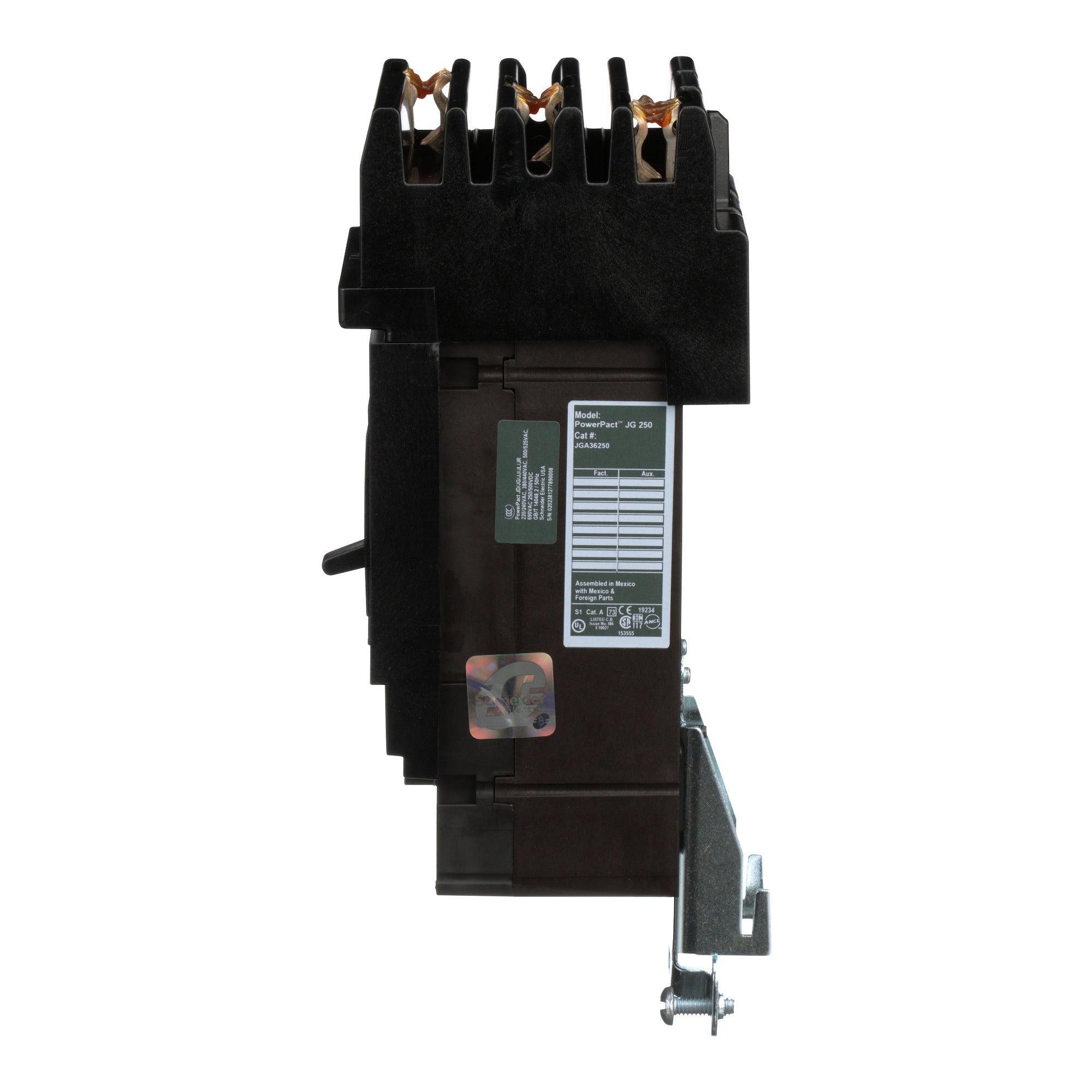

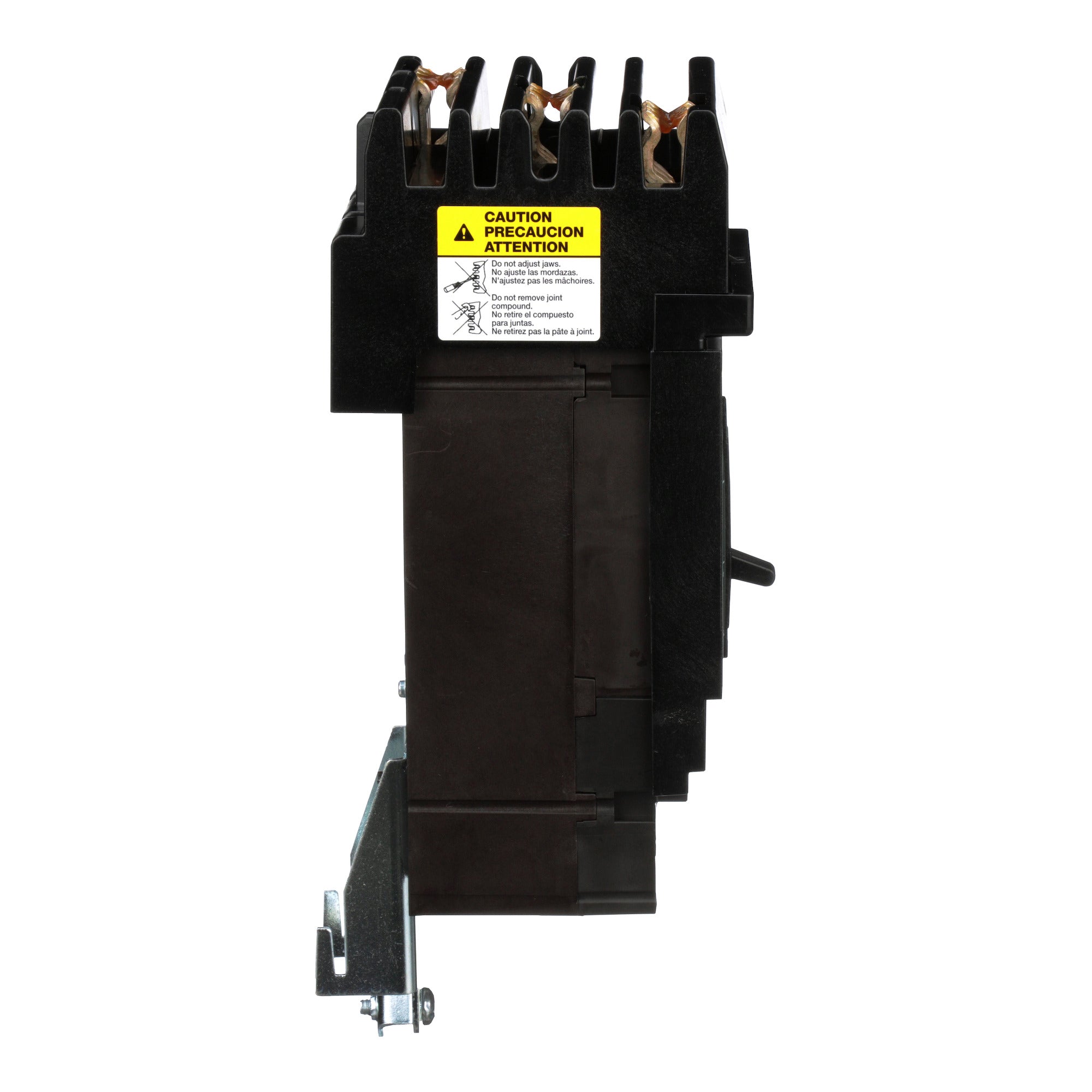

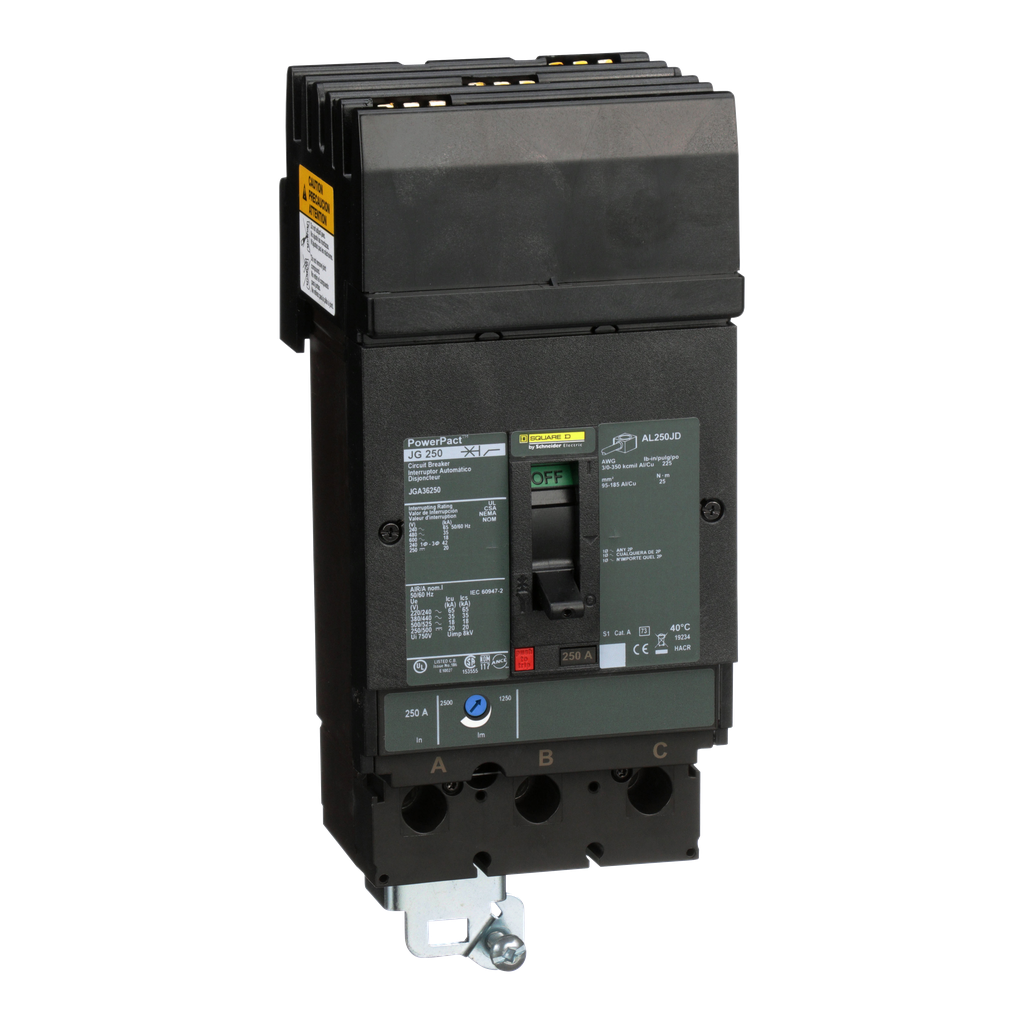

Square D JGA36250 600 Volt 250 Amp Molded Case Circuit Breaker

Product Description

The Square D JGA36250 is a 600 Volt, 250 Amp molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This breaker features thermal magnetic protection and is equipped with advanced technology to enhance circuit safety. With a breaking capacity of eighteen kiloamperes, it serves a broad range of electrical applications reliably.

• Three-pole construction for versatile installation.
• Easy installation with I-Line terminations for line side and mechanical lugs for load side.
• Integral push-to-trip feature for manual trip operations.

Product Highlights

This circuit breaker complies with UL, CSA, and IEC standards, ensuring it meets safety regulations. It is suitable for various electrical distributions and provides consistent performance across a wide temperature range.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: JGA36250
• Voltage: 600 Volts
• Amperage: 250 Amps
• Breaking Capacity: 18 kA
• Number of Poles: 3
• Mounting Type: I-Line
• Country of Origin: United States
• Trip Type: Thermal-magnetic
• Warranty Description: 18 months
