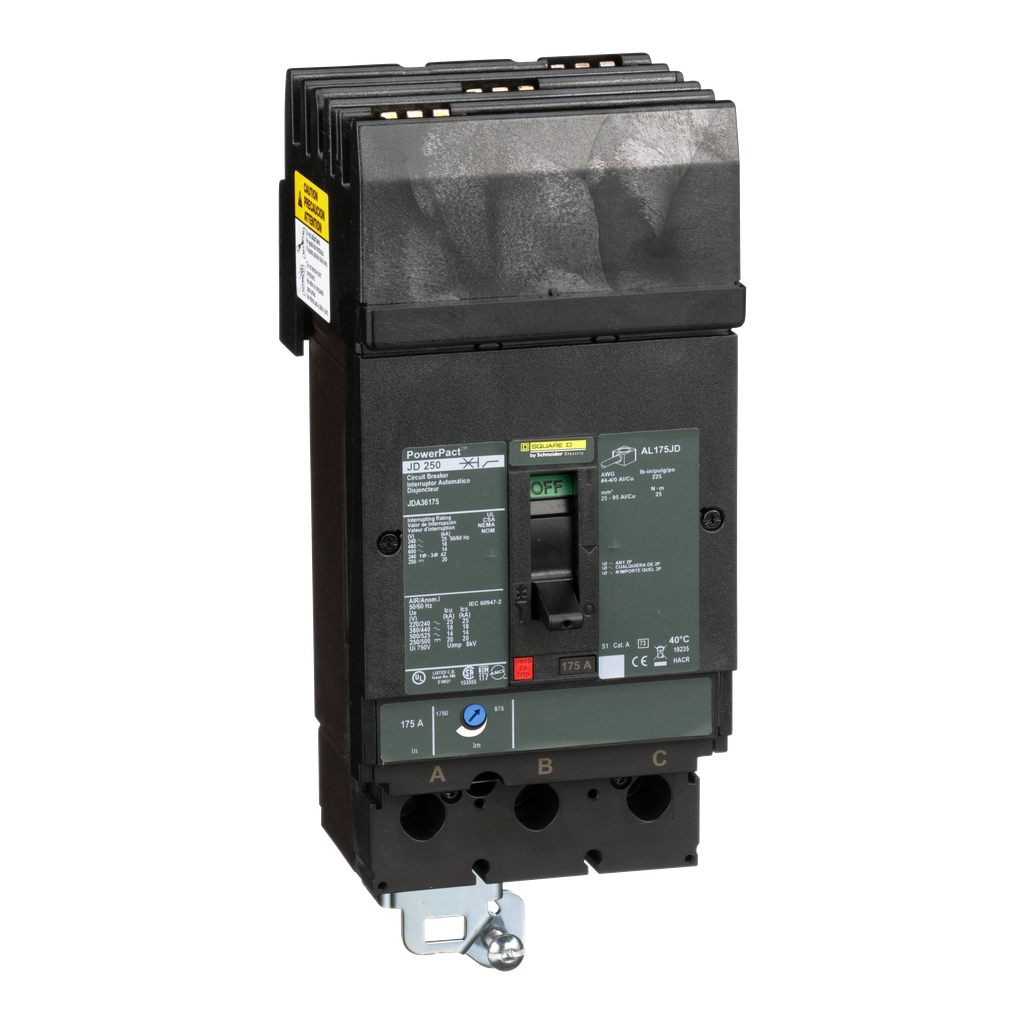

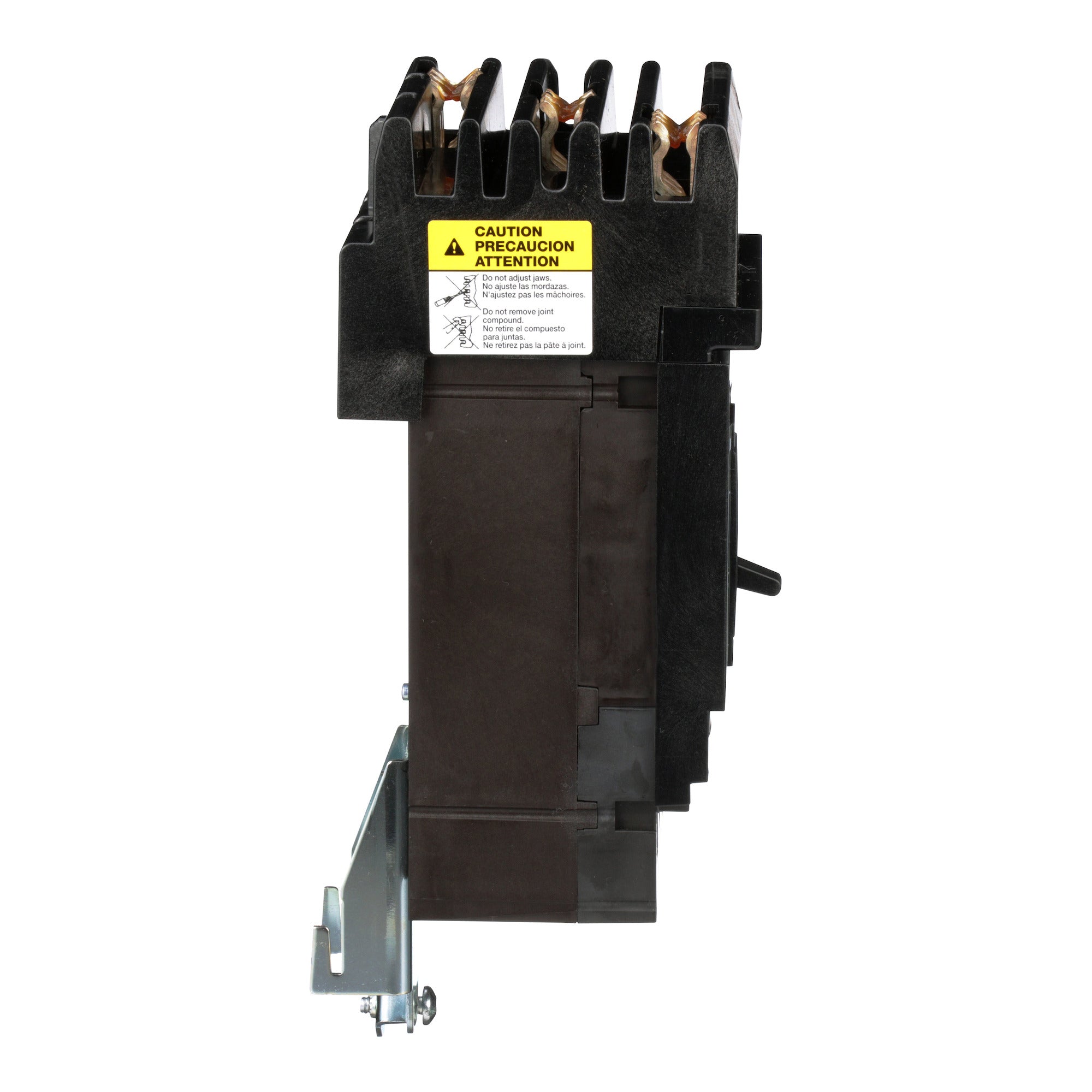

Square D JDA36175 3-Pole 175 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Product Description

The Square D JDA36175 is a 3-pole, 175 amp, 600 volt thermal magnetic molded case circuit breaker. Designed for the protection of electrical systems, this circuit breaker features thermal magnetic trip protection with a breaking capacity of 14kA at 600VAC. It is equipped with dual-break rotating contacts which mitigate peak current during short circuit events. These units include a push-to-trip button for manual operation and can be easily mounted in both unit mount and I-Line configurations. This breaker is ideal for various applications requiring overload and short circuit protection.

• 3 pole configuration for increased protection
• Breaking capacity of 14kA at 600VAC
• Dual-break rotating contacts for enhanced response to faults

Product Highlights

This circuit breaker complies with UL, CSA, NOM, and IEC standards, ensuring reliability and safety in power distribution applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: JDA36175
• Frame Type: J-Frame
• Voltage: 600 VAC
• Amperage: 175 Amp
• Trip Type: Thermal-Magnetic
• Interrupt Rating: 14, 18, 20, 25 kAIC
• Width: 4.13 inches
• Height: 4.5 inches
• Depth: 3.39 inches
• Net Weight: 2.4 kg
