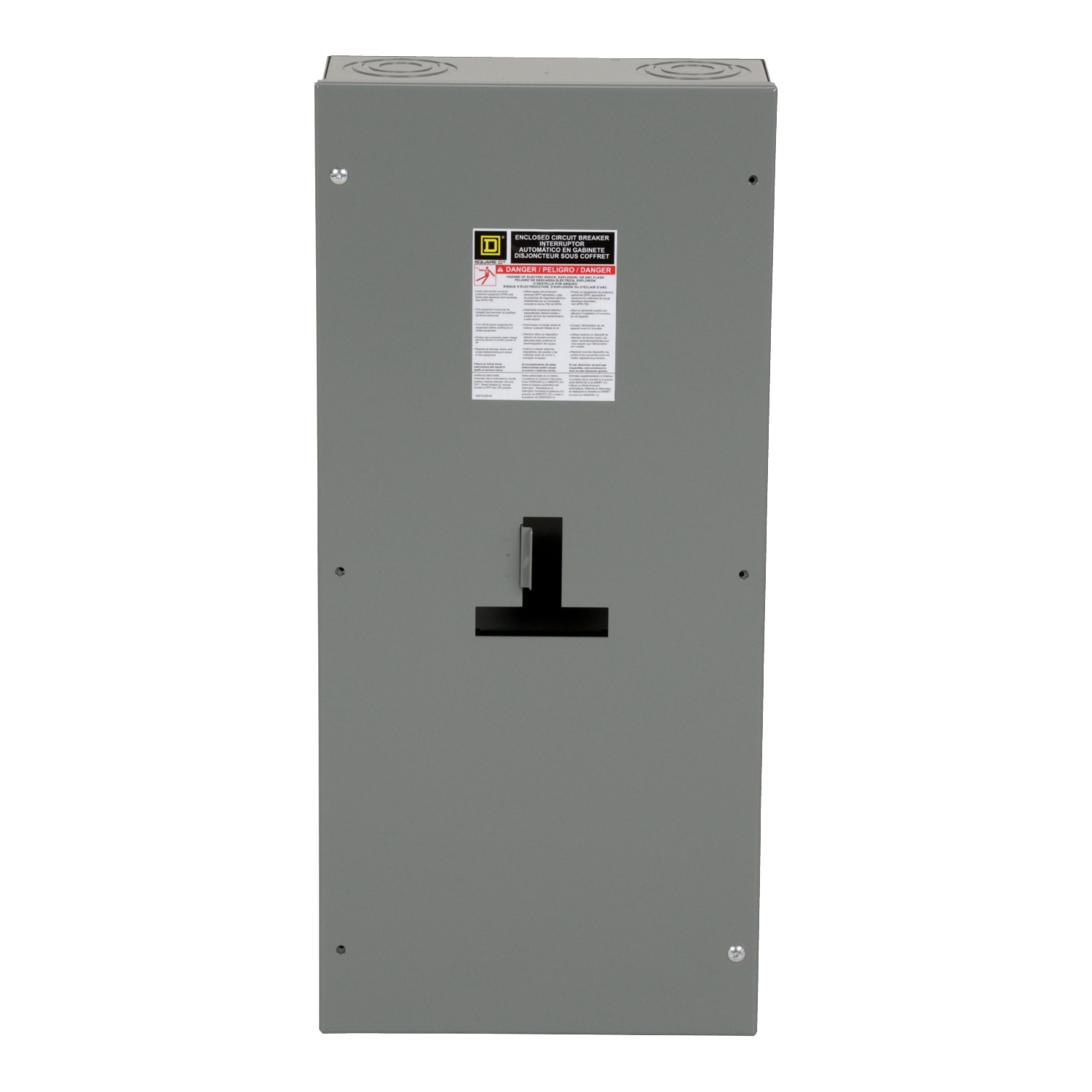

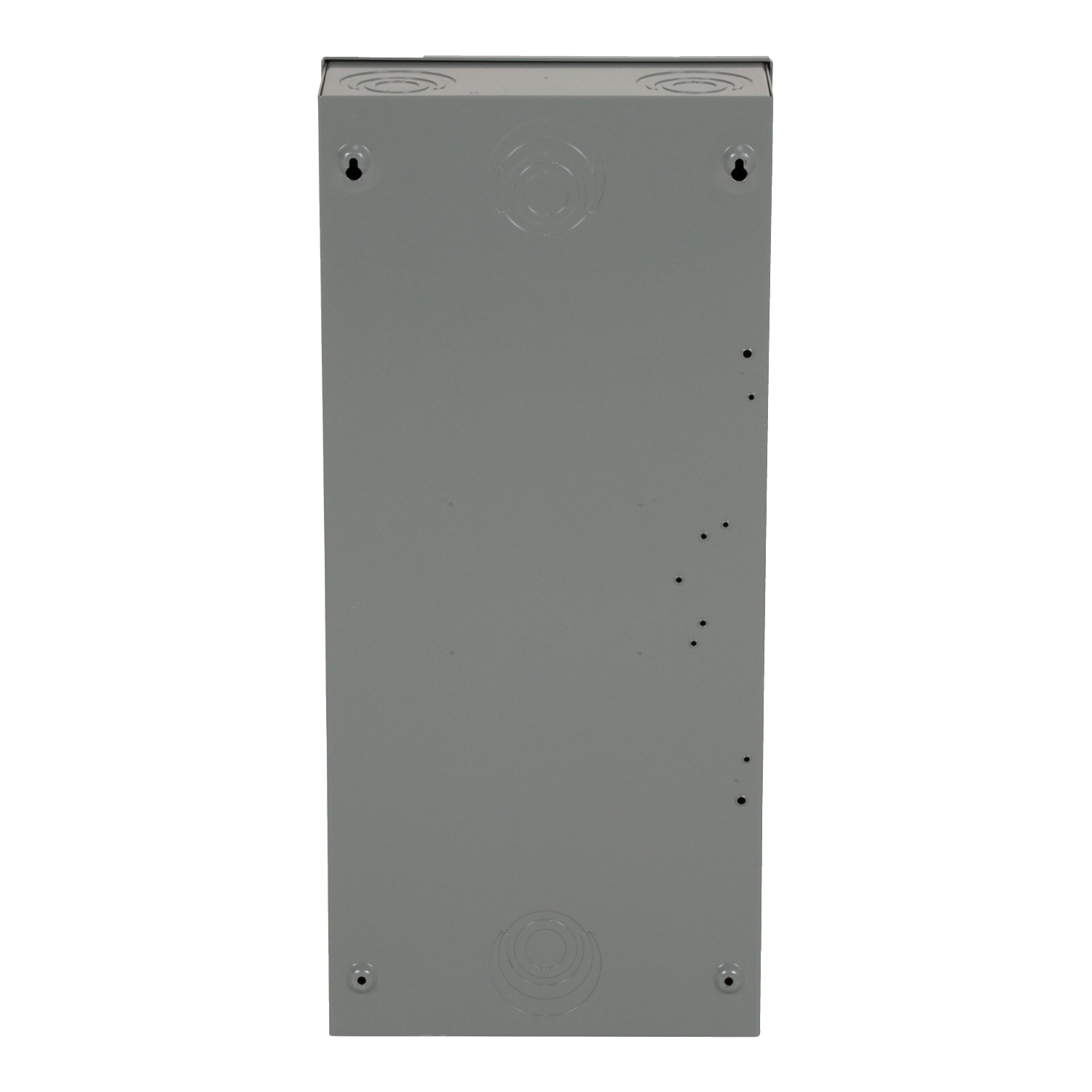

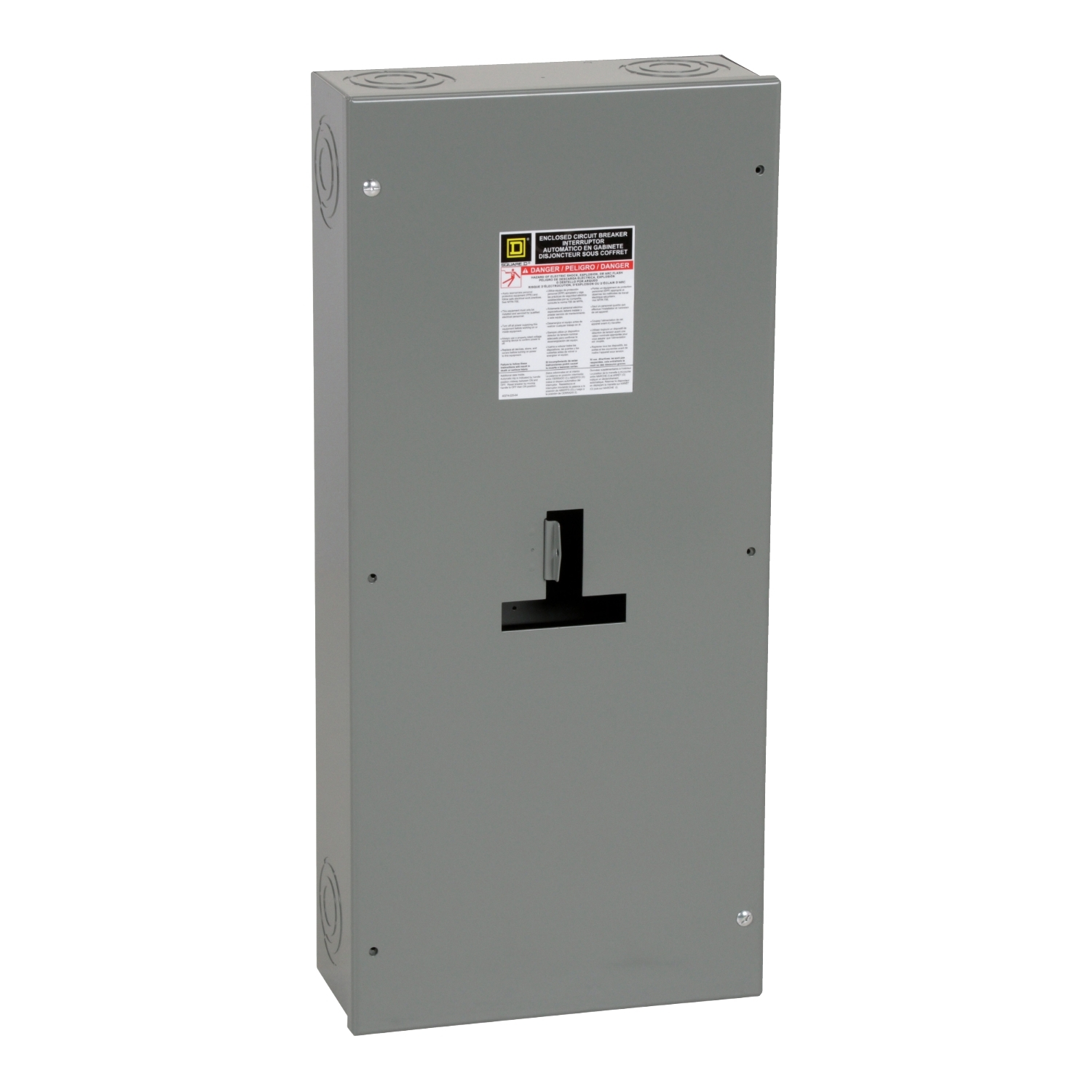

Square D J250S NEMA 1 Circuit Breaker Enclosure 15/250 Amp

Product Description

This Square D J250S NEMA 1 Circuit Breaker Enclosure is designed for H-Frame and J-Frame circuit breakers rated from 15 to 250 amps. The enclosure is suitable for service entrance equipment when a neutral assembly is installed. It supports short circuit current ratings equivalent to the circuit breakers installed. This enclosure is not compatible with earth leakage or ground fault modules.

• Accepts 80% or 100% rated circuit breakers.
• Designed for indoor use with a NEMA 1 rating.
• Constructed of durable powder-coated steel for long-lasting use.

Product Highlights

The enclosure features a compact design while accommodating multiple circuit breakers, making it ideal for various electrical installations and applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: J250S
• Width: 14.36 inches
• Height: 31.36 inches
• Depth: 6 inches
• Material: Steel
• Enclosure Type: NEMA 1
• Electrical Ratings: 15 to 250 Amps
• Country of Origin: United States
