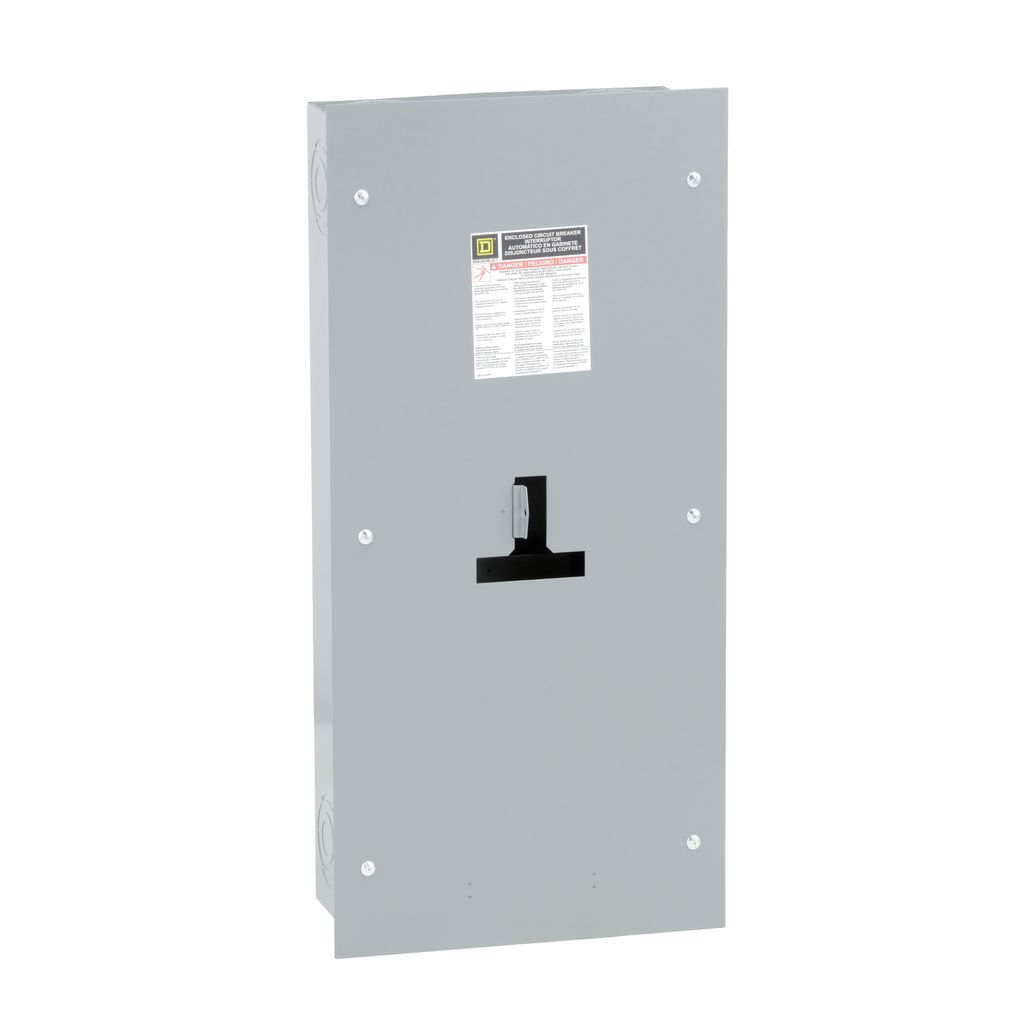

Square D J250F Circuit Breaker Enclosure 15-250 AMP NEMA 1

Product Description

The Square D J250F Circuit Breaker Enclosure is suitable for H-Frame and J-Frame circuit breakers rated from 15A to 250A. It is designed to accept both 80% and 100% rated circuit breakers, following necessary wiring sizing requirements. This enclosure can be used as service entrance equipment with the proper neutral assembly. It is a NEMA 1 flush mount enclosure, finished with gray baked enamel.

• Compatible with H-Frame and J-Frame circuit breakers from 15A to 250A.
• NEMA 1 enclosure designed for indoor applications.
• Accepts 80% or 100% rated circuit breakers with correct wiring sizing.

Product Highlights

This enclosure is built for reliability and easy installation in various applications including residential and commercial settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: J250F
• Depth: 6 inches
• Width: 15.42 inches
• Height: 32.5 inches
• Amperage: 15-250 Amp
• Enclosure Type: NEMA 1
• Warranty Length: 18 months
• Country of Origin: United States
