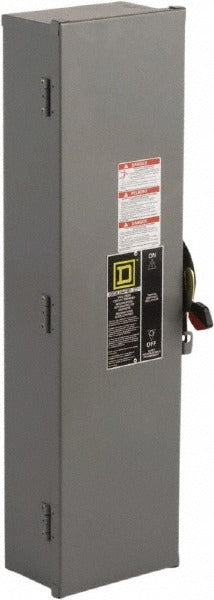

Square D J250AWK Circuit Breaker Enclosure 15-250A

Product Description

The SQUARE D J250AWK is a circuit breaker enclosure designed to house and protect H Frame and J Frame circuit breakers rated from 15 to 250 amps. Built for electrical distribution applications, this enclosure provides a secure mounting and protective housing for the breaker assembly, keeping internal components shielded from contact and environmental exposure. At 32.8 inches in length, 9.6 inches in width, and 8 inches in height, it accommodates the physical footprint of full-frame molded case breakers. Electricians and electrical contractors install this enclosure in commercial, industrial, and residential service applications where a standalone breaker enclosure is required.

This enclosure is suited for use in panelboard, switchboard, and disconnect applications where an H Frame or J Frame molded case circuit breaker needs a dedicated enclosure. It is appropriate for new installations and replacement service work. The size range of 15 to 250 amps covers a wide range of branch and feeder circuit applications, making it a practical fit for both light commercial and heavier industrial electrical systems.

Key Features

• Compatible with 15-250A H Frame and J Frame circuit breakers
• Enclosure dimensions: 32.8 inches length, 9.6 inches width, 8 inches height
• Provides protective housing for molded case circuit breaker assemblies
• Supports a broad amperage range from 15 to 250 amps
• Sold individually as a single-unit package

Compatibility

Designed for use with 15-250A H Frame circuit breakers and 15-250A J Frame circuit breakers as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before mounting or wiring the enclosure. Ensure the breaker frame type and ampere rating match the enclosure specifications before installation. Proper grounding and conduit entry must be completed per NEC requirements.
