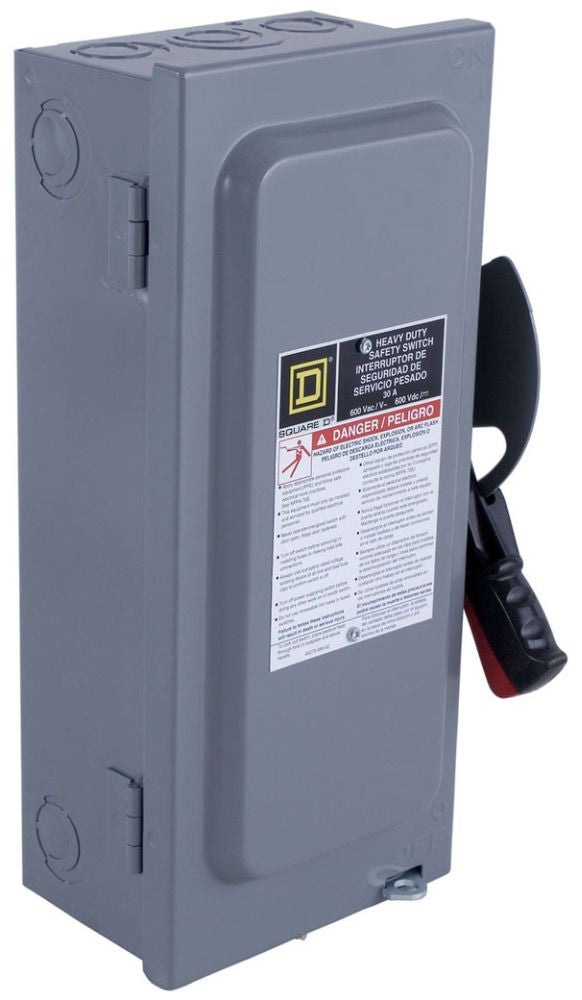

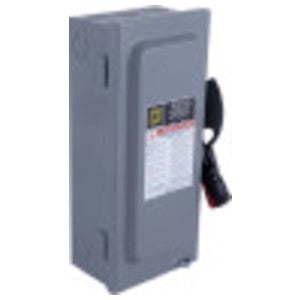

Square D HU463 Switch Not Fusible Heavy Duty 600V 100A 4P NEMA1

Product Description

Square D HU463 is a heavy-duty safety switch designed for reliable operation in demanding environments. This non-fusible switch is rated for six hundred volts and one hundred amps, featuring a four-pole design suitable for a wide range of electrical applications.

• UL approved for safety and compliance
• Constructed with a durable steel enclosure
• Ideal for commercial and industrial electrical disconnect needs

Product Highlights

This switch is engineered for durability, offering a life span exceeding standard switches and ensuring high performance in electrical protection.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D

Technical Specifications

• MPN: HU463
• Current Rating: 100 Ampere
• Voltage Rating: 600 V AC/DC
• Size: 16.13 inches W x 6.85 inches D x 20.5 inches H
• Number of Poles: 4
• Number of Wires: 4
• Enclosure Type: NEMA 1
• Enclosure Material: Steel
• Fuse Provision: Non-Fusible
• Approval: UL
• AWG Range: AWG 12...AWG 1/0 aluminum, AWG 14...AWG 1/0 copper
