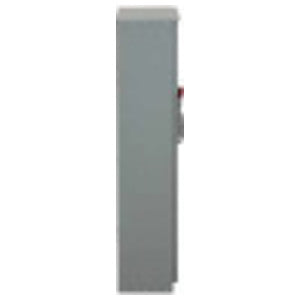

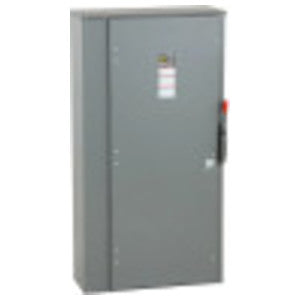

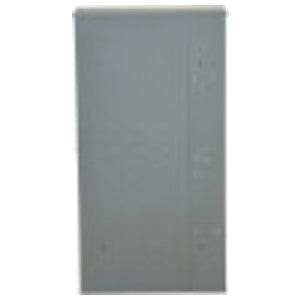

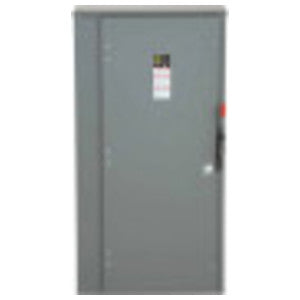

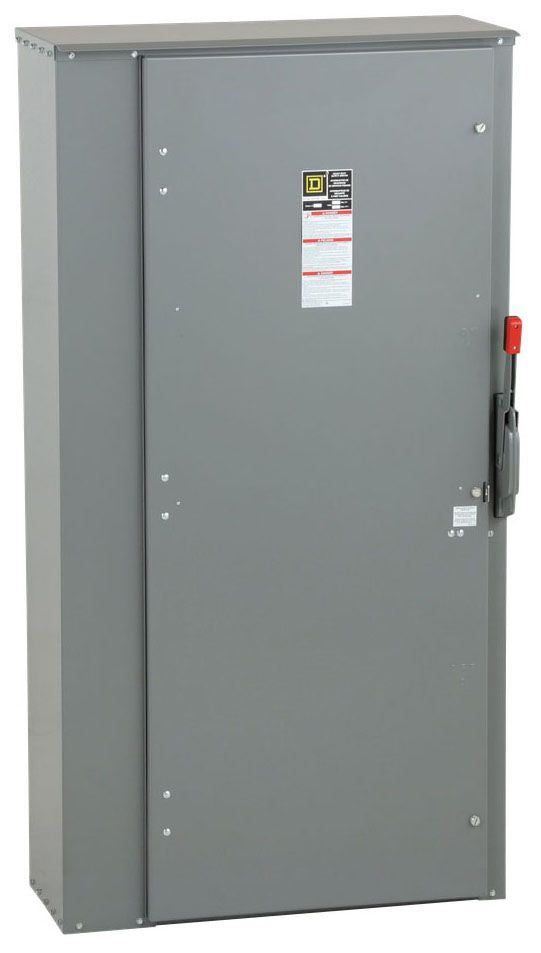

Square D HU367R Switch Nonfusible Heavy Duty 600V 800A 3P Nema3R

Product Description

The Square D HU367R is a non-fusible heavy duty switch designed for reliable electrical protection in demanding environments. This switch operates at six hundred volts and handles eight hundred amps, making it suitable for various industrial and commercial applications. It features a single throw type that provides efficient disconnection.

• UL approved safety switch.
• Constructed from robust steel with a galvannealed finish.
• Enclosure rated NEMA 3R for outdoor applications.

Product Highlights

Designed for heavy duty use, the Square D HU367R safety switch ensures optimal protection against electrical overloads. It provides reliable isolation for electrical circuits in industrial settings.

Product Information

Standard Information

• Manufacturer: Square D
• Brand: Square D Co.

Technical Specifications

• MPN: HU367R
• Current Rating: 800 Amperes
• Voltage Rating: 600 VAC / 250/600 VDC
• Number of Poles: 3
• Number of Wires: 3
• Enclosure Type: NEMA 3R
• Size: 36.62 inches W x 17.75 inches D x 69.13 inches H
• Enclosure Material: Steel
• Finish: Galvannealed
• Fuse Provision: Non-Fusible
• Approval: UL
• Power Rating: 50 HP at 240/480/600 VAC 1-Phase, 250 HP at 240 VAC 3-Phase, 500 HP at 480/600 VAC 3-Phase (Maximum), 50 HP at 250/600 VDC
• Wiring Capability: Wire size 3/0 AWG to 750 KCMIL (Copper/Aluminum)
• Model: E4
• Catalog Number: HU367R
