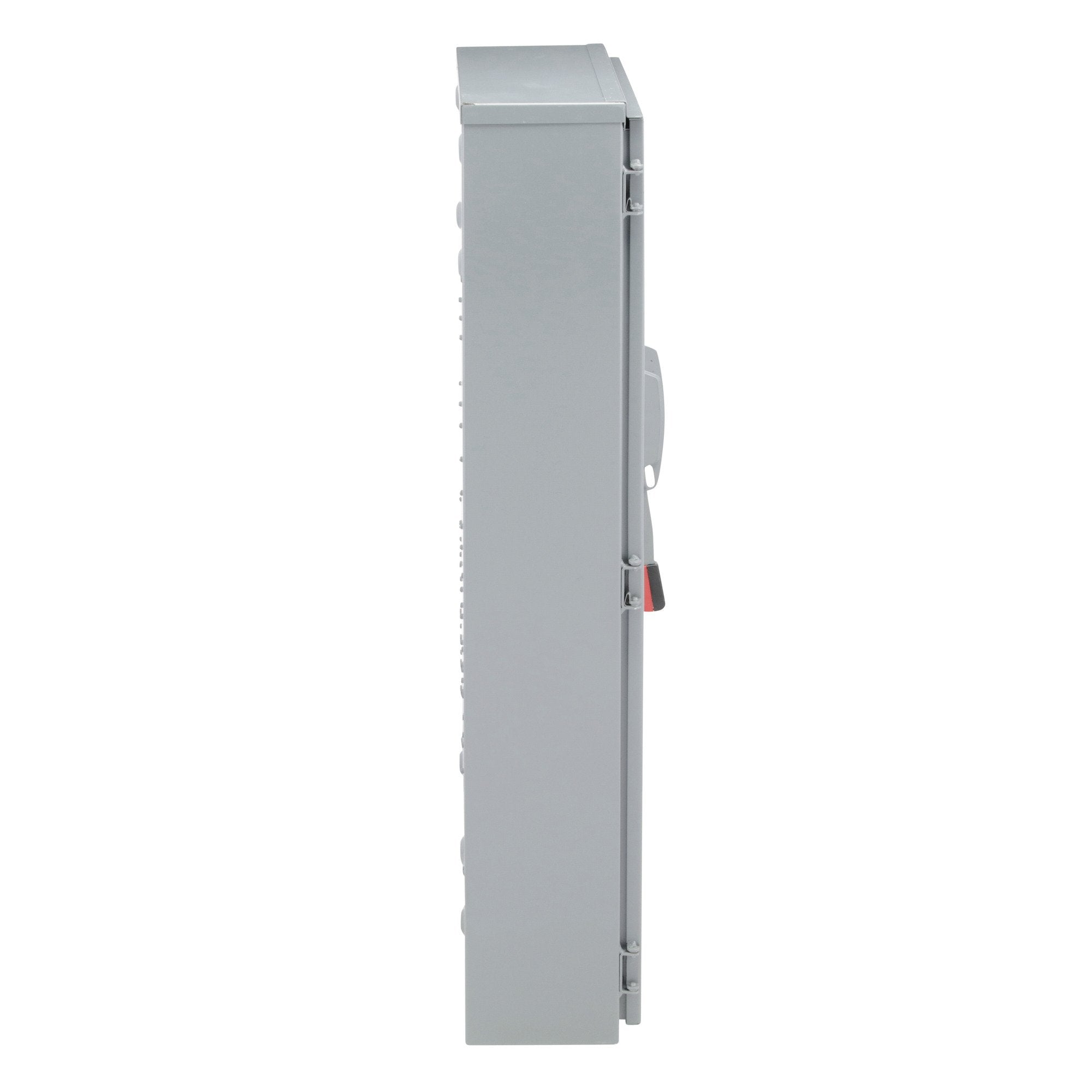

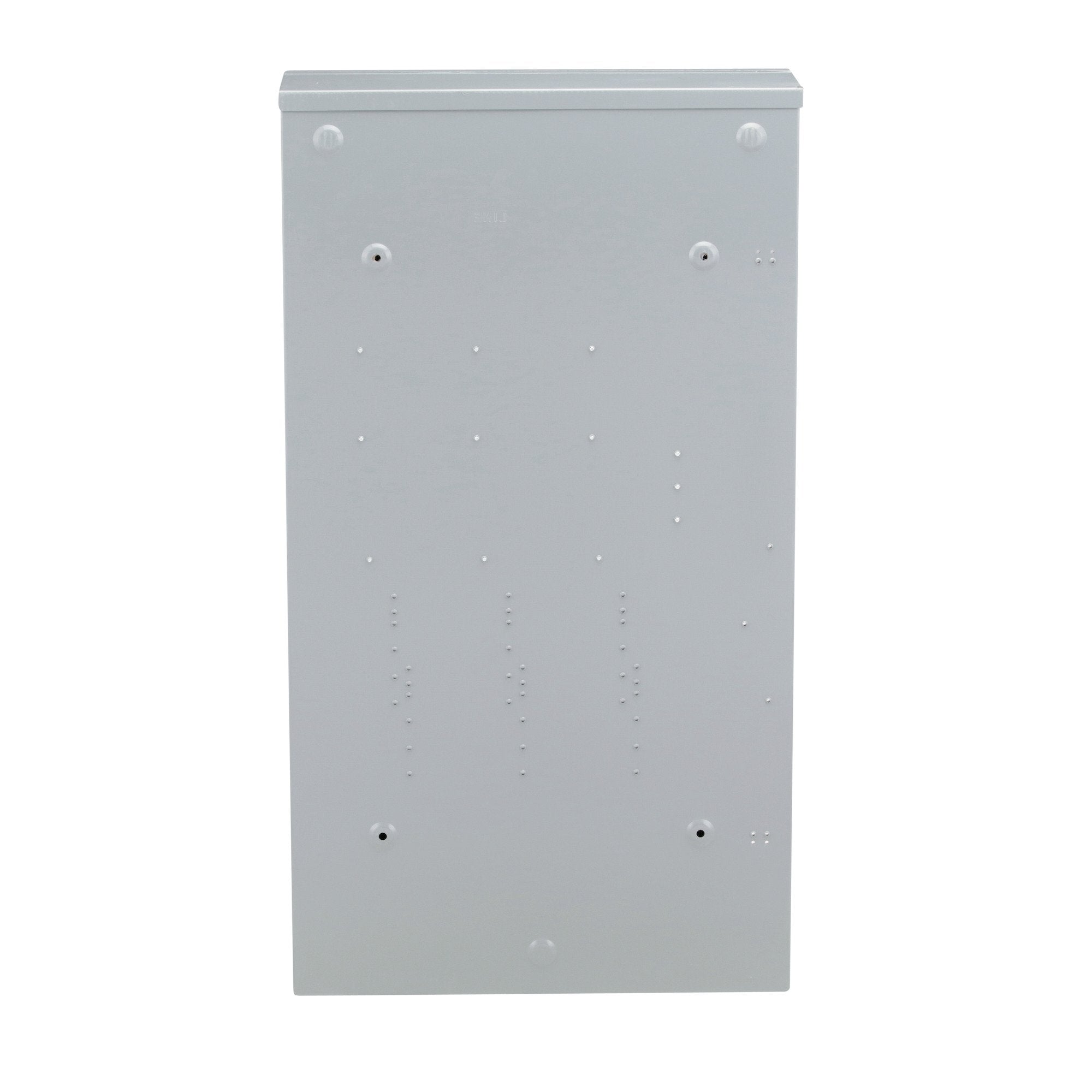

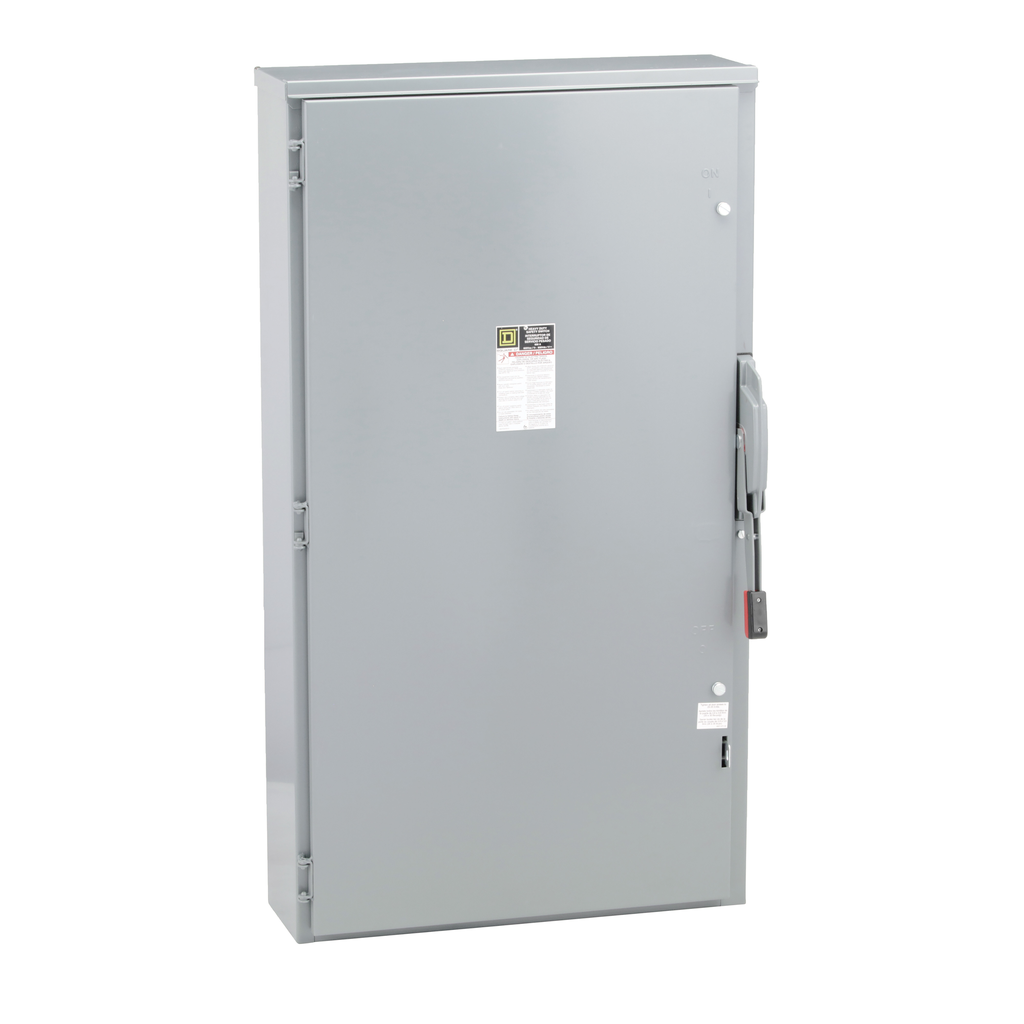

Square D HU366R Safety Switch 600 VAC 600 Amp 3-Pole Non-Fusible Switch

Product Description

The Square D by Schneider Electric HU366R is a safety switch designed for heavy-duty applications. This non-fusible disconnect has a current rating of six hundred amps and operates at six hundred volts alternating current or direct current. The enclosure is made of steel and rated NEMA three R. Its surface-mount design simplifies installation in various settings.

• Rated for six hundred amps with three poles
• UL listed and NEMA three R rated
• Constructed from galvannealed steel for durability

Product Highlights

This switch ensures reliable safety in electrical applications. It features a quick-make, quick-break mechanism for performance. An interlock mechanism and color-coded handle enhance user safety and operational awareness.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HU366R
• Current Rating: 600 Amp
• Voltage Rating: 600 Volt
• Type: Non-Fusible Disconnect
• Enclosure Material: Steel
• Height: 50.31 inches
• Width: 27.88 inches
• Depth: 10.13 inches
• Weight: 195.11 lb
• Short Circuit Current Rating: 200 kA
• Application Type: Heavy Duty
• Country of Origin: United States
• Warranty: 18 months
