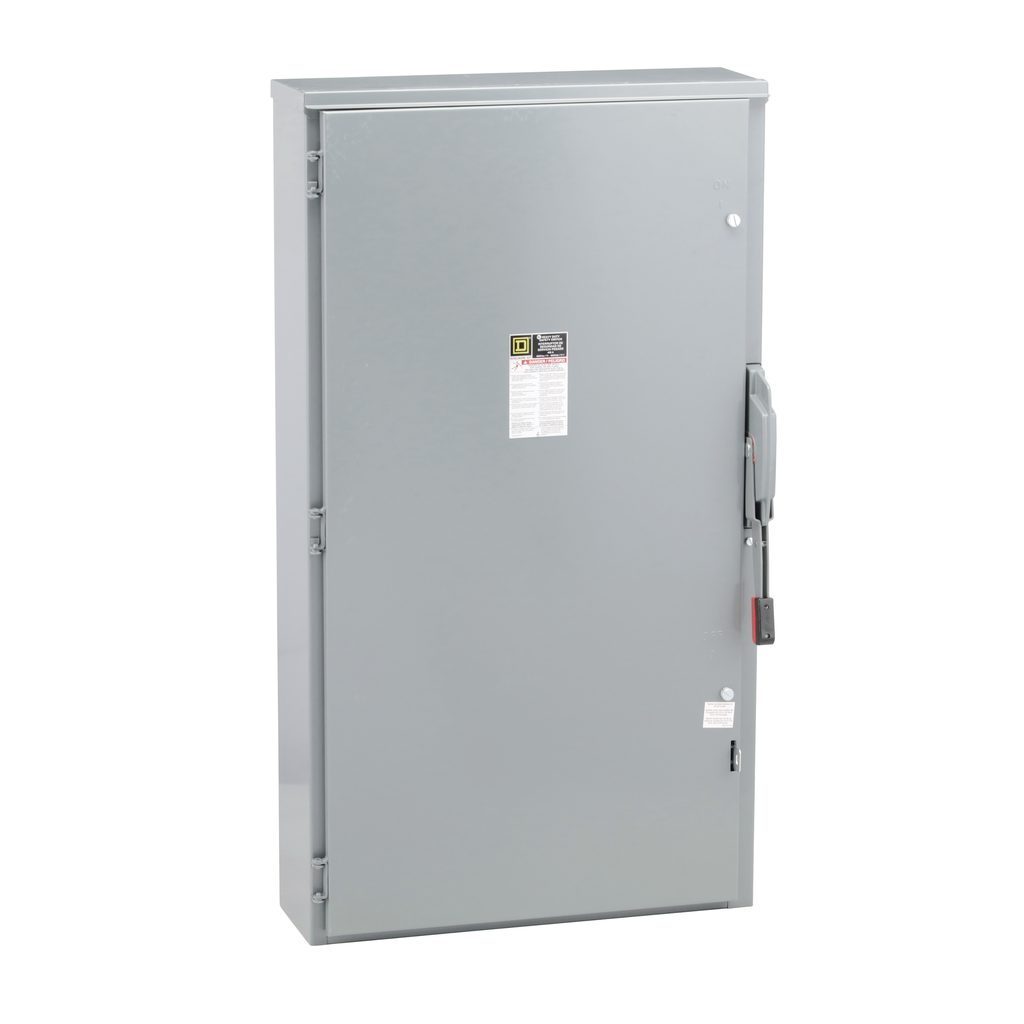

Square D HU365R Safety Switch 400 Amp 600 VAC 3 Pole Non-Fusible Heavy Duty

Product Description

The Square D by Schneider Electric HU365R is a heavy-duty safety switch that operates at 400 Amps. It is designed for harsh environments, meeting or exceeding the mechanical endurance requirements of NEMA KS-1 and UL98 standards. The switch features a quick-make, quick-break mechanism and has dual cover interlocks for safety. Rated for 600 VAC/DC, this switch is UL listed and ideal for various heavy-duty applications.

• Rated for 400 Amps, 600 VAC/DC
• 3-pole configuration for enhanced electrical efficiency
• Surface-mounted and constructed from steel for durability

Product Highlights

This safety switch is a reliable choice for facilities needing a robust disconnect solution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HU365R
• Current Rating: 400 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3 Pole
• Enclosure Type: 3R
• Short Circuit Current Rating: 200 kA
• Dimensions: 10.13 inches (depth) x 27.88 inches (width) x 50.31 inches (height)
• Material: Steel
• Wire Size: AWG 1/0 to 750 kcmil copper or aluminum
• Warranty: 18 months
• Country of Origin: Mexico
