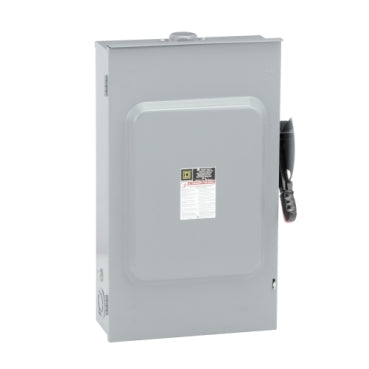

Square D HU364RBVW Safety Switch 600 VAC 200 Amp 3-Pole Non-Fusible Heavy Duty

Product Description

The Square D HU364RBVW is a heavy-duty safety switch capable of handling up to 600 VAC with a current rating of 200 Amps. This three-pole non-fusible switch is designed for applications where safe disconnection of power is necessary. It is suitable for use in both indoor and outdoor environments, thanks to its NEMA 3R enclosure rating.

• 200 Amp current rating and 600 Volt operating voltage
• Constructed from durable steel for long-lasting use
• Suitable for 3-phase systems and rated for heavy-duty applications

Product Highlights

This safety switch features a viewing window for easy status checks and a bolt-on hub for secure connections. It is compliant with UL standards, ensuring safety and reliability in power distribution systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HU364RBVW
• Current Rating: 200 Amp
• Voltage Rating: 600 Volt
• Number of Poles: 3 Pole
• Enclosure Type: NEMA 3R
• Material: Steel
• Dimensions: 8.5 in (Depth) x 18.63 in (Width) x 29.25 in (Height)
• Wire Size: AWG 6...250 kcmil
• Phase Type: 3 Phase
• Warranty: 18 months
• Country of Origin: USA
